Numer katalogowy : AO-A868-G410S-W
Producent: SECTRON

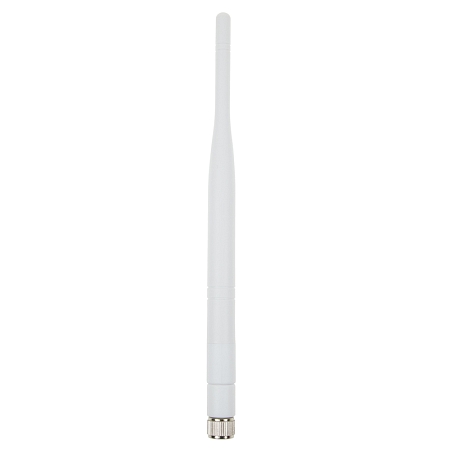

Antenna 868 MHz Connector Mount 90°/180° G410, 3 dBi, SMA(m), white

Numer katalogowy : AO-A868-G410S-W
Producent: SECTRON

Antenna 868 MHz Connector Mount 90°/180° G410, 3 dBi, SMA(m), white

Omnidirectional antenna designed to receive ISM / ZigBee / LoRa / SigFox signal. The antenna operates in the 868 MHz.

21.70 PLN (4.92 €) z VAT (23%) / szt.

bez VAT 17.93 PLN / szt.

Zapytani
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional antenna 868 MHz, White

Omnidirectional articulated antenna with SMA (m) connector is designed to receive ISM / ZigBee / LoRa / SigFox signal. The antenna operates in the 868 MHz band and is ideal for a wide range of applications such as remote monitoring, automatic measurement, industrial control and IoT services.

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Złącze SMA(m)
Maksymalna moc wejściowa 10  W Polaryzacja Liniowy
Wykonanie Zewnętrzny Temperatura robocza -40 ~ +85  °C
Wymiary 171 x 37.5 x 12.9  mm , 195 x 12.9  mm Kierunkowość Dookólna
Szerokość pasma 8  MHz Technologia ZigBee , LoRa , Sigfox , ISM
Waga 25.14  g Zysk 3  dBi
VSWR <2.0:1 Sposób mocowania Wtyk
Orzecznictwo RoHS

21.70 PLN (4.92 €) z VAT (23%) / szt.

bez VAT 17.93 PLN / szt.
