Numer katalogowy : AW-A2458G-SRPK
Producent: SECTRON

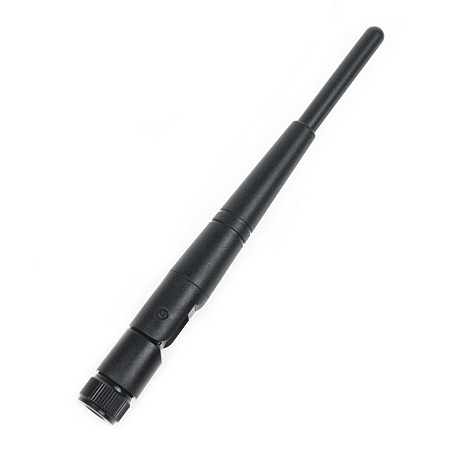

Antenna WiFi Connector Mount SRPK, 2.4/5 GHz, 5 dBi, RP-SMA(pin f)

Numer katalogowy : AW-A2458G-SRPK
Producent: SECTRON

Antenna WiFi Connector Mount SRPK, 2.4/5 GHz, 5 dBi, RP-SMA(pin f)

Omnidirectional interior antenna with a gain of 5 dBi, working in 2400/5800 MHz band and is suited for receiving/transmitting Wi-Fi signal.

43.98 PLN (9.98 €) z VAT (23%) / szt.

bez VAT 36.35 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional interior WiFi antenna

Omnidirectional interior antenna with a gain of 5 dBi and connector SMA-RP(pin f), working in 2400/5800 MHz band and is suited for receiving/transmitting Wi-Fi signal. The antenna is suited for routers.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel N/A
Złącze RP-SMA(f) Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -20 ~ +60  °C Wymiary 113 x 37  mm
Kierunkowość Dookólna Technologia WiFi
Waga 21.24  g Zysk 5  dBi
VSWR <2.0:1 Kąt nadawania H 360 V 30
Sposób mocowania Wtyk

43.98 PLN (9.98 €) z VAT (23%) / szt.

bez VAT 36.35 PLN / szt.
