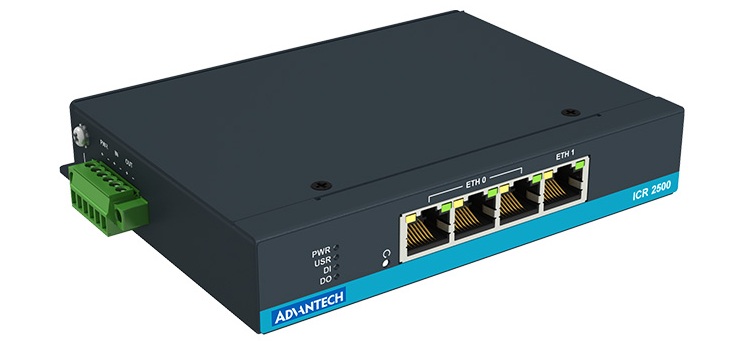

Industrial LAN router Advantech ICR-2501 with Wi-Fi

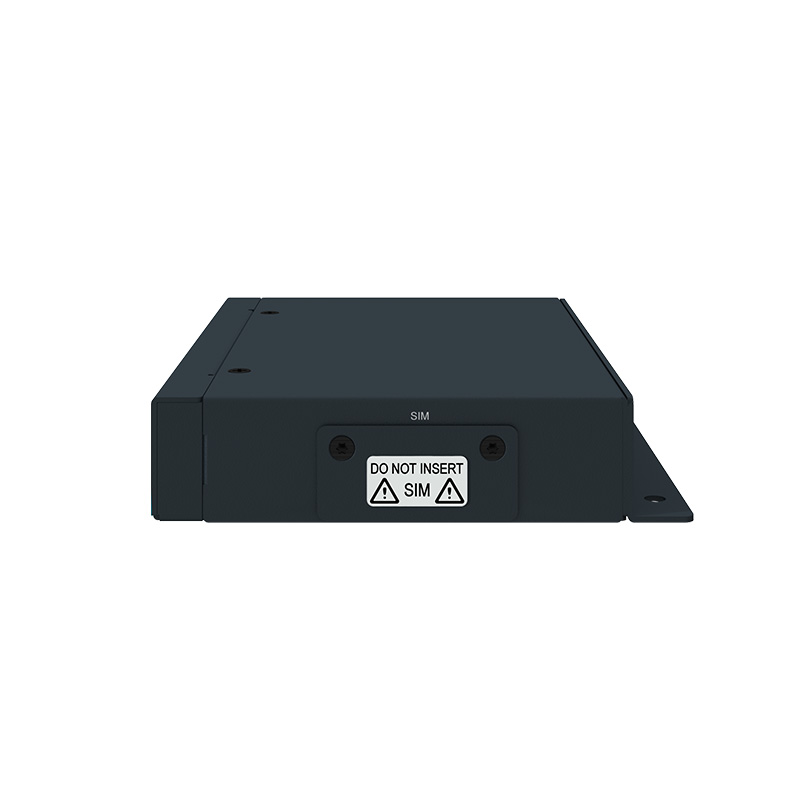

The Advantech ICR-2501 is a robust industrial LAN router ideal for IoT applications where advanced management and secure communication are required without the need for cellular connectivity. A key advantage is full compatibility with Advantech cellular models, enabling unified network infrastructure and consistent management across both mobile and wired network segments. With high durability and remote management capabilities, it is a perfect choice for VPN gateways and monitoring systems without the need for a SIM card slot.
Typical use cases of the ICR-2501
Thanks to its durability and advanced features, the ICR-2501 is widely used across various industries, especially in industrial automation, water management, and Smart City projects, wherever a wired connection is available.
Flexible interfaces and Wi-Fi connectivity
- Wireless Capabilities: Features an integrated Wi-Fi interface supporting 802.11b/g/n standards for versatile wireless networking.

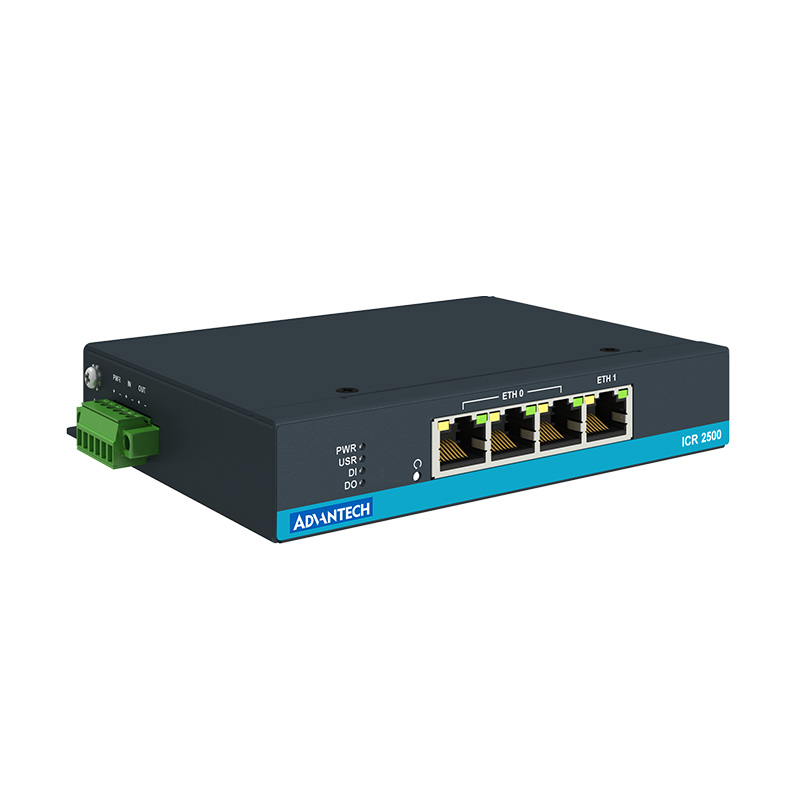

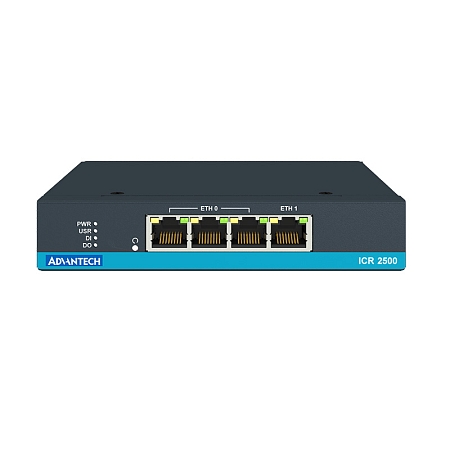

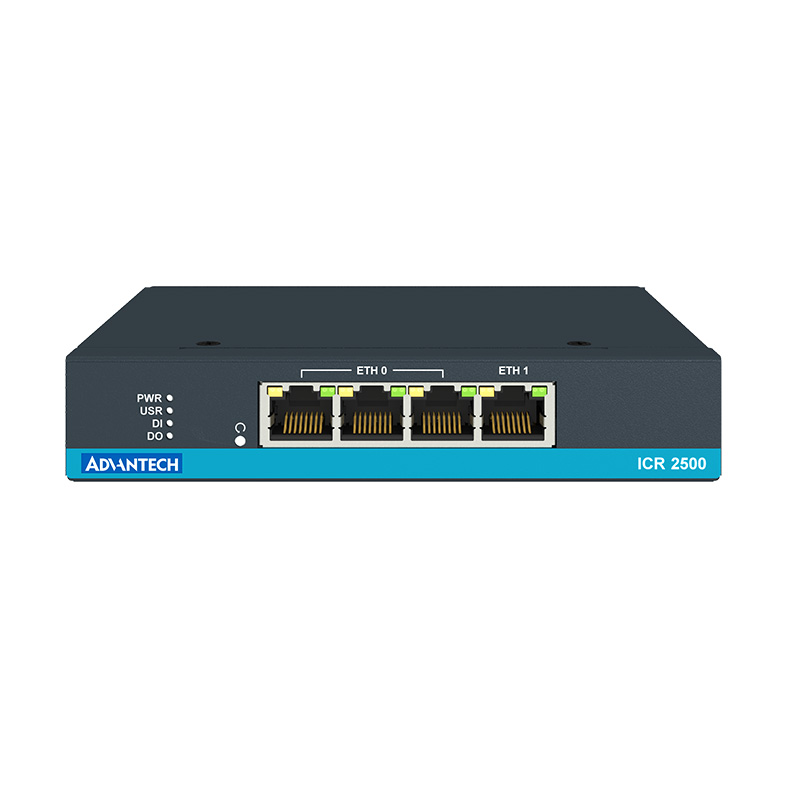

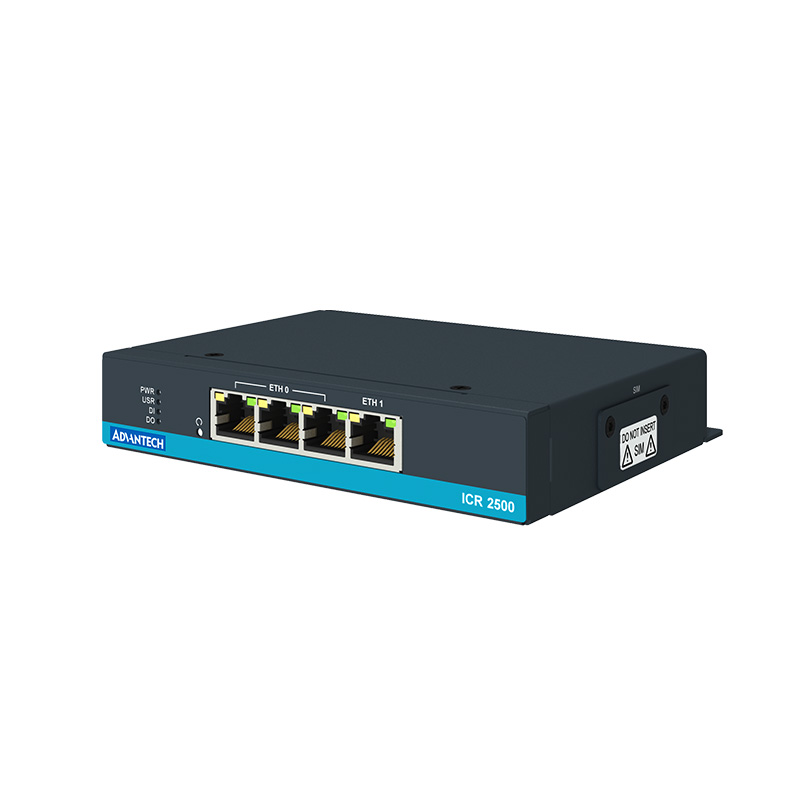

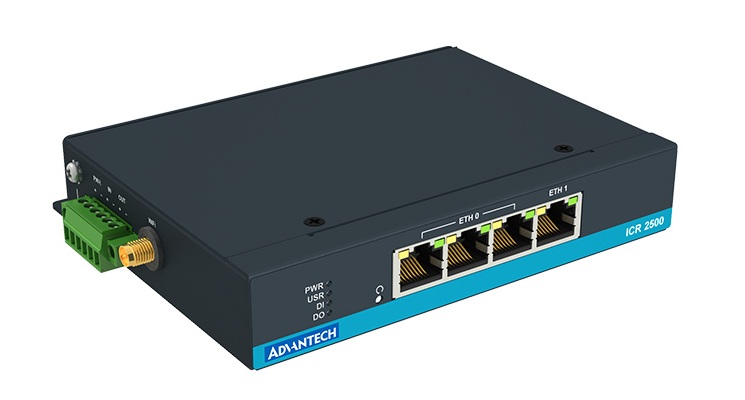

- Ethernet Configuration: Equipped with four Ethernet ports, structured as three switched ports (3× ETH0) and one independent port (1× ETH1).
- Versatile Networking: All ports can be independently configured as either LAN or WAN interfaces, providing high flexibility for network topology.
- Protocol Conversion: The powerful processor supports RouterApp extension modules, specifically designed for industrial protocol conversion.
- System Integration: Ready for seamless integration with various IoT platforms and advanced industrial systems.
Advanced security and VPN gateway
Maximum data protection is ensured through support for a wide range of VPN protocols, including IPsec, OpenVPN, and WireGuard. System stability is maintained by an integrated hardware watchdog that continuously monitors the router status and automatically restarts the device when necessary.
Rugged design and remote management
The router is housed in a compact metal chassis with IP30 protection and a wide operating temperature range from –40 °C to +75 °C. The system runs on the Linux-based ICR-OS operating system and is fully compatible with the WebAccess/DMP tool, enabling mass configuration, monitoring, and management of hundreds of devices from a single central location.
Technical specifications:
- Interfaces: 4× Ethernet ports (10/100 Mbps, 3+1 RJ45)
- Wi-Fi: 802.11b/g/n standard, AP, Client, and Multirole modes
- Digital inputs/outputs: 1× DI, 1× DO
- High durability: industrial-grade metal design with a wide operating temperature range from –40 °C to +75 °C
- Dimensions: 103 × 95 × 25 mm
- Weight: 365 g

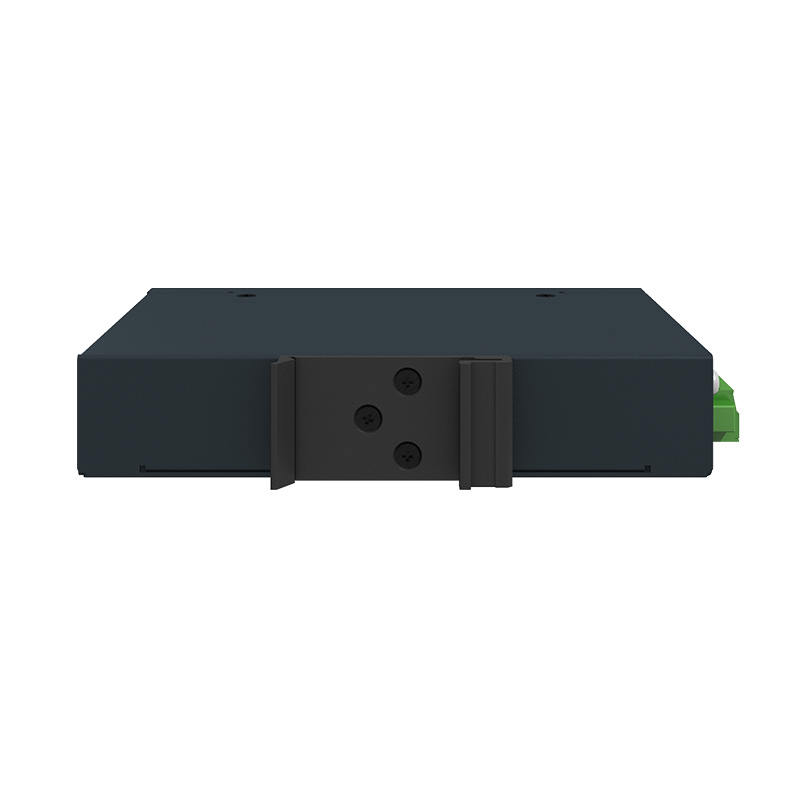

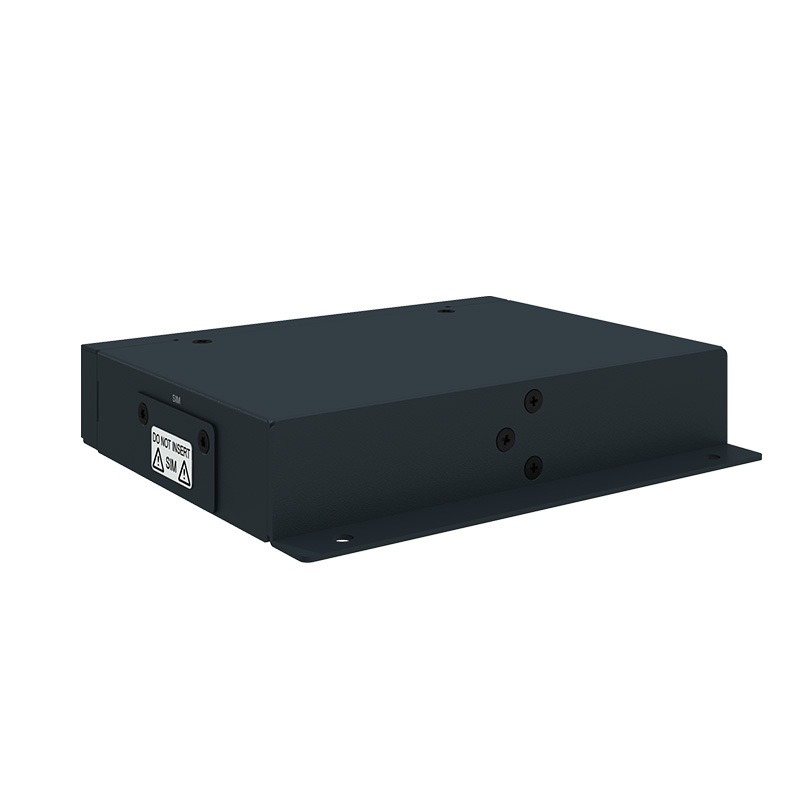

- Wall or DIN rail mounting
Package contents:
- Advantech ICR-2501 router

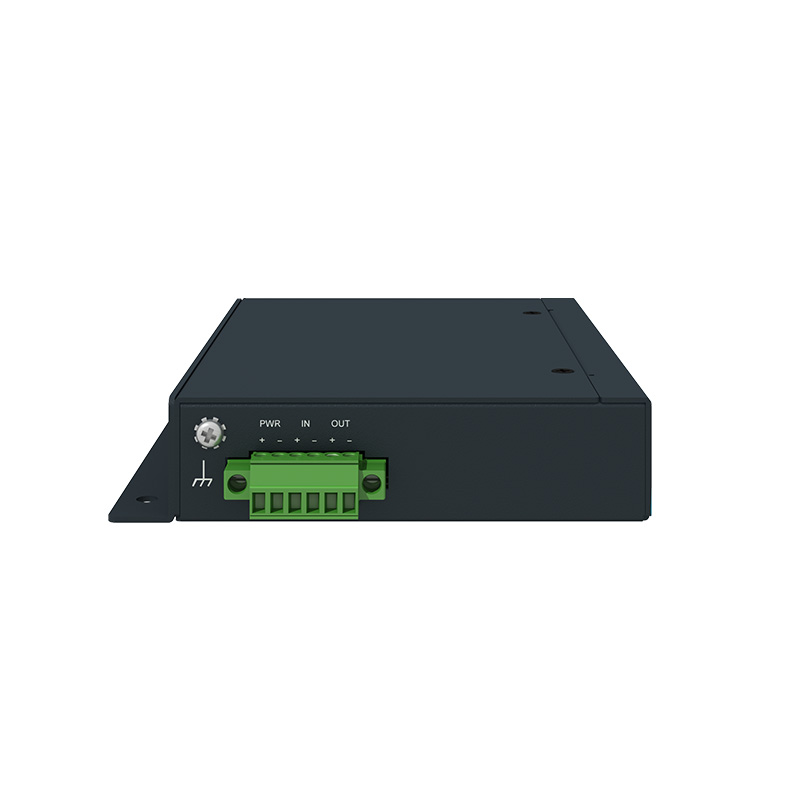

- 1× 6-pin PWR/IO connector
- Mounting bracket
Technical information can be found in the attached datasheet.
