Industrial LAN router Advantech ICR-2501
The Advantech ICR-2501 is a robust industrial LAN router ideal for IoT applications where advanced management, traffic optimization, and secure communication are required without the need for cellular connectivity. A key advantage is full compatibility with Advantech cellular routers, enabling unified network infrastructure and consistent management across both mobile and wired network segments. With top-level security, high durability, and remote management capabilities, the ICR-2501 is a perfect choice for VPN gateways and monitoring systems where a SIM card slot is not required.
ICR-2501 Router Application Examples
The ICR-2501 router is used in a wide range of industries, especially in industrial automation, water management and Smart City projects. Thanks to its durability and security, it is an ideal choice for controlling transportation systems and remote infrastructure management wherever wired connections are available.
Flexible Interfaces and High Connectivity

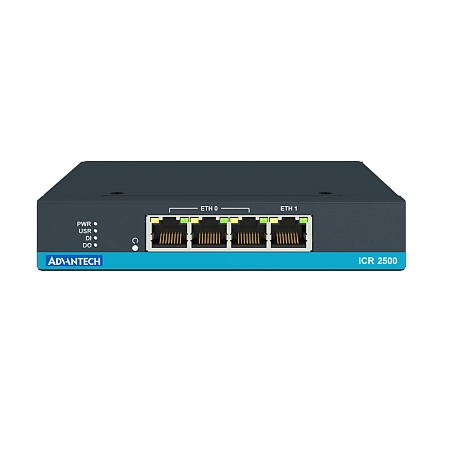

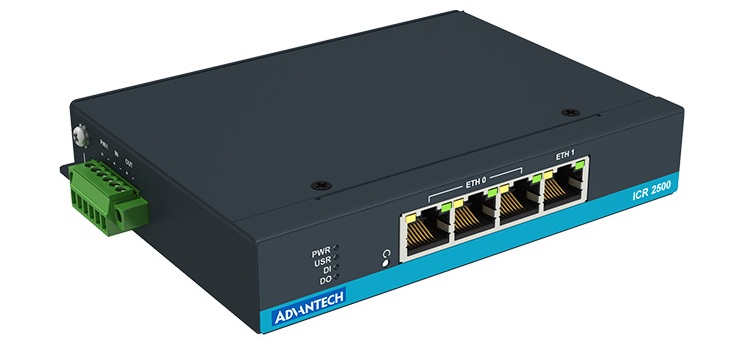

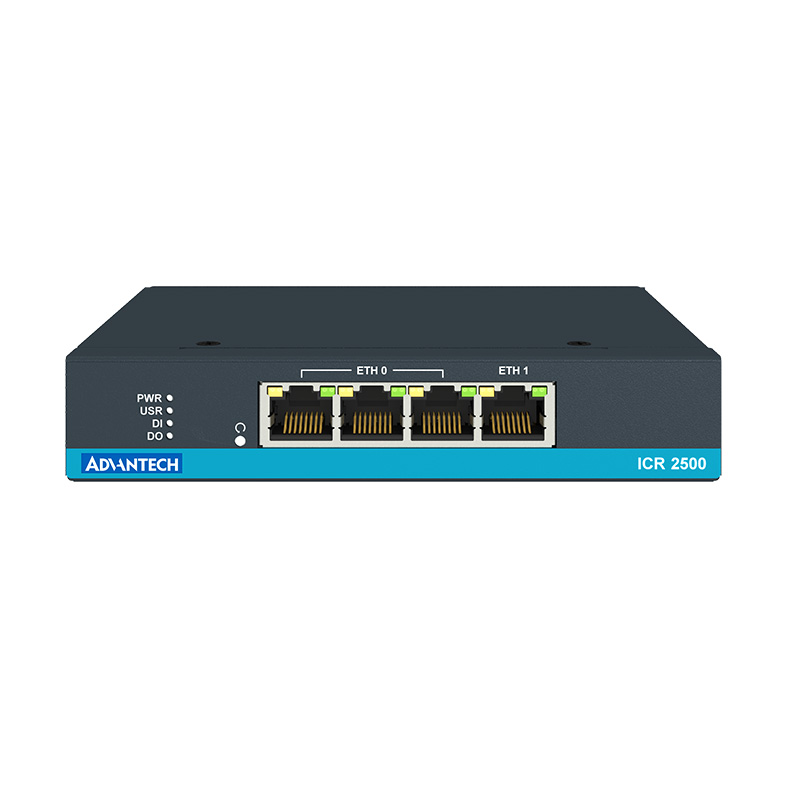

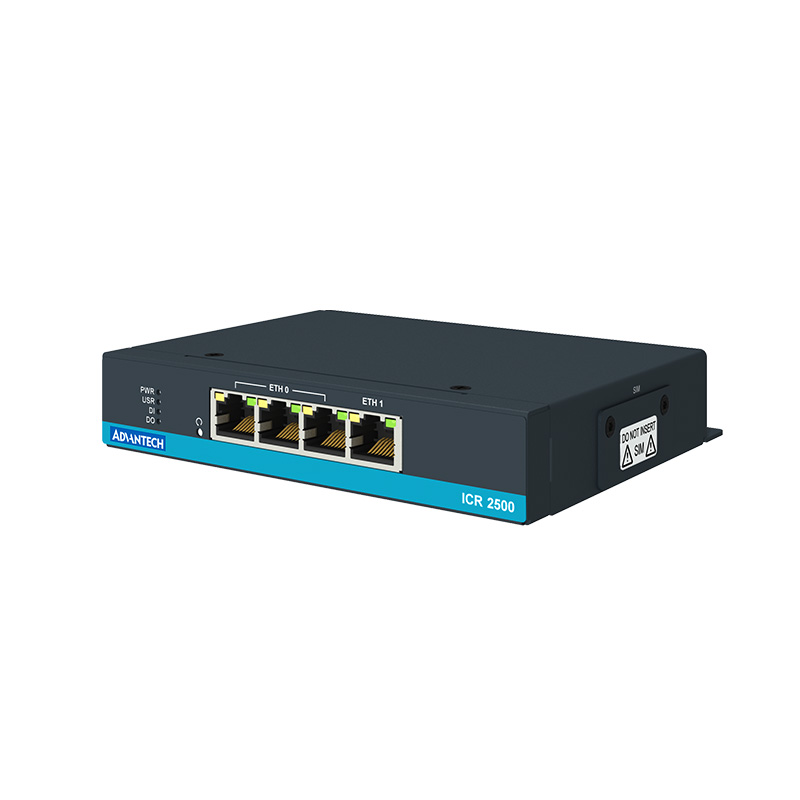

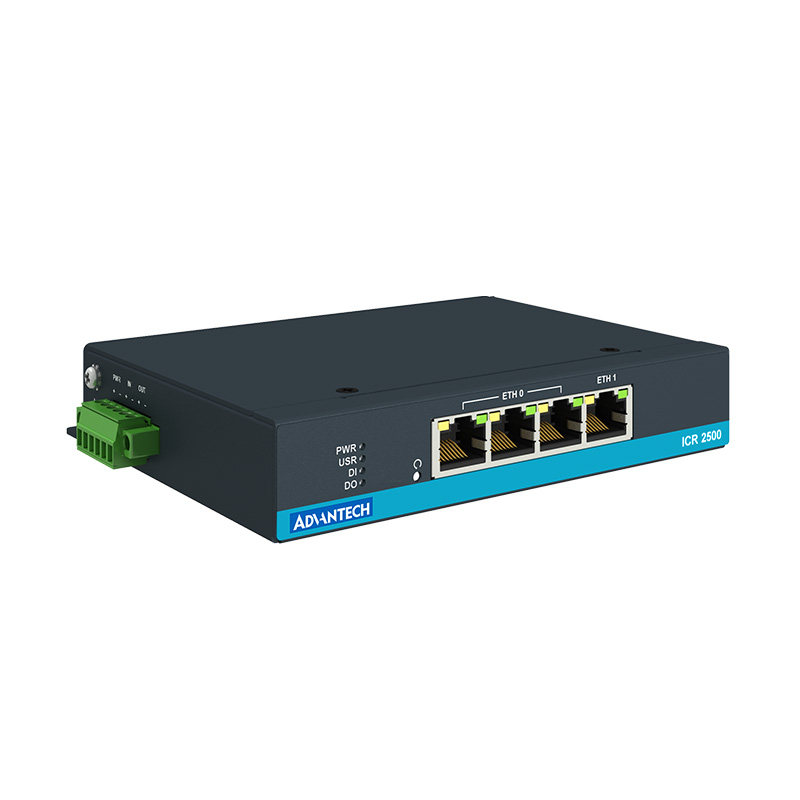

- Advanced Port Configuration: The device features four Ethernet ports, consisting of three switched ports (3× ETH0) and one independent interface (1× ETH1).
- Network Versatility: Every port can be configured independently as either a LAN or WAN interface, allowing for highly flexible network topologies.
- Protocol Conversion: The powerful processor supports RouterApp extension modules, specifically designed for industrial protocol conversion.
- Industrial Integration: Designed for seamless industrial protocol conversion and direct integration with leading IoT platforms.
Advanced security and VPN gateway
Maximum data protection is ensured through support for a wide range of VPN protocols, including IPsec, OpenVPN, and WireGuard. Security features are complemented by an integrated hardware watchdog that continuously monitors system stability and ensures automatic connection recovery in case of failure.
Remote management
The system runs on the Linux-based ICR-OS operating system and is fully compatible with the WebAccess/DMP tool, enabling mass configuration, monitoring, and management of hundreds of devices from a single central location.

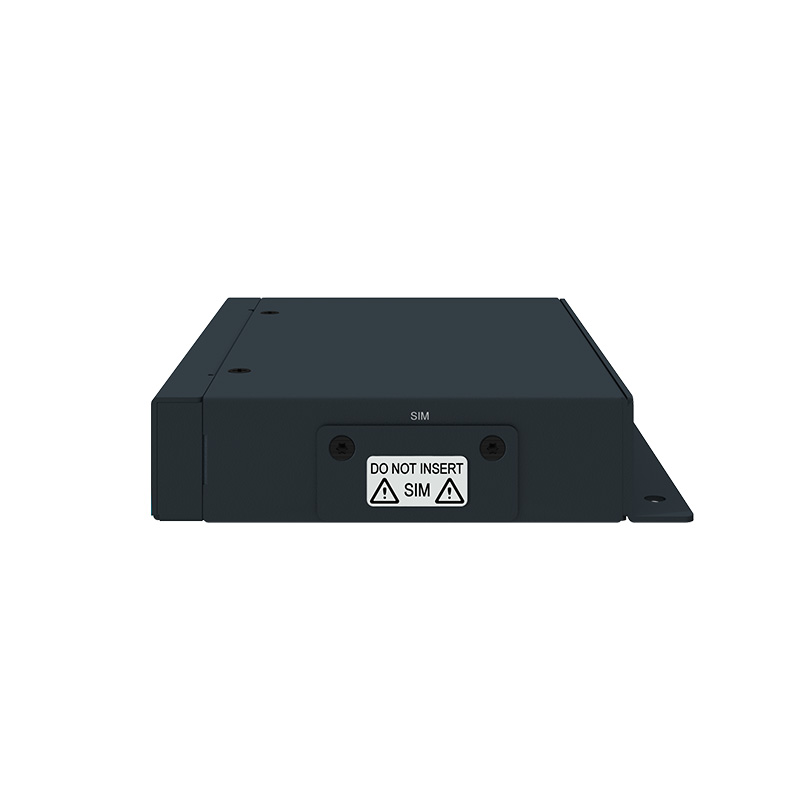

Rugged design and easy installation

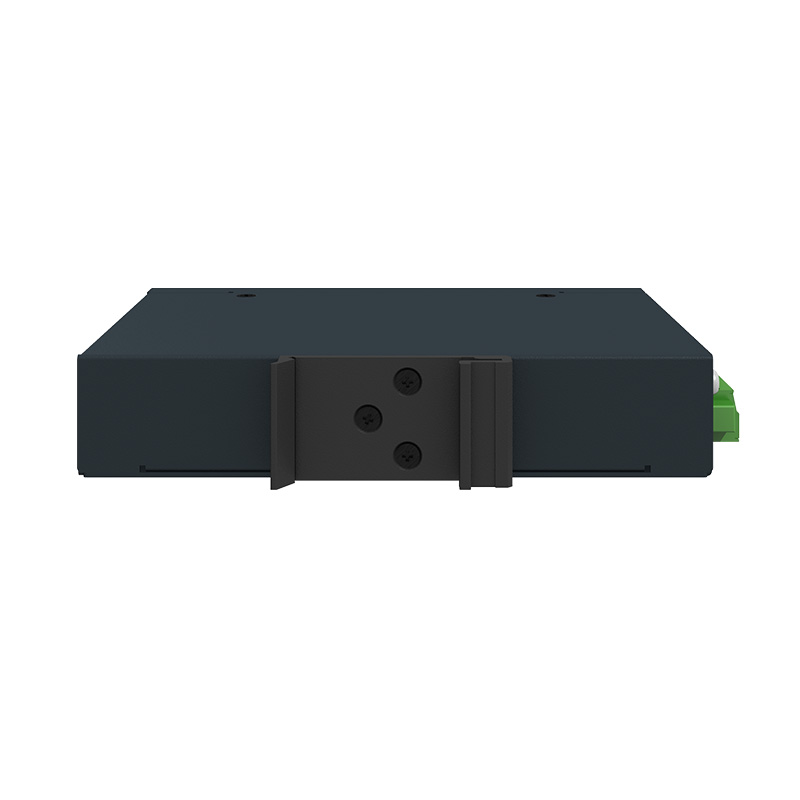

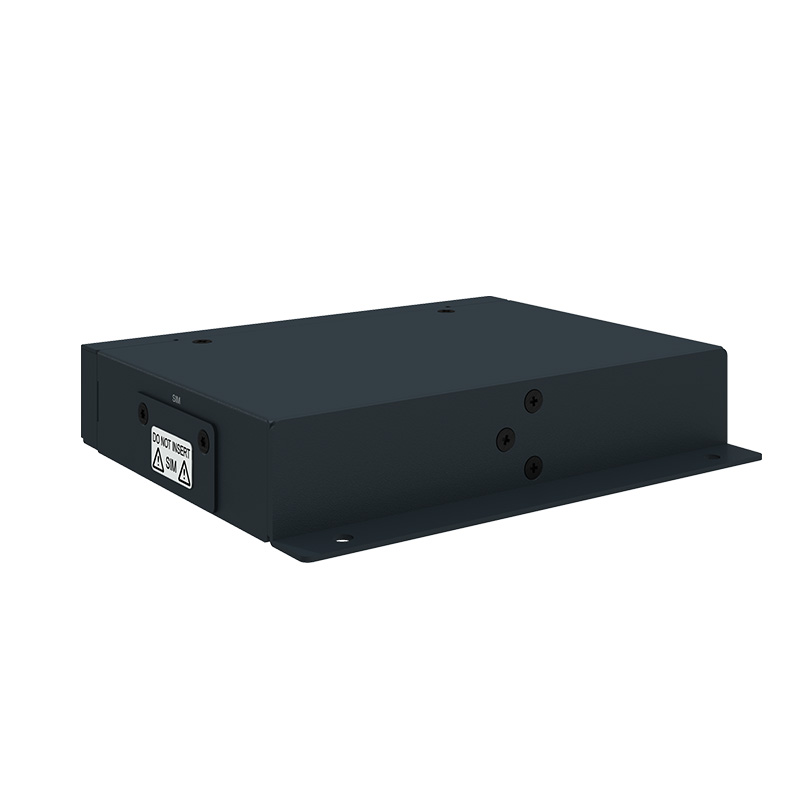

The router is housed in a durable metal chassis with IP30 protection, ensuring reliable operation in extreme temperatures ranging from –40 °C to +75 °C. Thanks to its compact dimensions and integrated mounting brackets, it can be easily installed on a DIN rail or directly on a wall.
Technical specifications:
- Interfaces: 4× Ethernet ports (10/100 Mbps, 3+1 RJ45)
- 1× DI, 1× DO
- High durability: industrial-grade metal design with a wide operating temperature range from –40 °C to +75 °C
- Dimensions: 103 × 95 × 25 mm
- Weight: 355 g
- Wall or DIN rail mounting
Package contents:
- Advantech ICR-2501 router

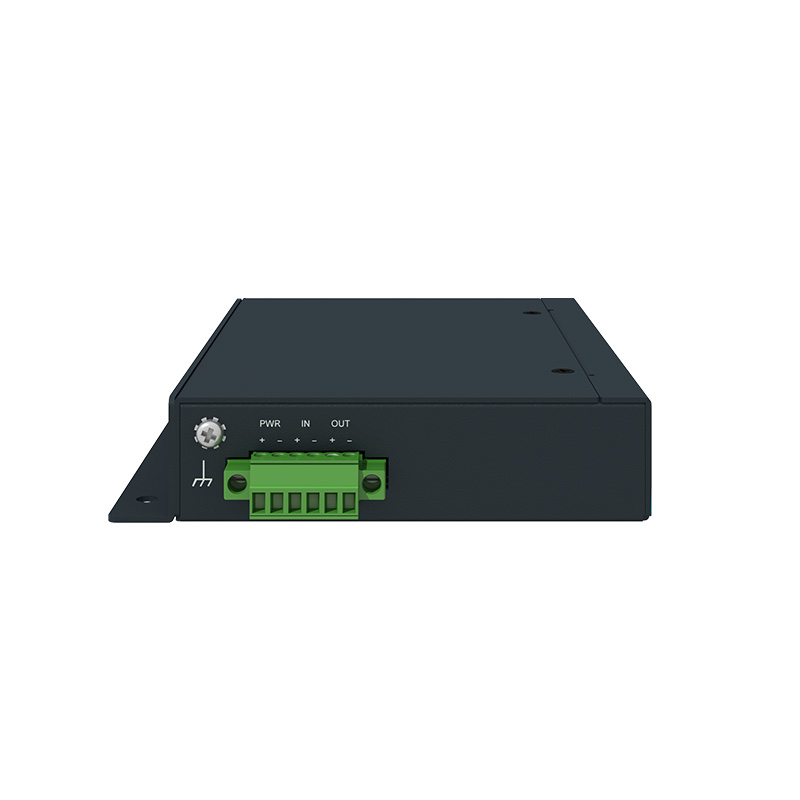

- 1× 6-pin PWR/IO connector
- Mounting bracket
Technical information can be found in the attached datasheet.
