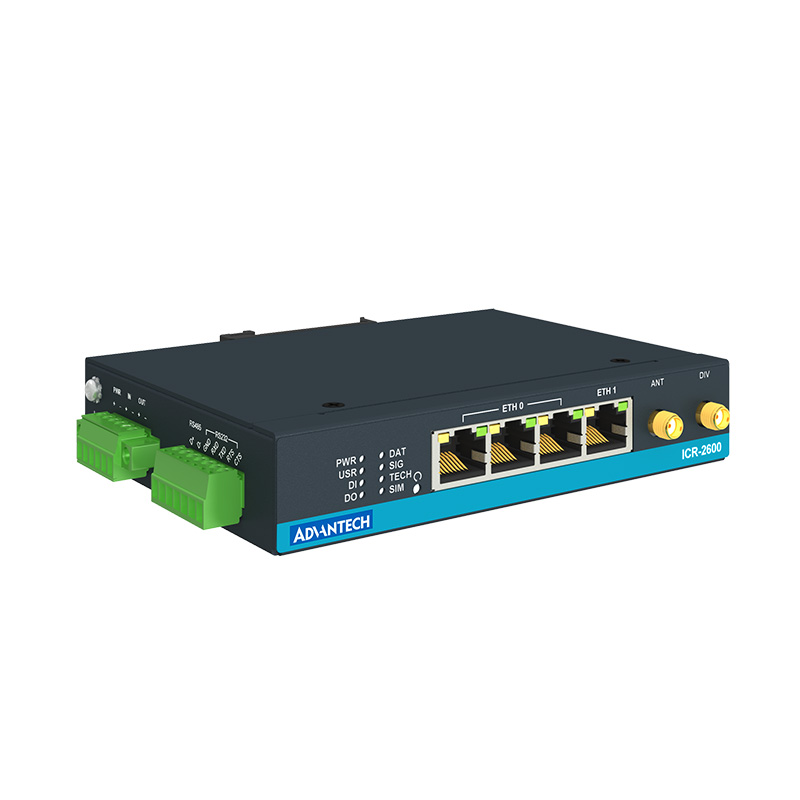

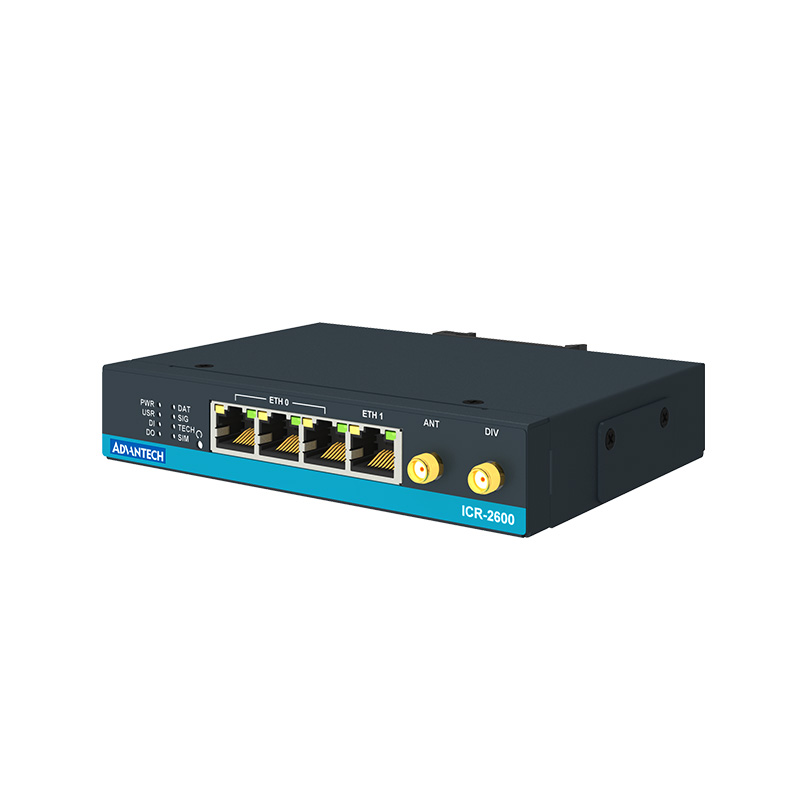

Industrial LTE router Advantech ICR-2631
The ICR-2631 industrial router is designed for reliable communication in LTE Cat.4 cellular networks. This technology enables high data transfer speeds of up to 150 Mbps for downlink and 50 Mbps for uplink.
Connectivity and serial interfaces

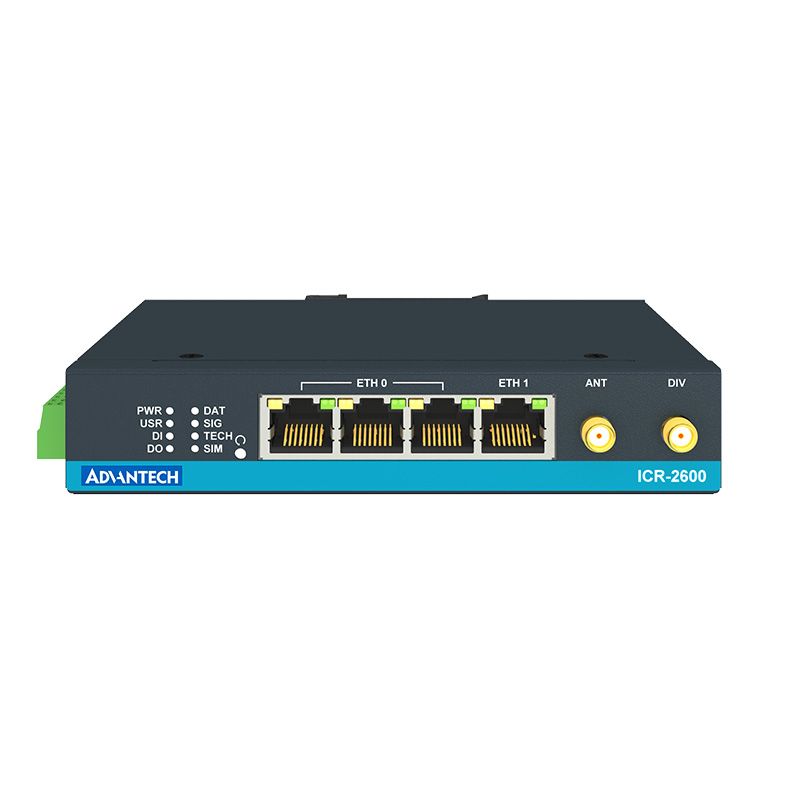

- Versatile Ethernet Ports: The device features four Ethernet ports, structured as three switched ports (ETH0) and one independent port (ETH1).
- Customizable Network Topology: All interfaces can be individually configured as either LAN or WAN, providing maximum flexibility for network setup.
- Legacy Equipment Support: Integrated RS232 and RS485 serial interfaces allow for the seamless connection of older industrial hardware to modern networks.
- Digital I/O Connectivity: Includes one digital input (1× DI) and one digital output (1× DO) to facilitate straightforward automation and real-time status monitoring.
Diagnostics and advanced security
The router emphasises security and connection stability. It supports encrypted VPN tunnels using a wide range of standardised protocols. To ensure uninterrupted operation without manual intervention, it includes diagnostic features such as automatic connectivity monitoring, automatic reboot functionality, and a hardware watchdog that continuously supervises system status.
Typical use cases of the ICR-2631
The router is suitable for a wide range of applications, including energy sector deployments and remote metering, water management and environmental monitoring, transportation systems, and Smart City projects.
Open platform and Edge Computing
With a Linux-based operating system and support for programming languages such as Python, C, and C++, the router enables the development and operation of custom software applications. It fully supports the Advantech Router Apps library, which simplifies industrial protocol conversion and integration with IoT platforms such as Microsoft Azure, Cumulocity, ThingWorx, and others.
Rugged design
The device is housed in a durable metal chassis with IP30 protection and is designed to operate in extreme temperature conditions ranging from –40 °C to +75 °C.
Technical specifications:
- LTE Cat.4 support for the EMEA region with 3G/2G fallback
- 2× SIM card slots for reliable connection backup
- Interfaces: 4× Ethernet ports (10/100 Mbps), 1× RS232, 1× RS485
- High durability: industrial-grade metal design with a wide operating temperature range from –40 °C to +75 °C
- Dimensions: 103 × 95 × 25 mm
- Weight: 380 g

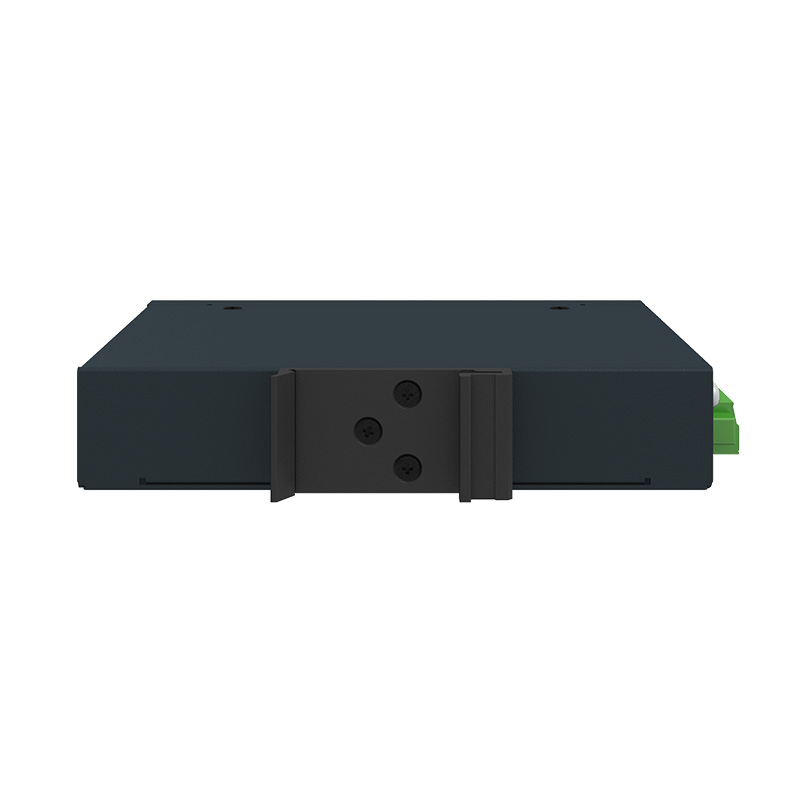

- Wall or DIN rail mounting
Package contents:
- Advantech ICR-2531 router
- 1× 6-pin PWR/IO connector
- 1× 7-pin connector for RS232, RS485
- Mounting bracket
Technical information can be found in the attached datasheet.
