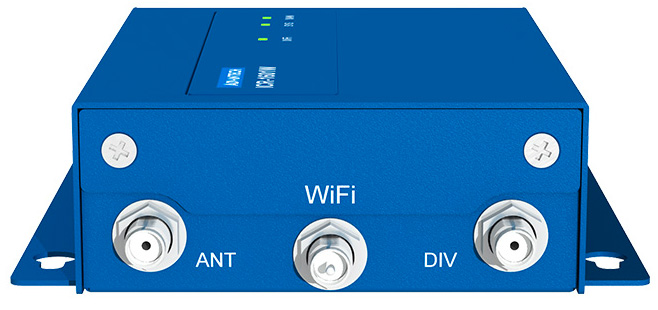

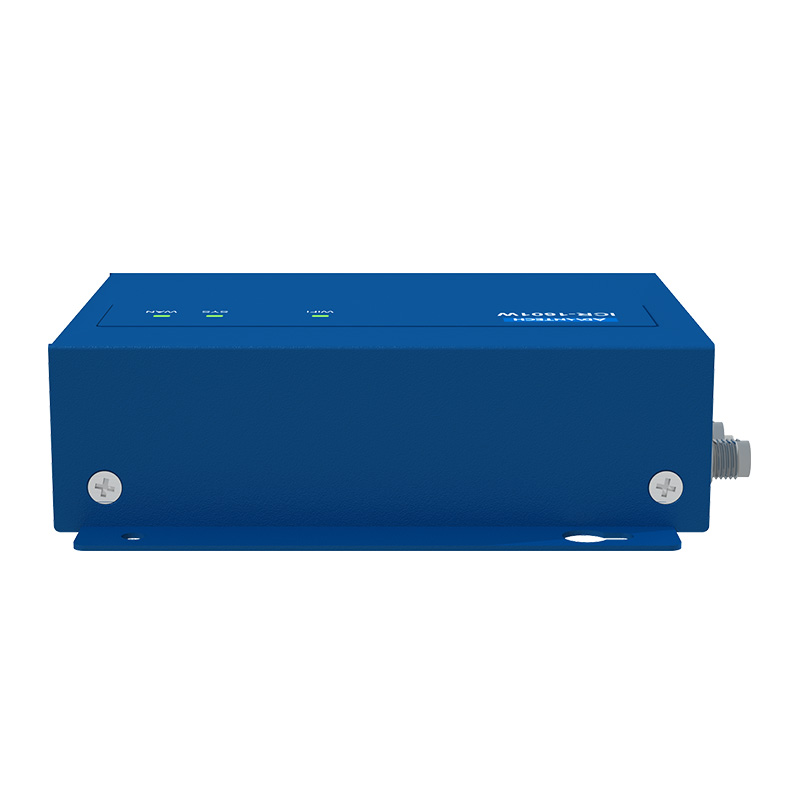

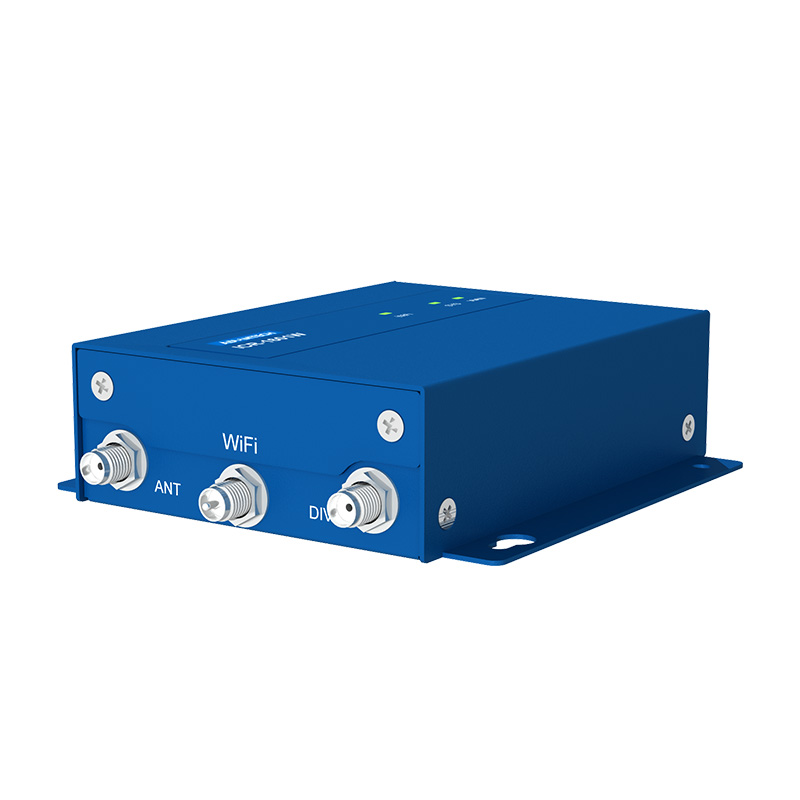

Industrial router Advantech ICR-1601 with Wi-Fi
The Advantech ICR-1601W is a compact industrial LTE router designed for secure and reliable data transmission in industrial IoT and M2M applications using cellular technologies. With LTE Cat.4 technology, it delivers high data transfer speeds of up to 150 Mbps (downlink) and 50 Mbps (uplink).
Typical use cases of the ICR-1601

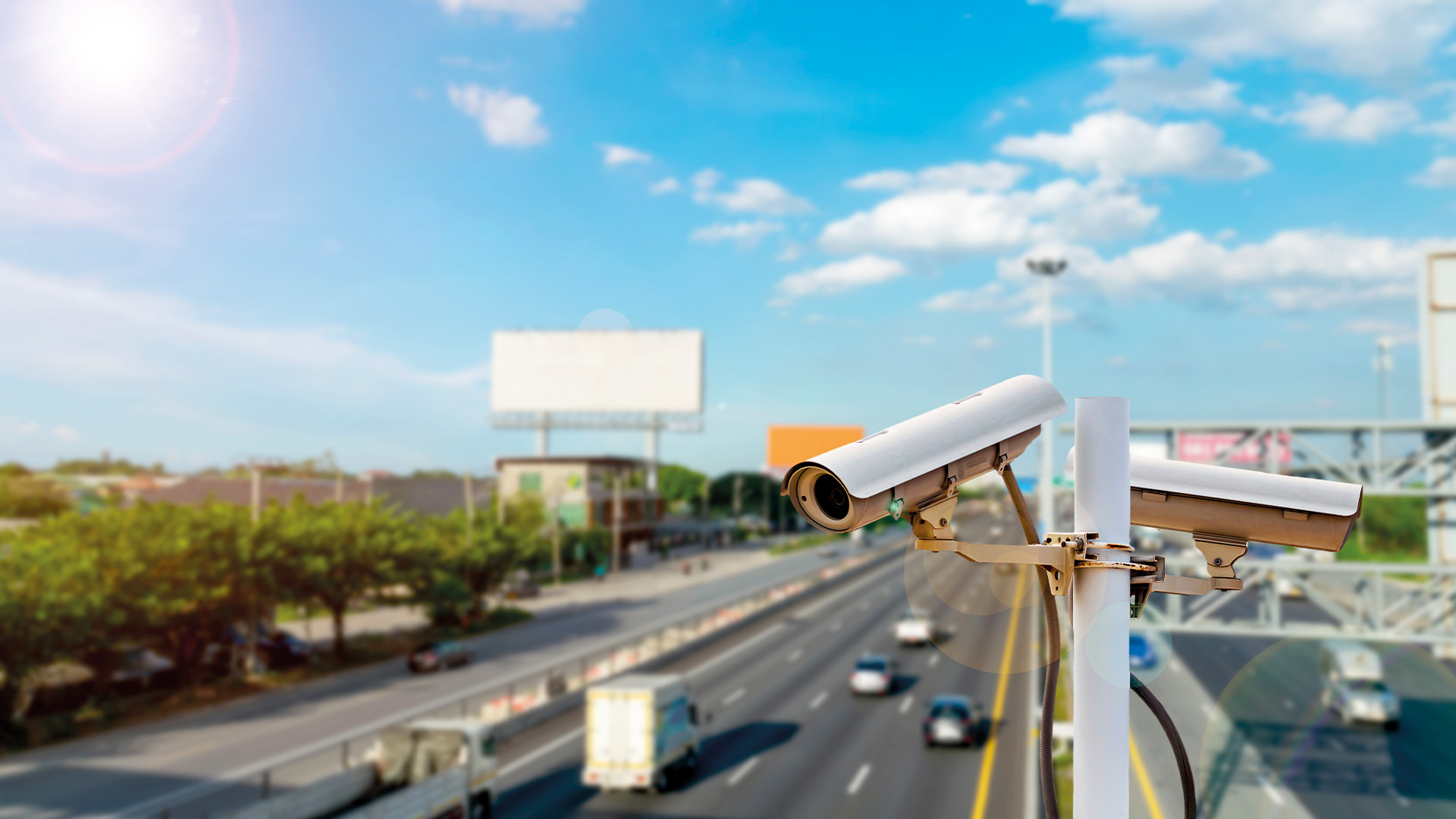

Thanks to its robust design and rich feature set, it is an ideal solution for remote device management, traffic cameras, security systems, and self-service terminals.
Reliable connection and connectivity- Wi-Fi network: The integrated Wi-Fi module (802.11b/g/n standard) supports Access Point (AP) mode and enables operation of multiple independent networks (SSIDs).
- Redundancy and failover: Dual SIM card slots ensure maximum service availability through automatic switching to a backup operator in the event of primary network failure.

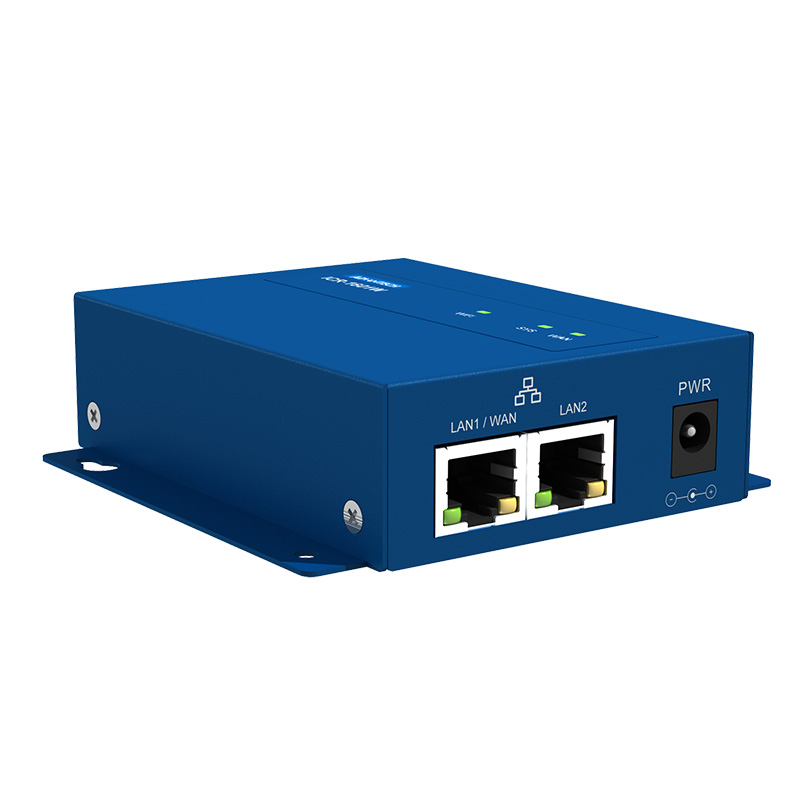

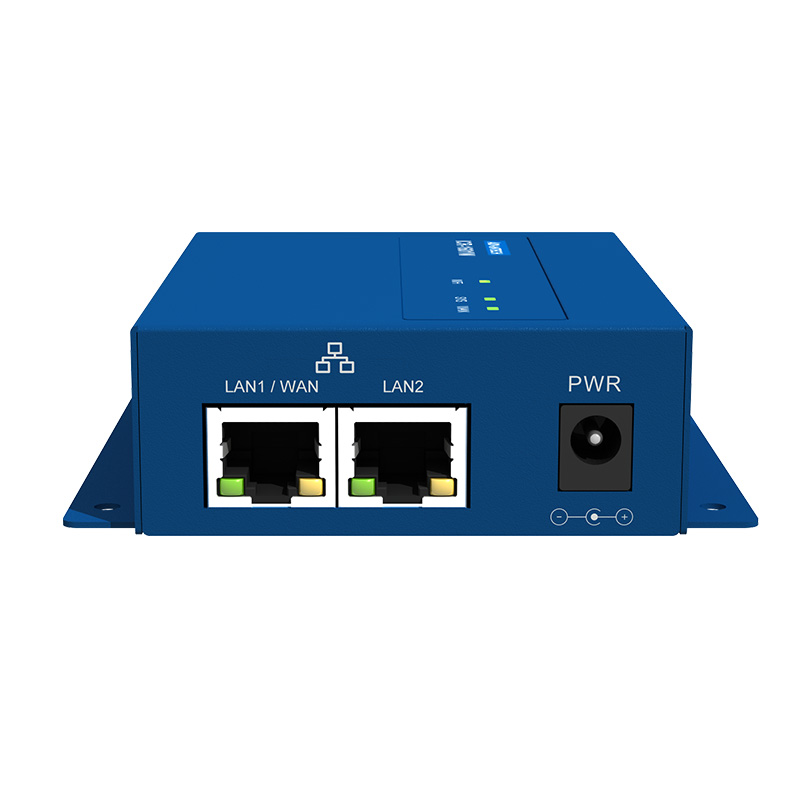

- Ethernet interfaces: The router is equipped as standard with two 10/100 Mbps Ethernet ports for wired connection of end devices.
- Data storage: An integrated MicroSD card reader serves as log storage for saving system logs and operational data.
Robust hardware and easy installation
The device is housed in a durable metal enclosure and designed to operate in extreme temperature conditions ranging from –30 °C to +70 °C. With its compact dimensions and integrated mounting brackets for DIN rail or wall installation, the router easily fits into space-constrained cabinets and kiosks.
Key features:
- LTE Cat. 4 support for the EMEA region
- 2× SIM card slots for reliable connection backup
- 1× MicroSD slot
- Wi-Fi connectivity: support for 802.11b/g/n, AP, Multi SSID, WDS
- Interfaces: 2× Ethernet ports (10/100 Mbps)
- High durability: industrial-grade metal design with a wide operating temperature range from -30°C to 70°C
- Dimensions: 93 × 90 × 27 mm
- Weight: 252 g
- Wall or DIN rail mounting
Package contents:
- Advantech ICR-1601W router
- 2× LTE antennas
- 1× Wi-Fi antenna
- Power adapter (5V DC/2A)
- Rubber feet
- Mounting bracket
Technical information can be found in the attached datasheet.
