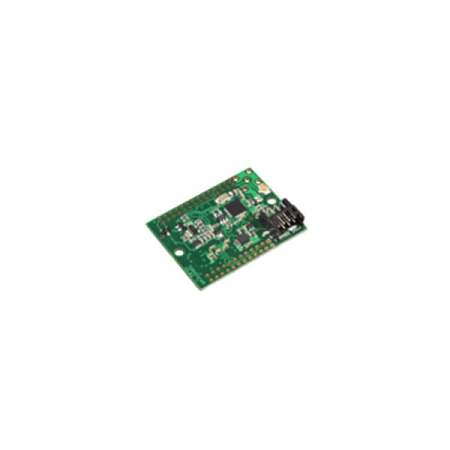

TWN4 MultiTech Core
RFID reader TWN4 MultiTech Core is designed for integration into machines or any other device to be used with an external antenna.
• Powerful SDK for writing Apps which are executed directly on the reader
• Infield Upgradeable
• Direct chip-commands support
• Onboard 18kB flash storage
• Supports multiple SAMs (Secure Access Modules)
• Supports 50 Ohm external antennas via SMA, SMB, SMC, MCX, UMCC/U.FL connectors
• CCID and PC/SC 2.011)
• Interfaces: USB, RS232, Serial (logical level 3.3V, CMOS 5V tolerant), I²C, SPI2), Clock/Data3), Wiegand3),1-Wire2)
• Dedicated expansion bus for connection of LCD, mass storage, etc.
• 8 GPIOs
• 3D Model (STEP) on request
Available options:
T4CM-FC1 TWN4 MultiTech Core C1 - Standard Core - Module 39x33x8mm, w/o antenna; Standard
T4CM-FC1-P TWN4 MultiTech-P Core C1- Version P Core - Module 39x33x8mm, w/o antenna; Version P
T4CM-FC2 TWN4 MultiTech Core C2 - Standard - Core Module 39x33x9mm, w/o antenna; Standard, 3 male connectors
T4CM-FC2-P TWN4 MultiTech-P Core C2 - Version P - Core Module 39x33x9mm, w/o antenna; Version P, 3 male connectors
Product prices on request.
More information can be found in the attached datasheet.
