Numer katalogowy : TM-M7E-TERA

ThingMagic M7E-TERA Embedded UHF RFID MODULE

Numer katalogowy : TM-M7E-TERA

ThingMagic M7E-TERA Embedded UHF RFID MODULE

The JADAK ThingMagic M7E-TERA is a high-performance 4-port UHF RAIN RFID reader module designed for demanding applications. It offers a wide RF output power range from 0 to +31.5 dBm, enabling RFID tag reading at distances of over 12 meters.

2 153.84 PLN (493.86 €) z VAT (23%) / szt.

bez VAT 1 780.03 PLN / szt.

Zapytani
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

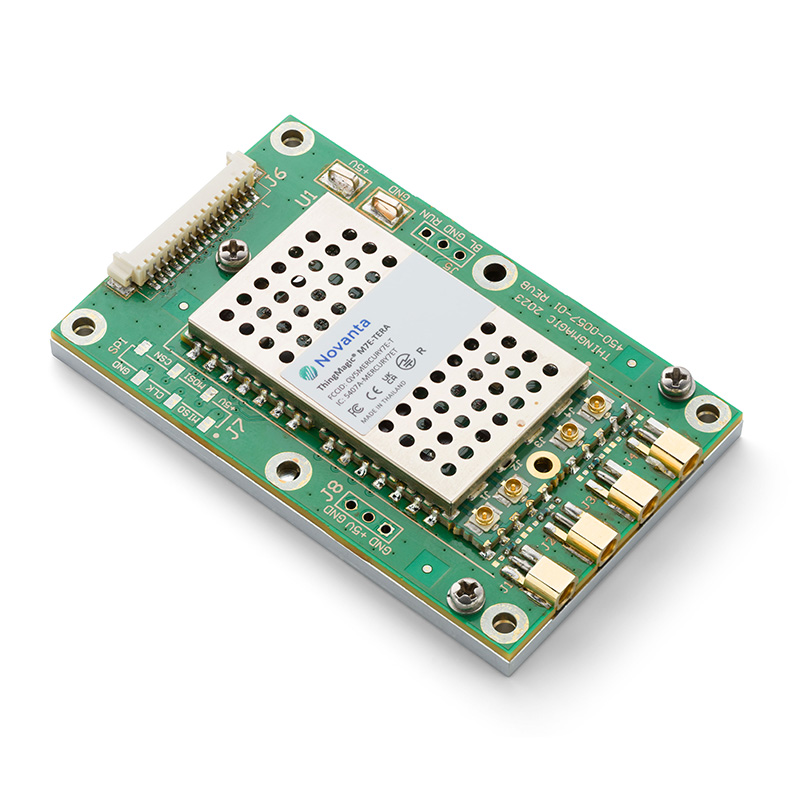

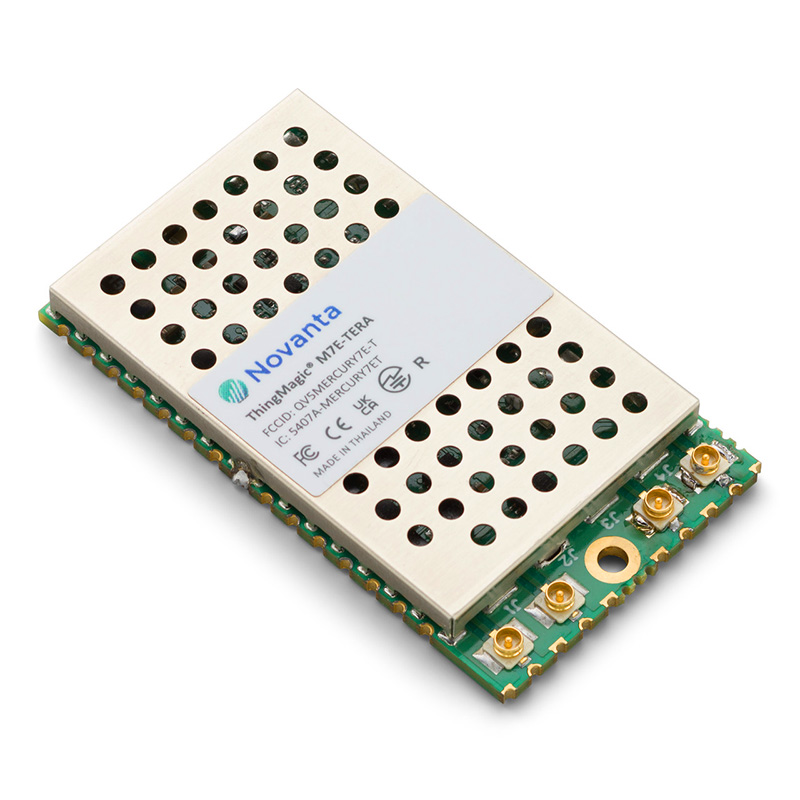

JADAK ThingMagic M7E-TERA – High-Performance 4-Port UHF RAIN RFID Reader Module

The JADAK ThingMagic M7E-TERA is a high-performance 4-port UHF RAIN RFID reader module designed for demanding applications. It offers a wide RF output power range from 0 to +31.5 dBm, enabling RFID tag reading at distances of over 12 meters and achieving read rates of more than 800 tags per second. The module features four RF ports for antenna connections, accessible via edge contacts or UFL connectors.

Powered by the Impinj E710 RAIN RFID reader chip, the module boasts very low power consumption, making it ideal for battery-powered portable readers.

Management and Configuration via Mercury API

The module is managed and configured through the ThingMagic Mercury API, which supports multiple programming languages and allows for flexible application development.

Integration Options for OEMs

Its compact size and ease of integration make the module an ideal choice for OEMs looking to embed RFID functionality into their devices or to use it in the development of new finished readers.

This product is an RFID reader module, not a standalone reader.

Application Areas

The module is suitable for applications such as point-of-sale systems and retail checkouts, personnel and asset tracking, consumable authentication, pharmaceutical management, and inventory control. It is also well-suited for use in mobile devices such as handheld computers, portable printers, or sensor network devices.

Key Features:

• Comprehensive global certifications
• Universal Mercury API used across all ThingMagic products
• Low power consumption
• Compact form factor
• Enhanced read speed and receive sensitivity
• Integrated Impinj Ex10 reader IC technology
• Supports RAIN® standard (GS1 UHF Gen2V2 and ISO/IEC 18000-63) and Impinj Gen2X
• Compatible with M6e module series

Technical specifications can be found in the attached datasheet.


2 153.84 PLN (493.86 €) z VAT (23%) / szt.

bez VAT 1 780.03 PLN / szt.
