ThingMagic M7E-PICO - powerful RFID module
Maximum performance in a minimal design

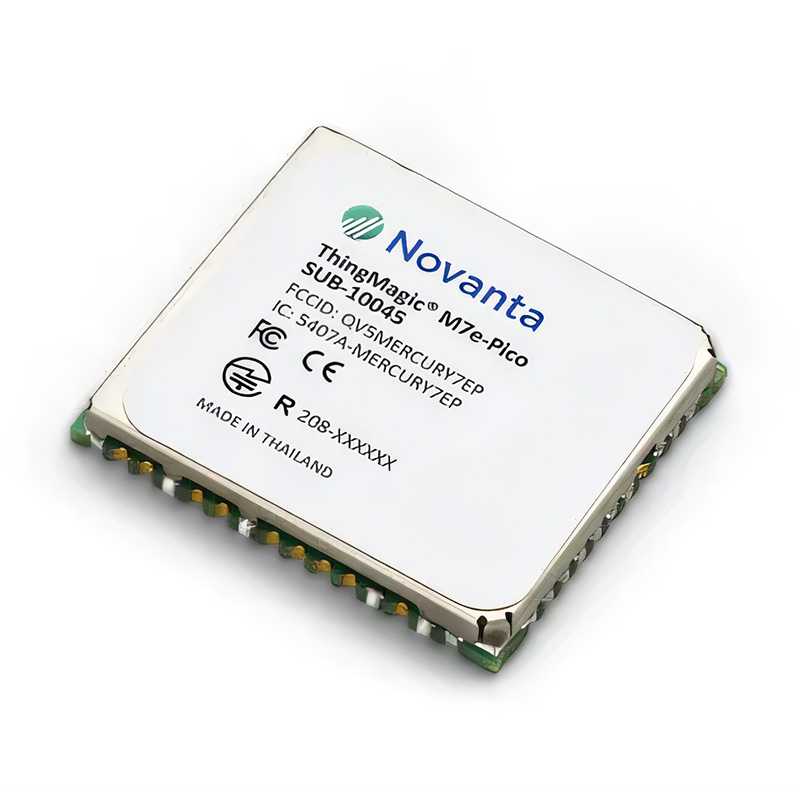

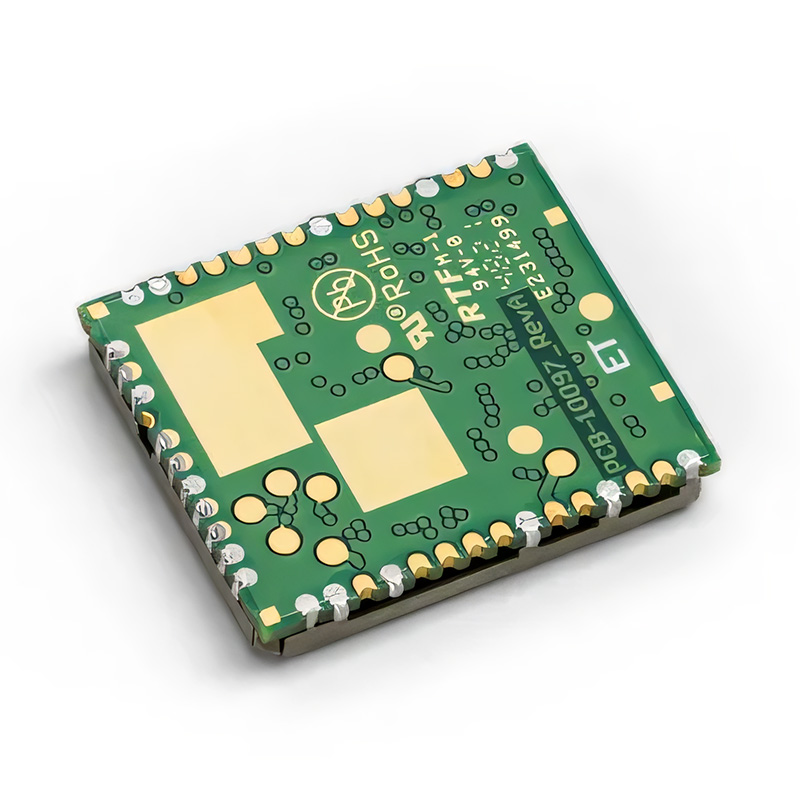

The Jadak ThingMagic M7E-PICO is a UHF RAIN RFID module that combines outstanding performance with low power consumption, making it ideal for battery-powered devices. Its compact dimensions of 18 mm × 21 mm × 3.0 mm allow for easy integration even into space-constrained applications. The M7e series module is equipped with the advanced Impinj Ex10 RAIN chip, which ensures high-speed RFID tag reading and reliable operation even in environments with high tag density. The ThingMagic M7E-PICO stands out with its RF output reaching up to +24 dBm, supports global standards, and operates efficiently across various regions.
The module is capable of reading up to 300 RFID tags per second, making it highly effective for fast-paced RFID environments.
Application of the module
The RFID module is ideal for use in retail checkouts, mobile devices (including handheld computers), sensor networks, kiosks and vending machines, tracking people and assets, verifying consumables, and managing medicines and supplies.
Key Features:
• Multi-region support: 860-930 MHz
• Output power up to 24 dBm
• Reads up to 300 tags per second
• Compact dimensions: only 18 mm × 21 mm × 3.0 mm
• Interface: UART
• Low power consumption: suitable for mobile and battery-powered devices
• Supported protocols: EPCglobal Gen2v2 / ISO 18000-63
• Compatible with M6e series modules
• Increased reading speed and reception sensitivity
This module represents a reliable solution for modern RFID applications where efficiency, flexibility and easy integration are important.
Technical specifications can be found in the attached datasheet.
