ThingMagic M7E-MEGA – High-Performance Dual-Port RFID Module
Maximum Performance in a Minimal Footprint

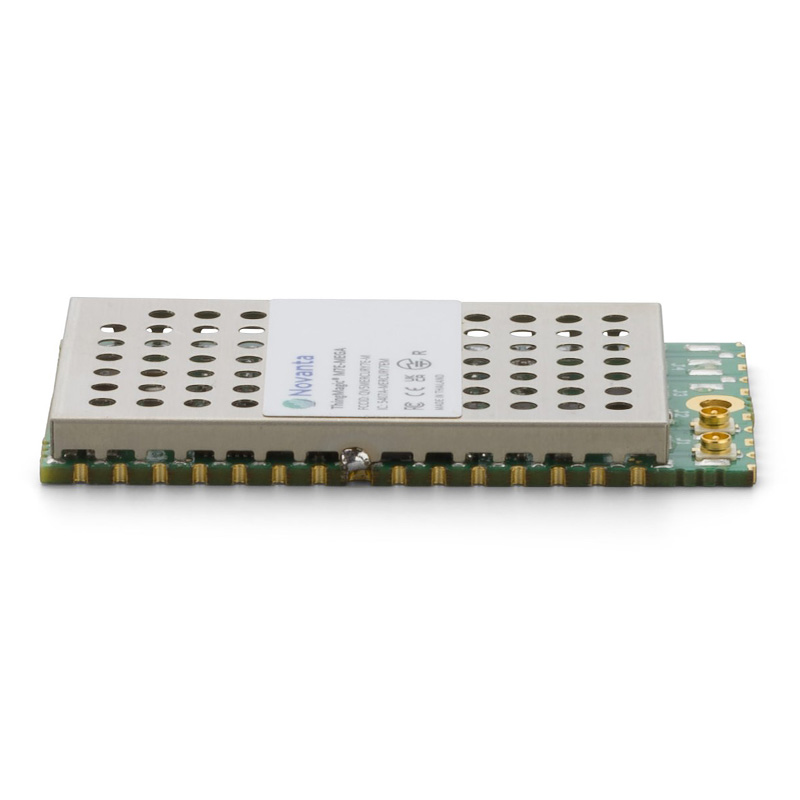

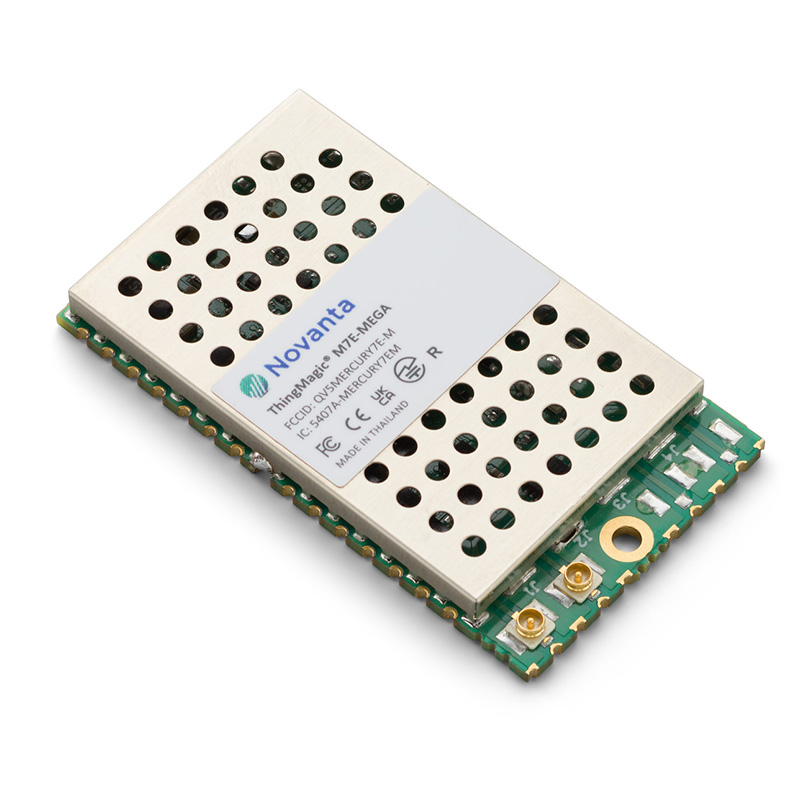

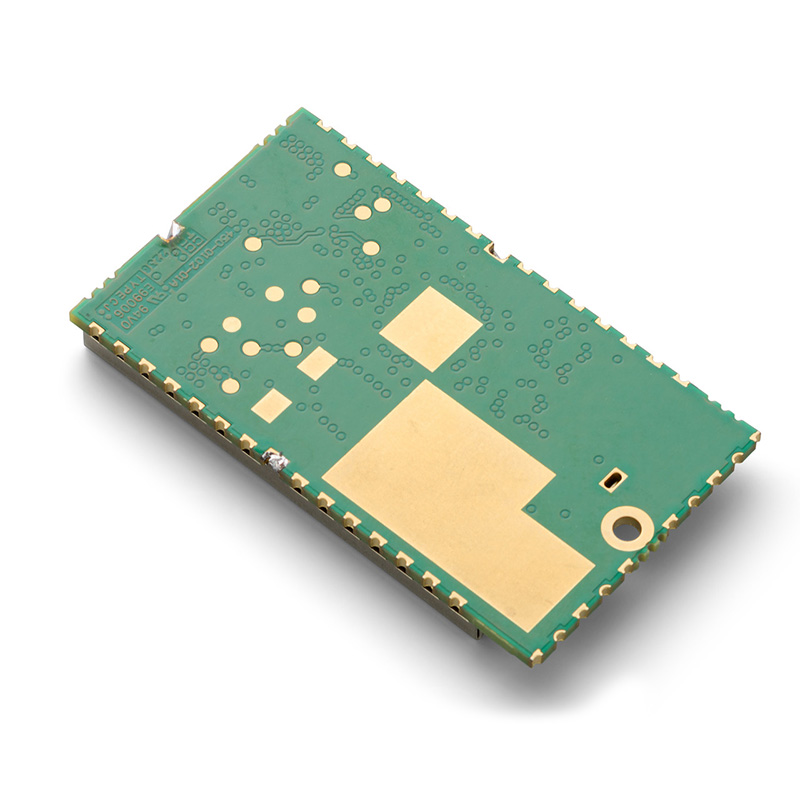

Novanta ThingMagic M7E-MEGA is a dual-port UHF RAIN RFID module that delivers high performance while consuming low power, making it an ideal choice for battery-powered devices. This compact M7e module, measuring 46 mm × 26 mm × 4.0 mm, features a UART interface and an advanced Impinj Ex10 RAIN reader chip, enabling fast and reliable RFID tag reading even in high-density tag environments. The ThingMagic M7E-MEGA offers RF output up to +30 dBm, supports global standards, and ensures efficient operation in various regions of the world. Users have the option to connect two antennas either via edge pads or U.FL connectors, providing flexibility for integration into various devices.
The module can read up to 600 RFID tags per second, making it highly efficient for fast-paced RFID environments.
Module usage in applications
The M7E-MEGA RFID module is ideal for use in the pharmaceutical industry, mobile devices (including PDAs), sensor networks, kiosks and vending machines, for example.
This module represents a reliable solution for modern RFID applications where efficiency, flexibility and easy integration are important.
Key features:
• Multi-region support: 860–930 MHz
• Output power up to 30 dBm
• Reading up to 600 tags per second
• Compact dimensions: 46 mm × 26 mm × 4.0 mm
• Interface: UART
• Low power consumption: suitable for mobile and battery-powered devices
• Supported protocols: EPCglobal Gen2v2 / ISO 18000-63
• Compatible with M6e series modules
• Increased reading speed and reception sensitivity
Technical specifications can be found in the attached datasheet.
