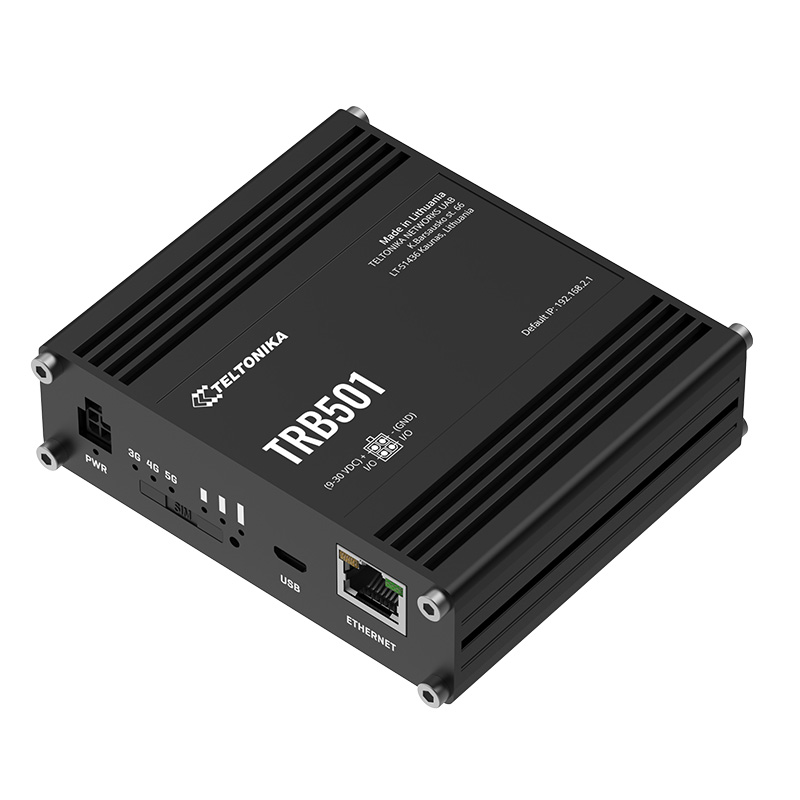

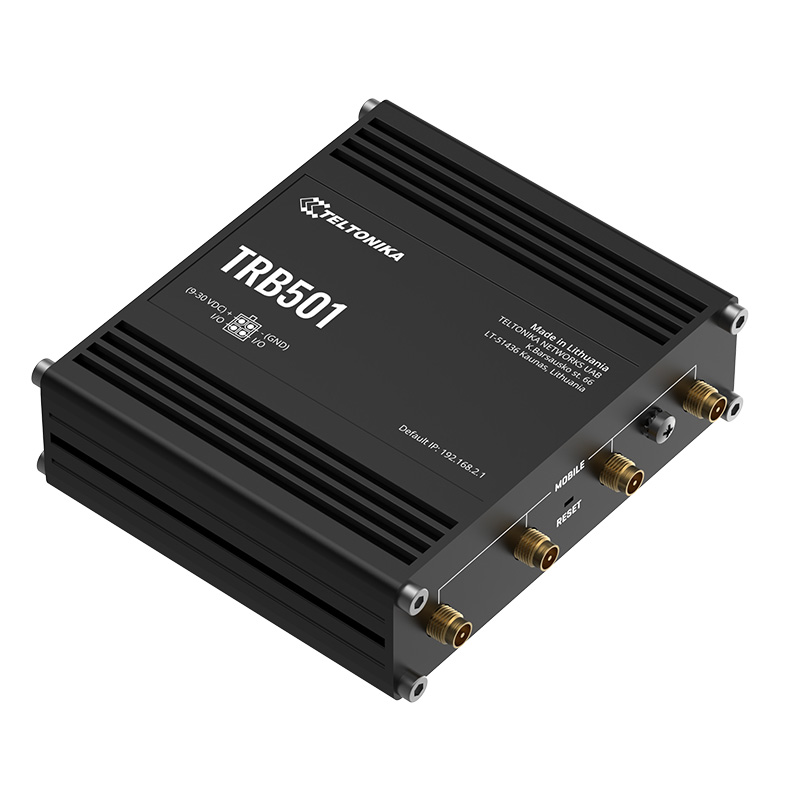

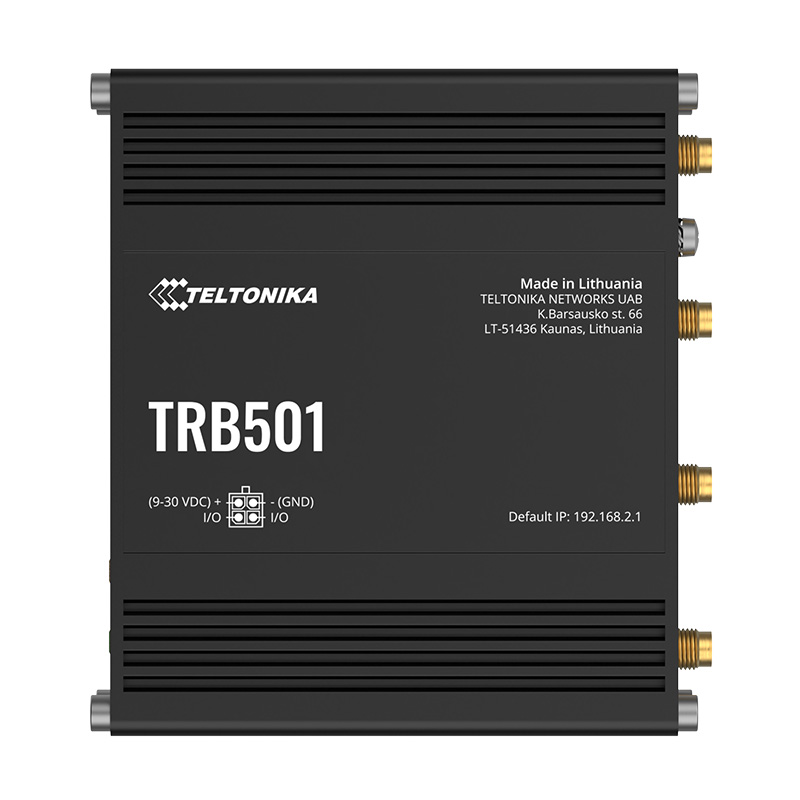

Teltonika TRB501 Gateway
The Teltonika TRB501 is a gateway with support for 5G mobile networks, offering speeds of up to 2.5 Gbps. One of its key advantages is the Ethernet interface and two configurable I/O ports, which allow for easy integration into industrial systems. The gateway also ensures reliable connectivity to 4G LTE CAT 19 and 3G networks. It supports both SA (Standalone Architecture) and NSA (Non-Standalone Architecture) for full utilization of 5G infrastructure. The main difference between NSA and SA is that NSA relies on 4G radio access network elements, while SA connects 5G devices directly to the 5G core network, with signaling completely independent of 4G.

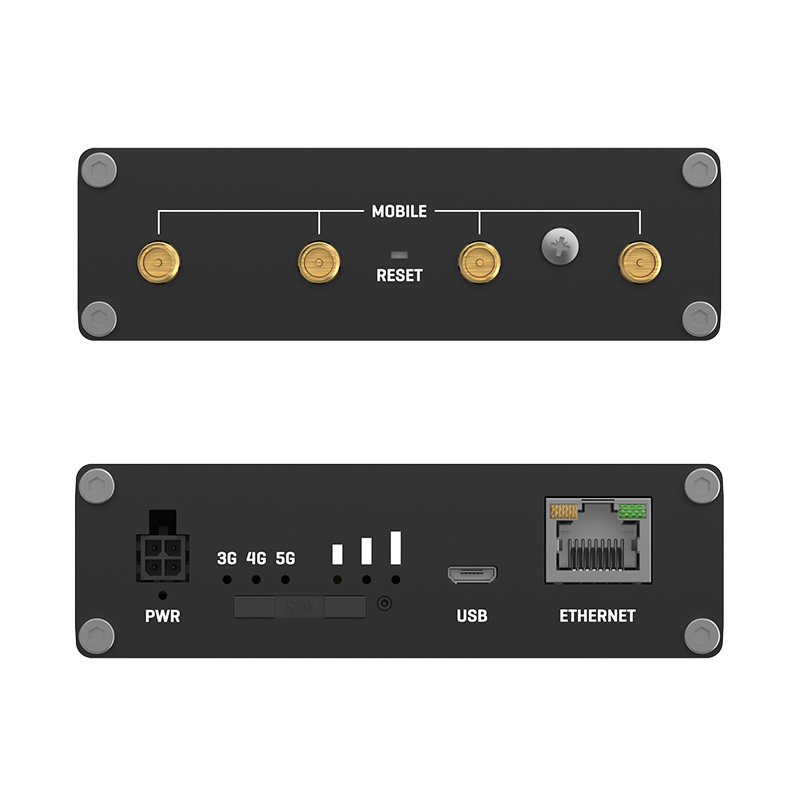

The device is equipped with four SMA antenna connectors and a power connector. It also includes a SIM slot and an RJ45 Ethernet port supporting 10/100/1000/2500 Mbps.
Data security is ensured by a wide range of software features, including SMS control, firewall, OpenVPN, IPSec, and RMS. Supported network protocols include TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP(S), FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), and VXLAN.
Teltonika TRB501 is ready for industrial IIoT applications thanks to its support for Modbus, DNP3, and DLMS protocols, enabling seamless integration into SCADA systems, smart grids, and telemetry solutions.
The industrial gateway runs on RutOS – an operating system based on OpenWRT Linux, which is a major advantage when choosing Teltonika routers. RutOS offers advanced security features and full compatibility with the Remote Management System (RMS).
Use Case Example – Remote Control of Heavy Machinery:
The data throughput of 4G technology is no longer sufficient for demanding tasks such as remote operation of heavy construction machinery. Workers in extreme conditions still cannot enjoy the comfort of remote work that many other professions benefit from. However, thanks to 5G technology and the TRB501 industrial gateway, this vision is becoming a reality.
TRB501 is equipped with a 3GPP Release 16 modem, which enables 5G carrier aggregation, efficient spectrum usage, and significantly lower latency. This allows for real-time synchronization between the machine and its remote operator via virtual reality technology. The operator can control the machine from a comfortable remote station, while the equipment on-site responds instantly.
The TRB501 retains all the essential features of Teltonika’s previous 4G devices and adds a high-speed Ethernet port with a capacity of 2.5 Gb/s, ensuring reliable data flow even in demanding environments. Its compact and durable design makes it ideal for industrial use, where reliability is crucial.
TRB501 opens up new possibilities for professions that previously required physical presence. With this gateway, even construction work can become more comfortable – and remote, in slippers.
The TRB501 industrial gateway, housed in a rugged aluminum casing, is built to perform in harsh conditions.
Key features of the TRB500:
• Mobile technology: 5G, 4G (LTE CAT 20), 3G

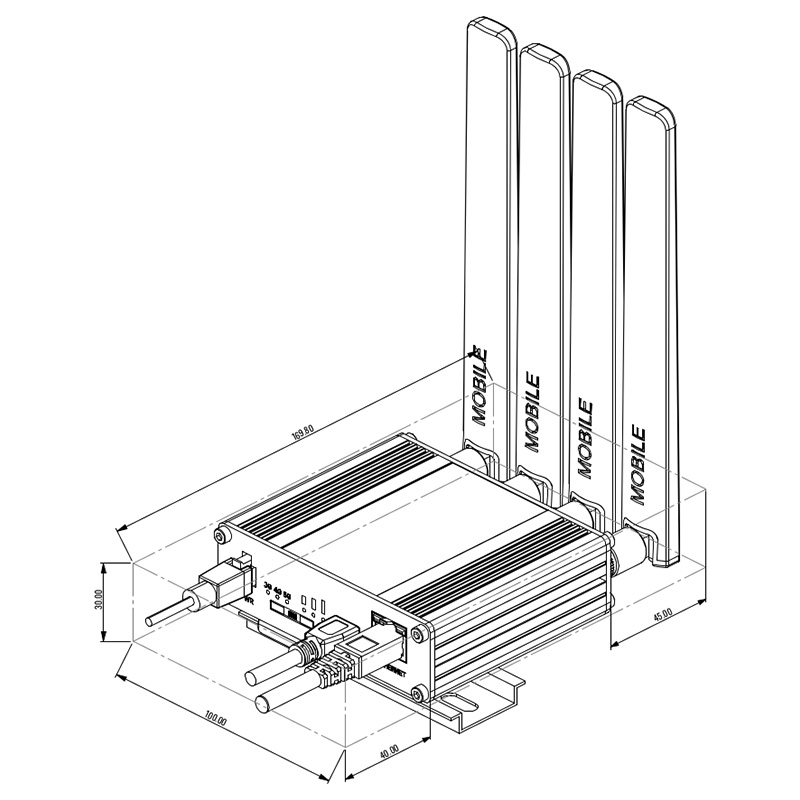

• Dimensions: 100 x 30 x 93.4 mm
• Wide range of supply voltages 9-30 V
• RutOS – an easy-to-use, secure and feature-rich operating system
• Teltonika Remote Management System support
• Ethernet interface
• Supports auto MDI/MDIX crossover
• Technologies: LTE (Cat M1), NB-IoT, EGPRS
• Mounting on a DIN rail
• Degree of protection: IP30
Standard package contains:
• Teltonika TRB501 Gateway
• 9 W PSU
• 4 x Mobile antennas (swivel, SMA male)
• Micro-USB cable (0.8 m)
• Ethernet cable
• SIM Adapter kit
• QSG (Quick Start Guide)
For this gateway Teltonika TRB500 you can buy the Teltonika BAT120 backup power supply, which takes over the power supply of the router for up to 6 hours in the event of a power failure.
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet.
