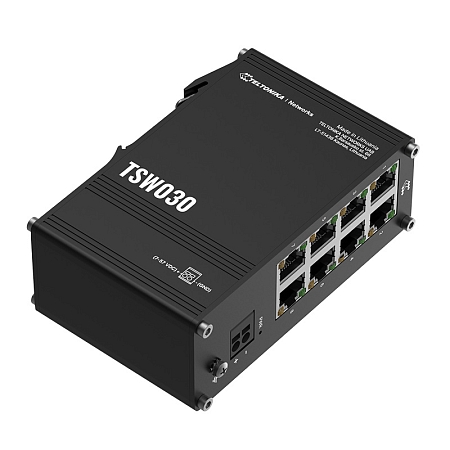

Teltonika TSW030 Switch
The Teltonika TSW030 is an affordable unmanaged Ethernet switch with eight RJ45 ports and an integrated DIN rail mount. It offers easy use without the need for configuration and installation.
This compact industrial Ethernet switch, Teltonika TSW030, is equipped with a 2-pin power input. The Teltonika TSW030 compact industrial Ethernet switch is equipped with a 2-pin power input. The TSW030 has a wide voltage range of 7-57 VDC and low power consumption, only up to 0.5W when idle and up to 1.5W maximum. This makes this plug-and-play switch ideal for industrial applications that require connecting up to eight devices.
Eight RJ45 ports with 10/100 Mbps speed provide stable and reliable connectivity, which is sufficient for most industrial applications where high throughput is not required.
Key Features:
• All LAN ports support automatic MDI/MDIX switching
• 8× Ethernet port with 10/100 Mbps speeds
• Plug-n-Play, no additional configuration required
• Support for IEEE 802.3i, 802.3u, 802.3ab, 802.3x, and 802.3az standards
• Integrated DIN rail mount
• 2-pin industrial power input for flexible use
• Low power consumption: 0.5 W when idle, max. 1.5 W
• Power supply: 7–57 VDC (power adapter not included)
• Operating temperature: -40 °C to 75 °C
• Degree of protection: IP30
• Dimensions: 113.1 × 41.2 × 74.6 mm
• Weight: 256 g
Package contains:
• Switch Teltonika TSW030
• QSG (Quick Guide)
We recommend using the complete user manual and documents for configuration, official materials can be found here.
Quick Start Guide Video
More information can be found in the attached datasheet and quick manual.
