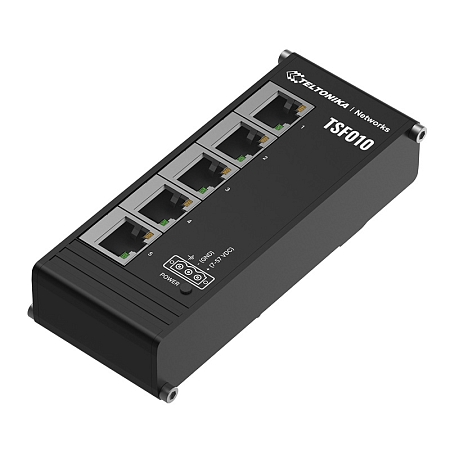

Teltonika TSF010 Switch
Teltonika TSF010 Flat is an unmanaged Ethernet switch with a flat design created for industrial environments. This plug-and-play switch offers easy installation without the need for configuration, which is ideal for quick implementation.
With five RJ45 ports and 10/100 Mbps speed, it provides stable and reliable connectivity, suitable for most industrial applications where high throughput is not required. An additional advantage is the 3-pin power input and 7-57 VDC range. Given its compact dimensions of 113 x 28 x 50 mm and low weight of 142 g, this switch is flexible and easily integrated into industrial cabinets.
Key Features:
• All LAN ports support automatic MDI/MDIX switching
• 5× Ethernet port with 10/100 Mbps speeds
• Plug-n-Play, no additional configuration required
• Support for IEEE 802.3i, 802.3u, 802.3ab, 802.3x, and 802.3az standards
• Integrated DIN rail mount
• 3-pin industrial power input for flexible use
• Power supply: 7–57 VDC (power adapter not included)
• Operating temperature: -40 °C to 75 °C
• Degree of protection: IP30
• Dimensions: 113 × 28 × 50 mm
• Weight: 142 g
Package contains:
• Switch Teltonika TSF010
• 3-pin power connector
• QSG (Quick Guide)
We recommend using the complete user manual and documents for configuration, official materials can be found here.
Quick Start Guide Video
More information can be found in the attached datasheet and quick manual.
