Teltonika Switch SWM282 PoE+
Teltonika SWM282 is a next-generation configurable PoE+ switch (802.3af/at) that combines high performance, flexible management, and support for industrial protocols.
Ports and Performance

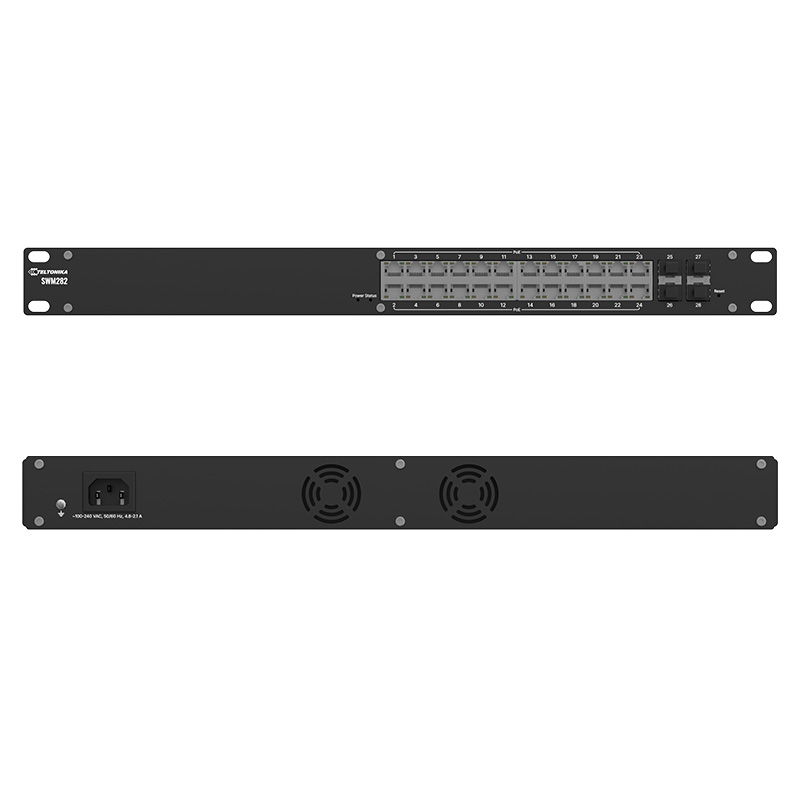

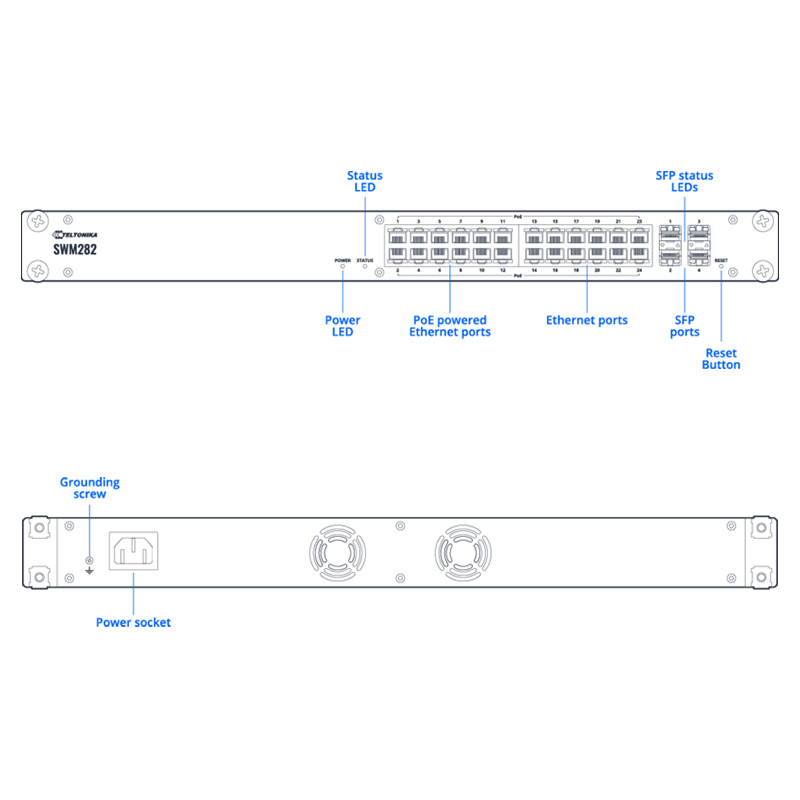

The SWM282 PoE+ switch features a total of 24 ports, including 12 PoE+ Gigabit ports delivering up to 30 watts per port with a total PoE power budget of 300 watts. It also includes 12 standard Gigabit Ethernet ports and 4 slots for SFP modules.
Benefits of PoE+ Power Supply
PoE+ power enables the delivery of both energy and data over a single cable, ideal for IP cameras, access points, and other network devices that do not require a separate power source.
Advanced Networking Functions
The switch supports advanced L2+ features such as VLAN segmentation, routing protocols, and enhanced security measures, allowing effective and secure network management.
Support for Industrial Protocols
Teltonika SWM282 is also compatible with industrial protocols such as Profinet, MRP (Media Redundancy Protocol), and EtherNet/IP.
Remote Management via RMS
Management and monitoring can be performed via the cloud solution RMS (Teltonika Remote Management System), which simplifies remote network administration. Teltonika provides a free 2-year subscription to RMS Management with this device.
The SWM282 is an ideal solution for industrial and corporate environments with demanding requirements for reliable connectivity.
Key features:
• Delivers power and data over 12 PoE+ ports with up to 30 W per port
• Advanced L2+ routing protocols and VLAN segmentation
• Power Consumption: Sleep Mode: 7.5 W / Max.: 325 W / PoE Max.: 300 W
• Comes with a free 2-year RMS Management subscription
• Integrated DIN rail mount
• Protection rating: IP30
• Operating temperature: 0 °C to 50 °C

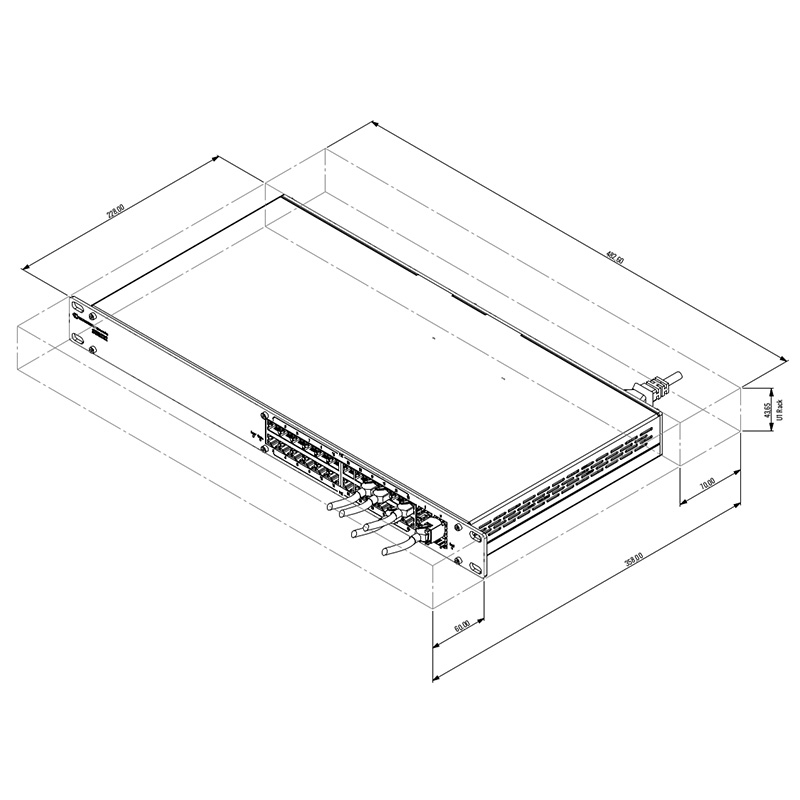

• Dimensions: 483 x 44 x 234 mm
• Weight: 2 291 g
Standard package contains:
• PoE+ Switch Teltonika SWM282 L2+
• QSG (Quick Start Guide)
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet and quick manual.
