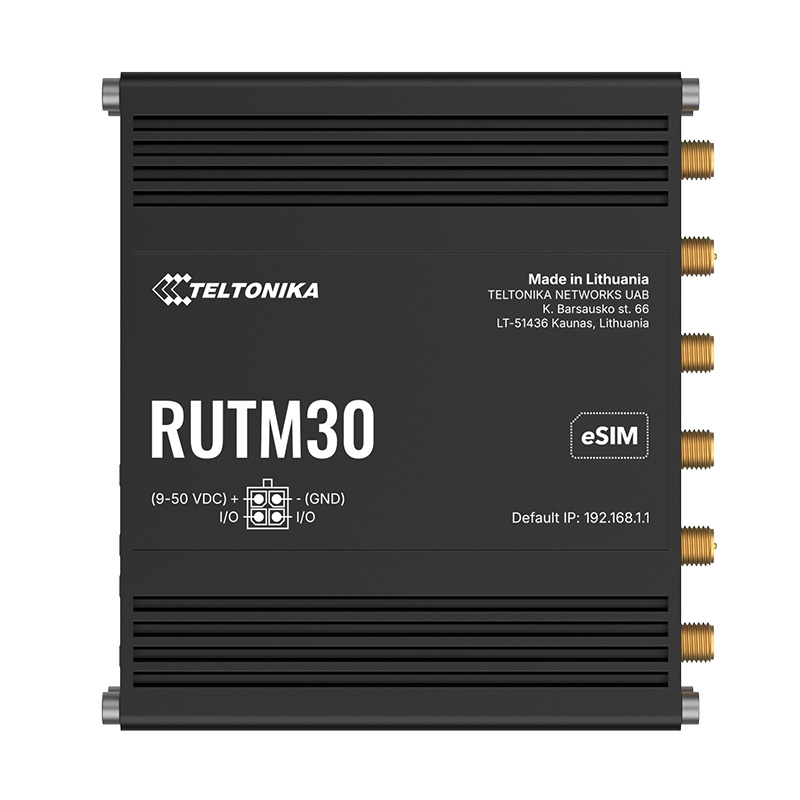

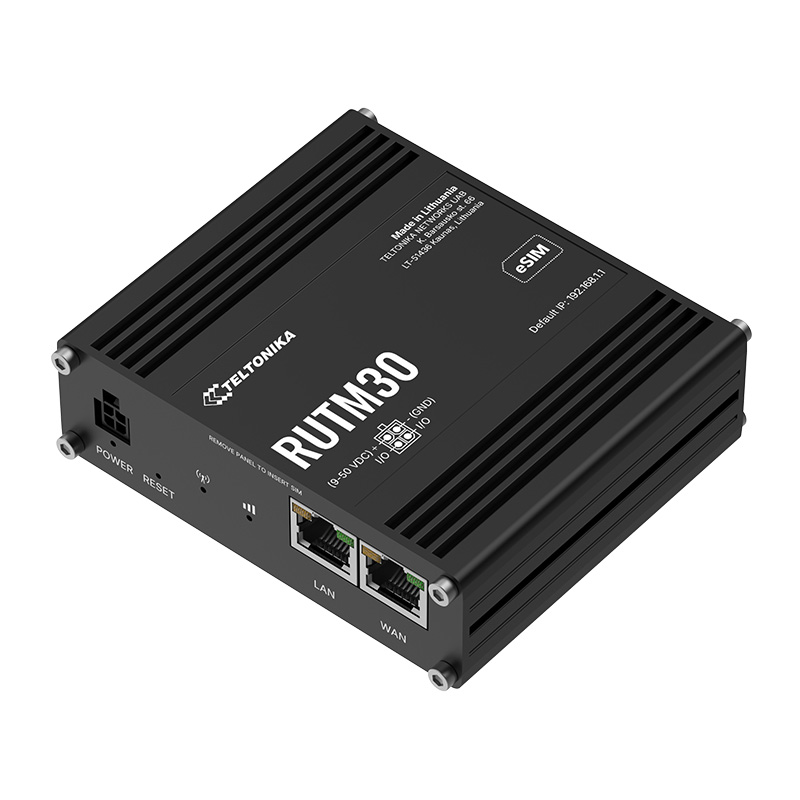

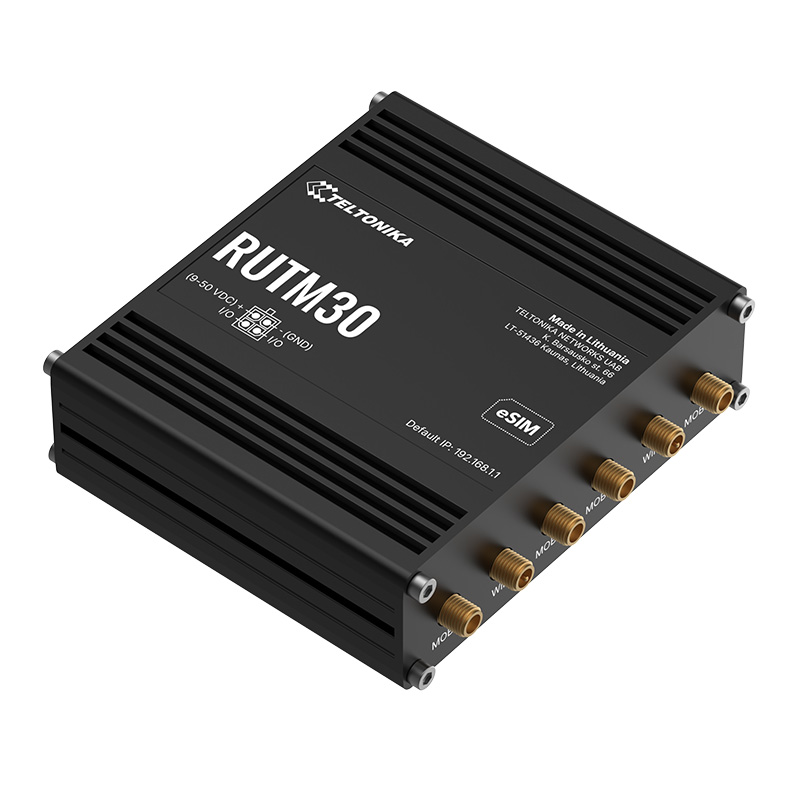

Teltonika RUTM30 – 5G Router for Demanding Applications
The Teltonika RUTM30 is a compact router designed for 5G mobile connectivity, ideal for data-intensive applications. It is a perfect solution for IoT and M2M deployments that require high-speed connectivity, easy configuration, and remote access capabilities.

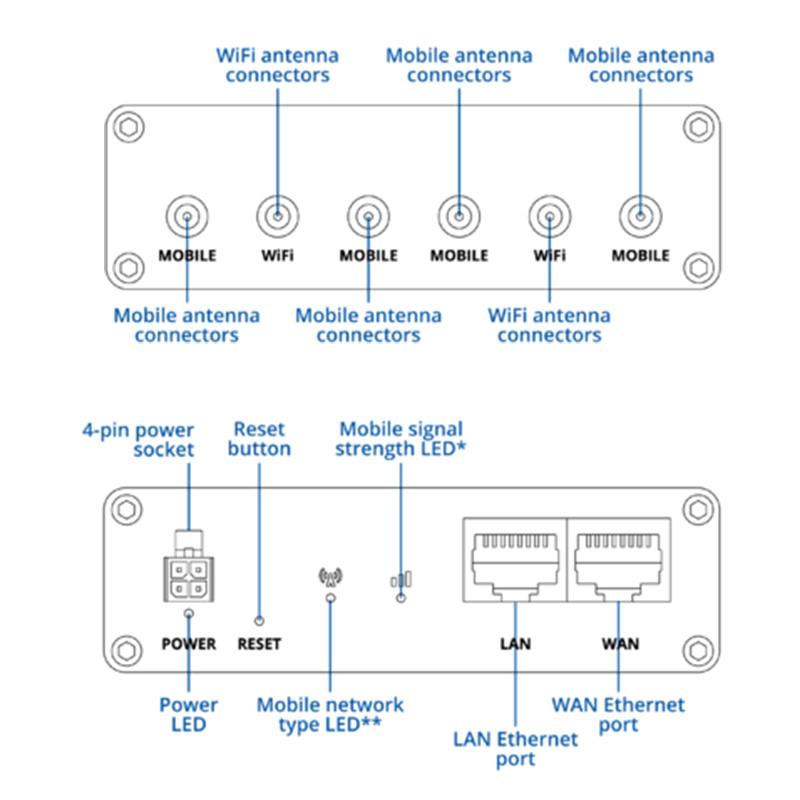

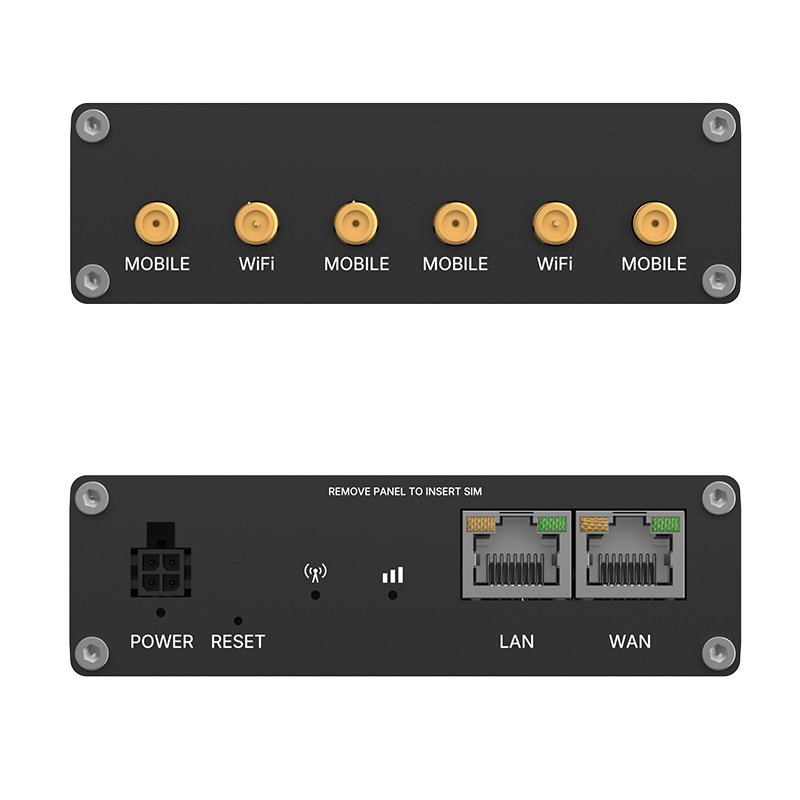

Interfaces and Network Capabilities
The router is equipped with two Gigabit Ethernet ports (1 x WAN 10/100/1000 Mbps and 1 x LAN 10/100/1000 Mbps) and dual-band Wi-Fi. It also features a digital input and output for remote control and monitoring. A wide range of interfaces ensures long-term network scalability and easy upgrades.
Expandability and Compatibility
Teltonika RUTM30 supports dual SIM cards and multiple networks, including eSIM™ technology. It is backward compatible with 3G and 4G/LTE Cat 19, ensuring fast and stable connectivity even in areas without 5G coverage. With dual SIM failover functionality, the router provides reliable data redundancy, maintaining continuous operation even in environments with weak signal coverage.
Support for 5G SA and NSA Architectures
RUTM30 is compatible with both SA (Standalone Architecture) and NSA (Non-Standalone Architecture) 5G infrastructures, ensuring high-speed and reliable connectivity. The main difference is that NSA uses elements of the 4G radio access network, while SA connects 5G devices directly to the 5G core network, with signaing independent of 4G.
Advanced Security and Network Protocols
A wide range of software functions, including SMS control, firewall, OpenVPN, IPSec, and RMS provides data security on this router. Supported network protocols include TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), and VXLAN.
RutOS Operating System and Remote Management
The industrial gateway Teltonika RUTM51 is equipped with the RutOS system. It is an operating system based on Linux OpenWRT, supporting industrial protocols and various VPN networks. This system offers advanced security features and compatibility with the RMS remote management platform, making it a strong advantage when choosing Teltonika routers.
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/
Key features of Teltonika RUTM30:
• Support for 5G and 4G LTE Cat 19 networks for maximum speed and reliability
• Support for 3G networks
• Support for DUAL SIM and eSIM
• Five Gigabit Ethernet ports RJ45, 10/100/1000 Mbps
• Ethernet interfaces: - 1 x WAN port 10/100/1000 Mbps, complies with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- 41x LAN port 10/100/1000 Mbps, complies with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
• RutOS operating system with VPN and industrial protocols support
• Support for SA (Standalone Architecture) and NSA (Non-Standalone Architecture)
• DIN rail mounting
• Protection level: IP30

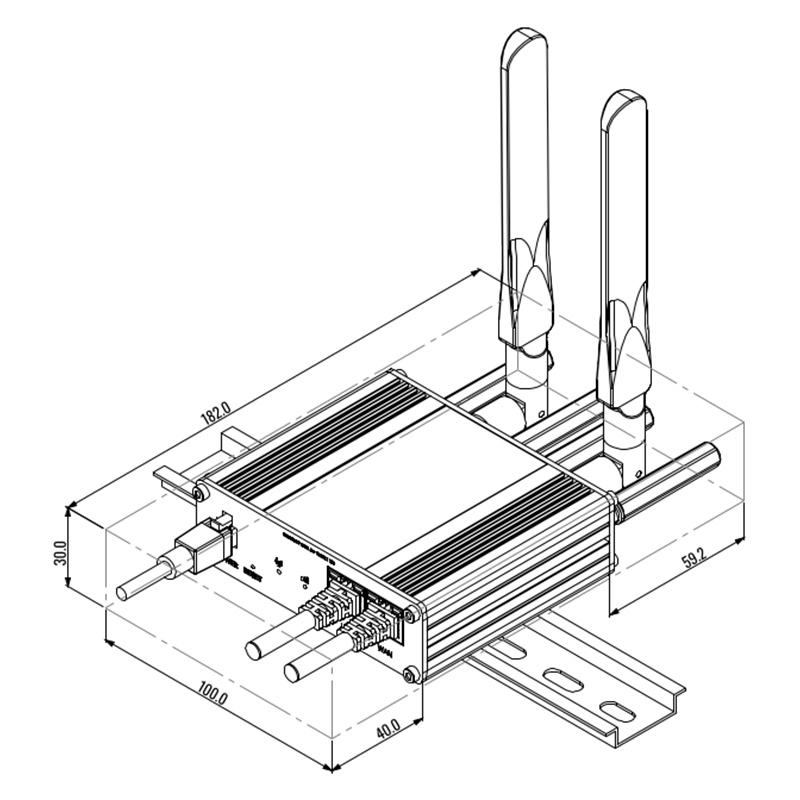

• Dimensions: 100 x 30 x 93.7 mm
• Weight: 319 g
Standard package contains:
• 5G LTE router RUTM30
• 18 W power supply
• 4 x 5G Mobile antennas (swivel, SMA male)
• 2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• Ethernet cable (length 1.5 m)
• SIM adapter set
• 1 x hex key
• QSG (Quick Start Guide)
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet.
