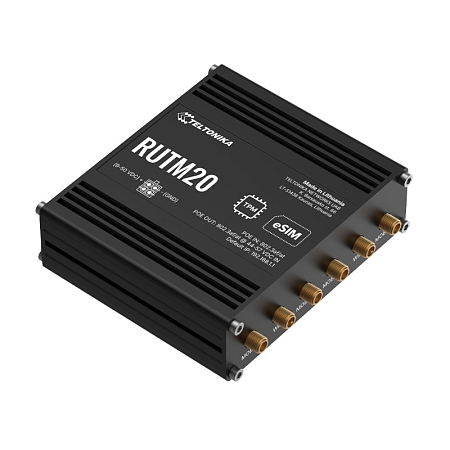

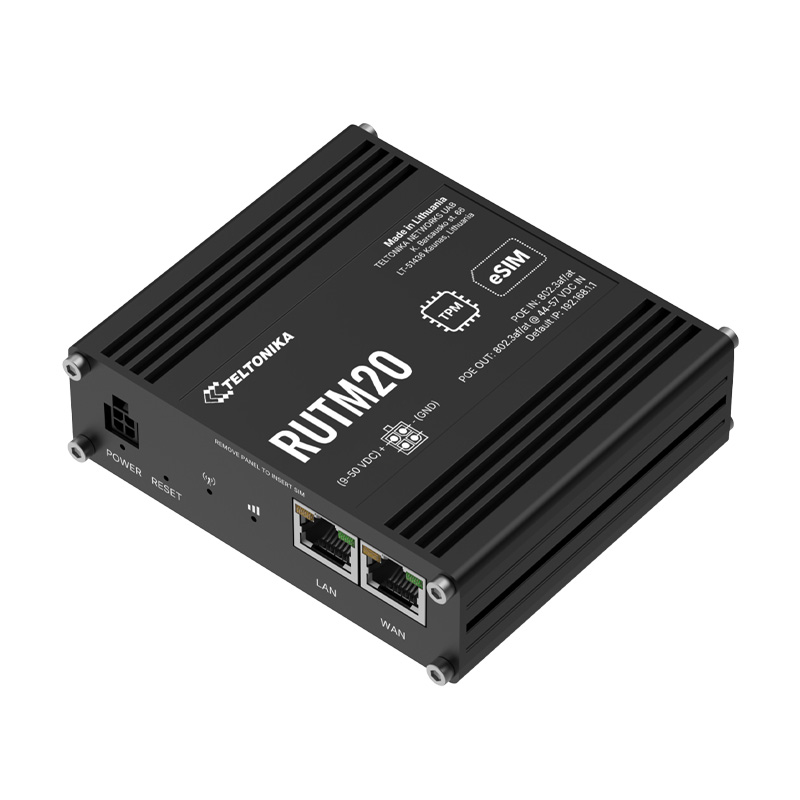

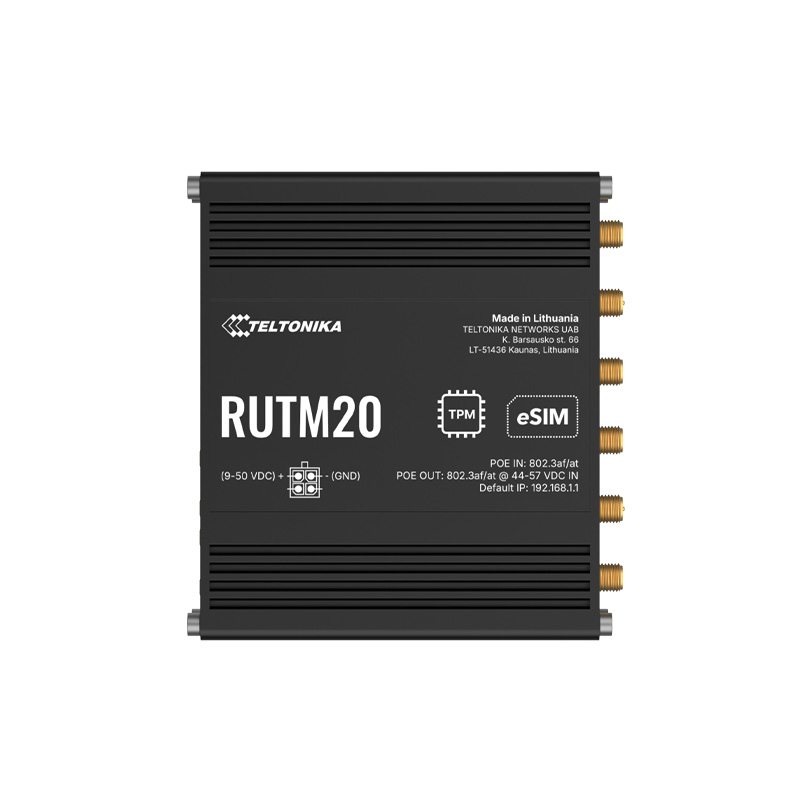

Teltonika RUTM20 5G Router
Teltonika RUTM20 is an ultra-compact industrial 5G router designed for IoT and IIoT solutions. This router combines high 5G network speeds with minimal dimensions, making it an ideal choice for space-constrained applications where maximum data throughput is required.
Maximum performance in a compact body
The 5G router delivers top-level performance in a compact form factor. Thanks to advanced 5G Sub 6GHz technology, it enables data download speeds of up to 3.4 Gbps. It is equipped with a Telit modem ensuring maximum global coverage. For data transmission, it also features dual-band WiFi 5 and two Gigabit Ethernet ports.
Flexible connectivity management and eSIM
The integrated eSIM enables remote profile management without the need for physical access to the device. Combined with two physical SIM slots and an automatic failover feature, the device ensures uninterrupted operation even in the most demanding conditions.
Advanced power supply via PoE
Router installation is very simple thanks to active PoE power support according to 802.3af and 802.3at standards. A unique advantage is the combination of PoE in and PoE out functions, allowing the router to be powered through one port while simultaneously powering another device, such as an IP camera, through the second port. This solution significantly simplifies installation and reduces cabling costs.
Application examples
The RUTM20 5G router is suitable for retail environments and POS terminals, providing stable and fast connectivity even in limited spaces. In transportation, it serves as a compact base for vehicle telematics and advanced onboard systems.
Remote management via RMS and RutOS with advanced security
The industrial 5G router RUTM20 runs RutOS, which supports industrial protocols and various VPN services. The operating system is based on Linux OpenWRT, which is a major advantage when selecting Teltonika routers. The system provides advanced security features and compatibility with the Remote Management System, allowing users to change device configurations and monitor device status even when devices do not have public IP addresses.
Try RMS for free by clicking the link and registering your free 30 day demo account: https://rms.teltonika.lt/
Key features of RUTM20:

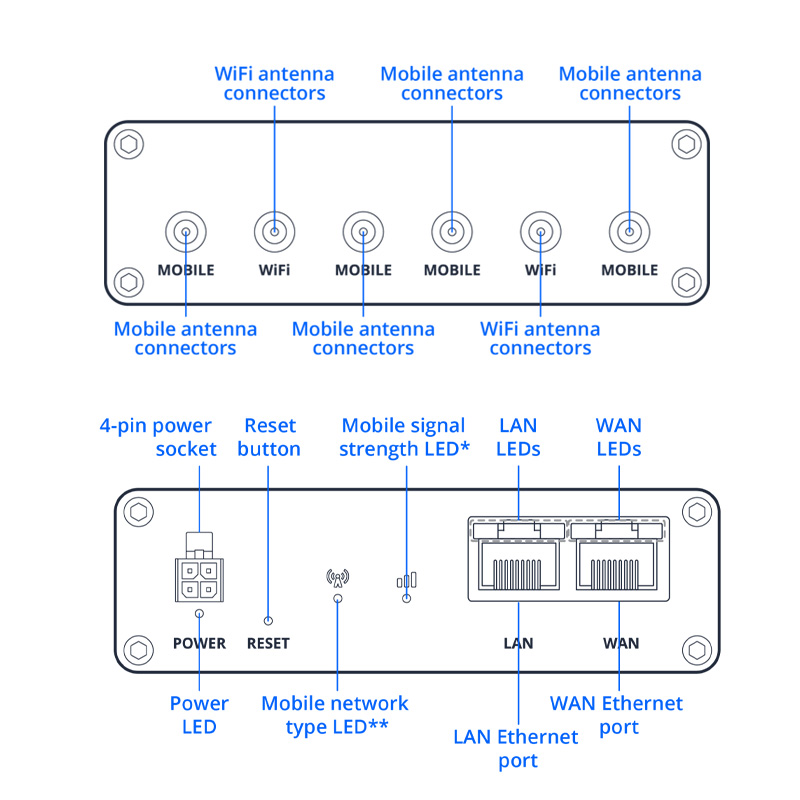

• Ethernet interfaces: -1× WAN port 10 or 100 or 1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI or MDIX crossover
-1× LAN port 10 or 100 or 1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI or MDIX crossover
• Global Telit modem
• WiFi 5 support
• Mobile technologies supported: 5G, 4G LTE Cat 19, 3G
• Wide input voltage range 9 to 50 V
• Dual SIM and eSIM support
• RutOS secure and easy to use operating system
• Teltonika Remote Management System support
• Support for Standalone and Non Standalone 5G architectures
• DIN rail mounting
• Protection rating IP30
• Dimensions: 100 × 30 × 93.7 mm
• Weight: 319 g
Package contents:
• RUTM20 5G router
• 18 W power supply
• 4× 5G antenna, magnetic mount, SMA male
• 2× WiFi antenna, magnetic mount, RP SMA male
• Hex key
• Ethernet cable, length 1.5 m
• SIM adapter kit
• Quick Start Guide
We recommend using the complete user manual and documents for configuration, official materials can be found here.
Technical parameters can be found in the attached datasheet.
