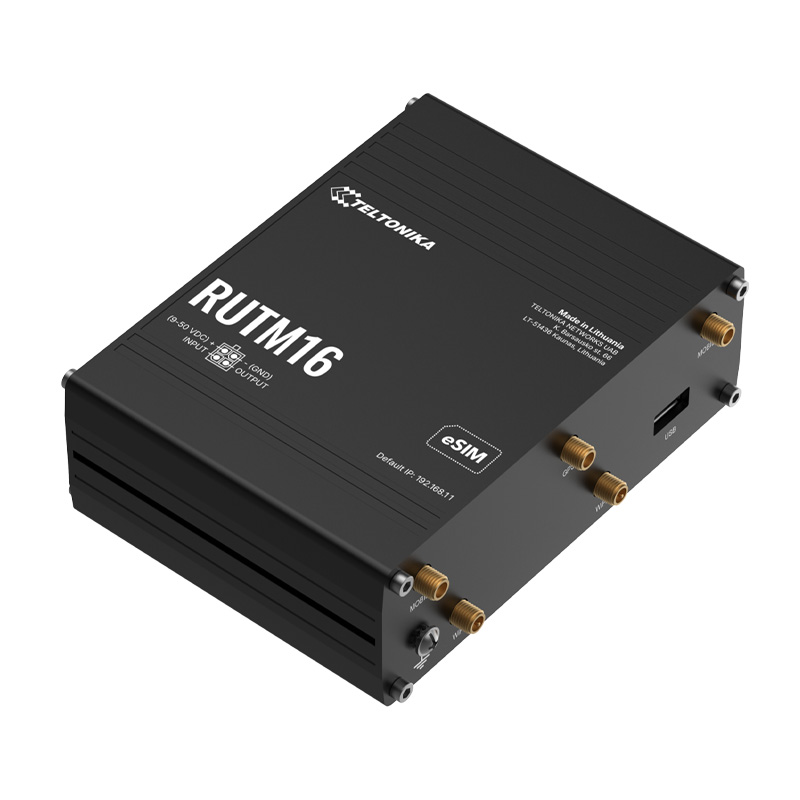

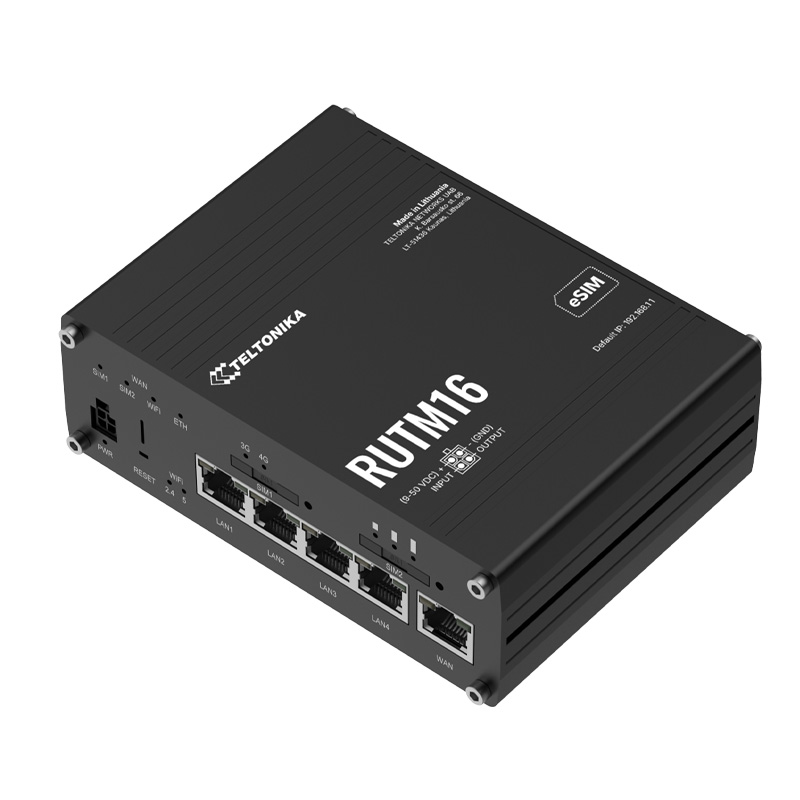

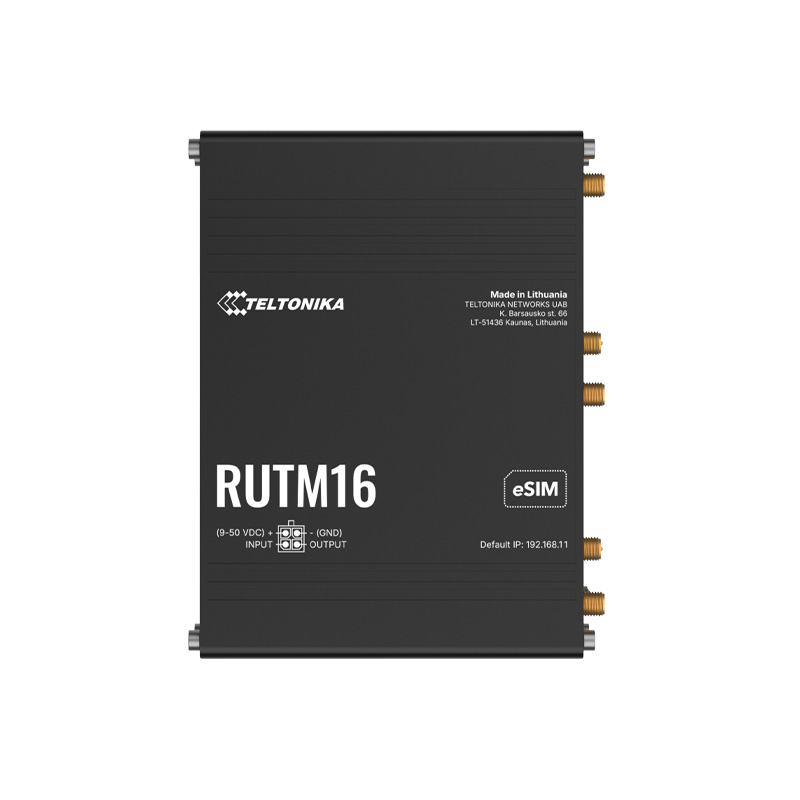

Teltonika RUTM16 - industrial LTE Cat 6 (Global) router with Telit modem
Teltonika RUTM16 represents a new generation of industrial LTE routers designed for demanding IoT projects and global deployments. Equipped with a Telit modem, it delivers LTE Cat 6 speeds and broadband support.
High performance and flexible connectivity
The device provides global connectivity through LTE Cat 6 technology, ensuring stable internet access with download speeds up to 300 Mbps and upload speeds up to 50 Mbps. The integrated Telit modem guarantees seamless compatibility with operators worldwide. Maximum connection management flexibility is achieved by combining two SIM slots with an integrated eSIM, enabling remote operator switching without physically accessing the device. For high-speed data transfer within local networks, the router includes five gigabit Ethernet ports, complemented by dual-band WiFi 5 with Mesh and Fast Roaming features for stable wireless coverage.
Wide support for VPN and industrial protocols
Teltonika RUTM16 supports a broad range of VPN options, including Tailscale, OpenVPN, IPsec, and ZeroTier, along with key M2M communication protocols such as MQTT, Modbus, DNP3, and DLMS.
Remote management via RMS
Another advantage is support for RMS functions. The Remote Management System enables remote management and monitoring of all Teltonika network devices. Users can modify configurations and collect device status information even when devices do not have public IP addresses. Try RMS for free by visiting the link below and registering for your free 30-day demo account.
PROLINK: https://rms.teltonika.lt/
Ideal application areas
This router is suitable for industrial automation and robotics, transportation and logistics sectors, and road infrastructure deployments. It is also an ideal component for Smart City infrastructure, powering public WiFi hotspots or surveillance systems. In the retail sector, it can serve as a robust primary or backup connection for payment terminals.
Key specifications:
• Mobile network: 4G LTE Cat 6, 3G
• CPU: MediaTek dual core 880 MHz
• RAM: 256 MB DDR3

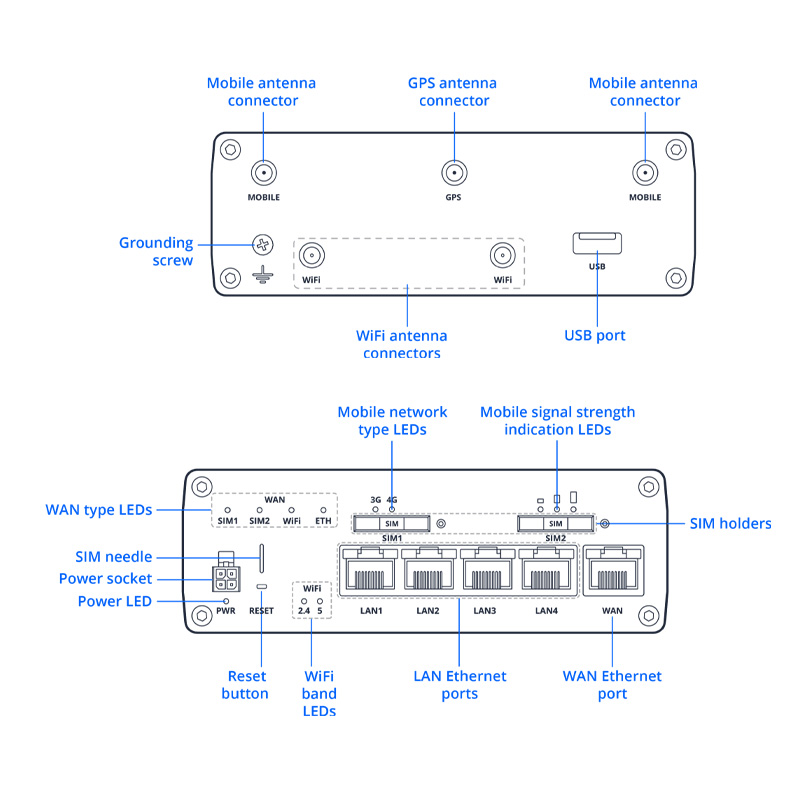

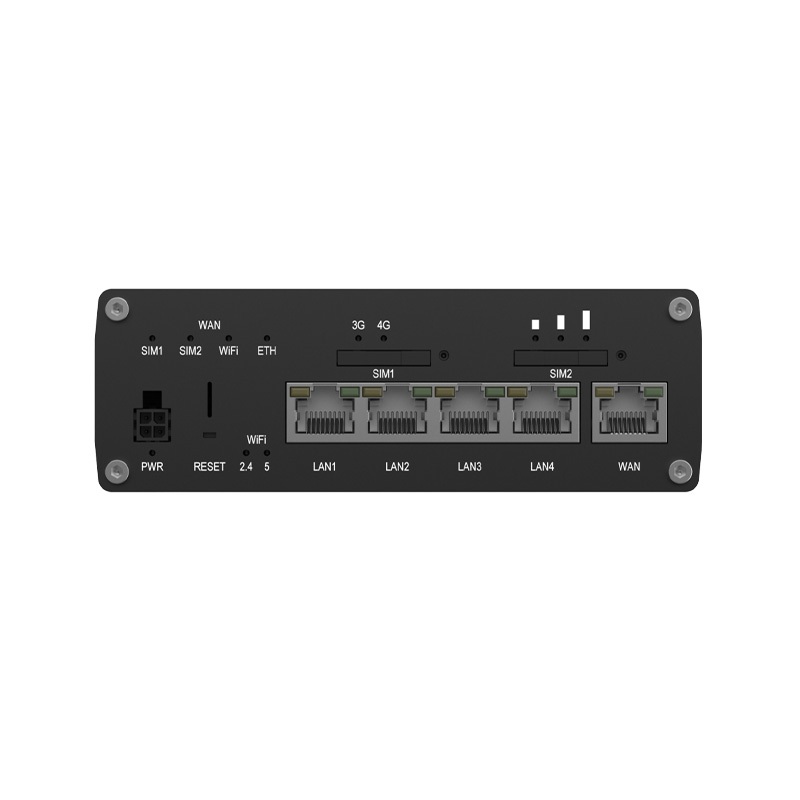

• Interfaces: 5× RJ45 ports 10 100 1000 Mbps, 1× USB A port, digital I O
• GNSS: GPS, GLONASS, BeiDou, Galileo for positioning support
• Power supply: 9 to 50 VDC via 4 pin automotive connector or passive PoE
• Operating temperature: 40 °C to 75 °C
• Multiple secure VPN services supported
• Protection rating: IP30

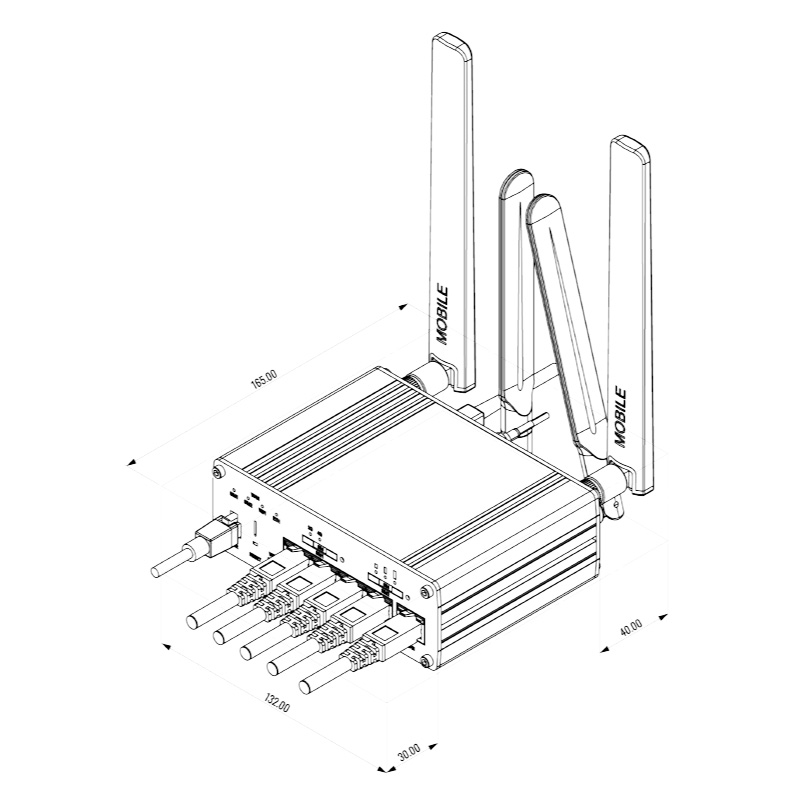

• Dimensions: 132 × 44.2 × 104 mm
• Weight: 530 g
Package contents:
• RUTM16 router
• Power supply 18 W
• 2× LTE antennas SMA
• 2× WiFi antennas RP SMA
• 1× GNSS antenna SMA, magnetic base, 3 m cable
• Ethernet cable 1.5 m
• SIM adapter kit
We recommend using the complete user manual and documents for configuration. Official materials can be found here.
More information can be found in the attached datasheet.
