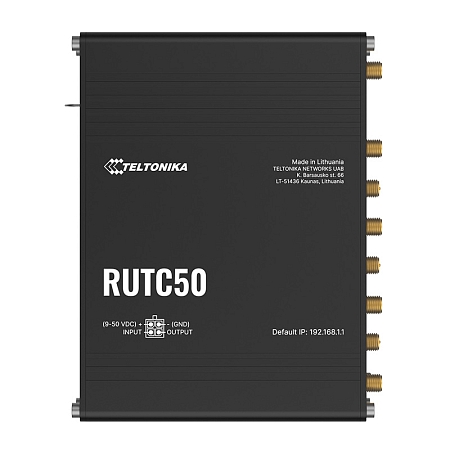

Teltonika RUTC50 5G router
Teltonika RUTC50 is a 5G router with dual-band Wi-Fi 6 technology with MIMO. This technology provides a high-speed connection to each user who joins the network, and other users do not significantly affect the transfer speed. The 5G router offers ultra-high mobile speeds of up to 3.4 Gb/s.
Thanks to the Dual SIM function, the device can automatically switch to the second SIM card in case of problems with the current connection and increases the reliability of data services.
The 5G router also ensures a reliable connection to 4G LTE Cat 20 and 3G networks. It supports SA and NSA architectures for the use of 5G infrastructure. The main difference between NSA (Non-Standalone Architecture) and SA (Standalone Architecture) is that, NSA uses the radio access network elements of the 4G network, while the SA variant connects 5G devices directly to the 5G backbone network, the control signalling does not depend on the 4G network at all.
The Teltonika RUTC50 5G router includes: 2x SIM slot, 5x Gigabit Ethernet port, 3x SMA antenna connector for GSM networks, 3x RP-SMA antenna connector for WiFi, 1x SMA antenna connector for GNSS for location tracking, 5x RJ-45 port and 1x USB port.
Data security is ensured by a wide range of software functions, such as control of SMS messages, firewall, OpenVPN, IPSec, RMS. Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN(WOL) are also available.
The RUTC50 industrial 5G router is equipped with the RutOS system.It is an operating system based on OpenWRT Linux, which is a big plus for choosing Teltonika routers. This system offers advanced security features and compatibility with the RMS remote message system.
Key features of the RUTC50:
• Ethernet interface
• Mobile technology: 5G, 4G (LTE CAT 20), 3G
• Dimensions: 130.4 x 42.6 x 103.4 mm
• Wide range of supply voltages 9-30 V
• RutOS – an easy-to-use, secure operating system
• Teltonika Remote Management System support
• Support for SA (Standalone Architecture) and NSA (Non-Standalone Architecture)
• Mounting on a DIN rail
• Degree of protection: IP30
Standard package contains:
• RUTC50 router 5G
• Power supply 24W
• 4 x 5G antenna (rotating, SMA male)
• 3 x WiFi antenna (magnetic, RP-SMA male, 1.5 m cable)
• 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
• Ethernet cable (length 1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet.
