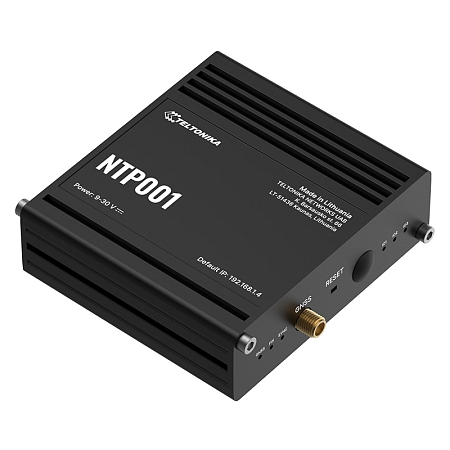

Teltonika NTP001 Server NTP
The Teltonika NTP001 is an affordable stratum-1 server designed for highly accurate time synchronization in compliance with UTC, suitable for both private and public networks without requiring an internet connection. By utilizing GNSS technology (GPS, GLONASS, BeiDou, Galileo, and QZSS), it provides reliable and precise time fully traceable to UTC.
Easy installation and wide connectivity
With its simple plug-and-play installation, broad support for communication interfaces—including RS232, RS485, RJ45, I/O and advanced security features, the NTP001 is an ideal solution for systems requiring precise time synchronization.
RutOS operating system and industrial protocol support
The NTP server is equipped with the RutOS system, which supports various industrial protocols (TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT). RutOS is a Linux-based operating system built on OpenWRT, a significant advantage for selecting Teltonika routers.
Durable construction for industrial use
The NTP server is housed in a robust anodized aluminum casing, ensuring high resistance to extreme temperatures ranging from -40 °C to 75 °C. This design allows it to operate reliably in demanding industrial conditions and withstand harsh environmental factors. It is suitable for use in industrial, telecommunications, medical, transportation, and security applications.
Key Features:
• Input Voltage: 9 - 30 VDC
• Ethernet Interface: 1 x LAN port, 10/100 Mbps
• RS232 Interface: 4-pin in a 16-pin terminal block (TX, RX, RTS, CTS)
• RS485 Interface: 4-pin in a 16-pin terminal block (D+, D-, R+, R-)
• 1 x SMA Antenna for GNSS
• RutOS Support: User-friendly and secure operating system
• Compatibility with Industrial Protocols: Modbus, TCP, MQTT, SNMP, and more
• DIN Rail Mounting
• Protection Rating: IP30
• Operating Temperature Range: -40 °C to 75 °C
• Dimensions: 82.6 x 25 x 83 mm
• Weight: 180 g
Standard package contains:
• Teltonika NTP001 GNSS NTP Time Server
• 16-pin Terminal Block
• Quick Start Guide (QSG)
We recommend using the complete user manual and documents for configuration, official materials can be found here.
Technical specifications are available in the attached datasheet.
