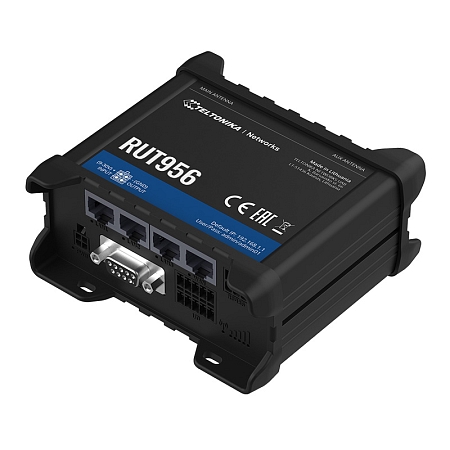

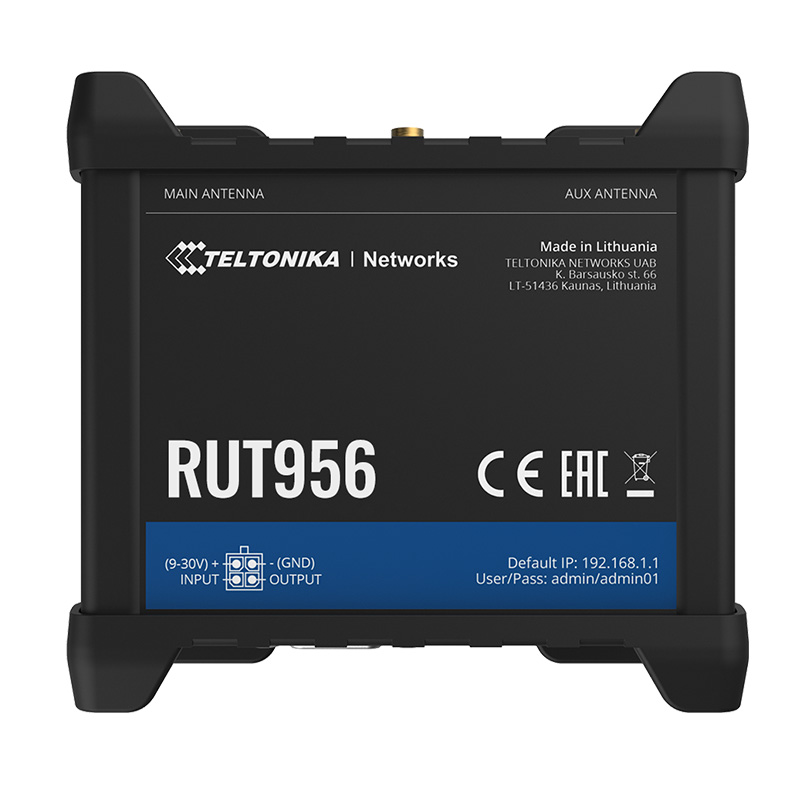

Teltonika LTE Router RUT956 - Quectel
This router (product code GM-RUT956) is equipped with a Quectel cellular module.
The Teltonika RUT956 is a highly reliable and powerful LTE router for professional applications. The RUT956 LTE router with support for WiFi, Ethernet and GNSS functions is designed for Wi-Fi/4G LTE CAT4/3G/2G/GNSS technologies.
Serial communication interfaces 4x RJ-45, RS-485 (6pin), RS-232 (DB9 socket) and a USB 2.0 port enable the connection of multiple devices, even older ones. The LTE router is also equipped with antenna connectors: 2x SMA connector (LTE), 1x SMA connector (GNNS), 2x RP-SMA connector (Wi-Fi). Digital and analogue I/O inputs and outputs facilitate device control, automation and event notification. Two SIM card slots allow you to use two different mobile service providers and build redundant 4G/LTE or 2G/3G connections with failover and fallback functions. Automatic WAN failover ensures solution continuity even if the main connection is lost.
Teltonika RUT956 has advanced industrial software features including Modbus, SNMP, TR-069, NTRIP, MQTT and many VPNs.
The RUT956 LTE ethernet router in robust aluminium housing is ideal for IoT devices and applications that require remote monitoring, such as vending machines, sensors in the energy industry and other network devices.
Teltonika RUT956 is equipped with the RutOS system. It is an operating system based on OpenWRT Linux, which is a big plus for choosing Teltonika routers. This system offers advanced security features and compatibility with the RMS remote message system.
Key Features of Teltonika RUT956:
• LTE Cat 4 support up to 150 Mbps
• Automatic switching to an available backup connection
• Dual SIM
• WAN failover
• Communication interface RS232 (DB9), RS485 (6-pin industrial socket)
• USB 2.0 interface
• 4x Ethernet ports (3x 10/100 Ethernet LAN, 1x 10/100 Ethernet WAN)
• Support Passive PoE
• Teltonika Remote Management System compatible
Package contains:
• Router RUT956
• 9 W PSU
• 2 x LTE antennas (magnetic mount, SMA male, 3 m cable)
• 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• GNSS antenna (adhesive, SMA male, 3 m cable)
• RS485 connector block
• I/O connector block
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
For this router RUT956 you can buy the Teltonika BAT120 backup power supply, which takes over the power supply of the router for up to 6 hours in the event of a power failure.
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet.
Quick Start Guide Video
The Quick Start Guide video guides you step-by-step through setting up the router from unpacking the box, inserting the SIM card, connecting the antennas, and logging into the administration.
