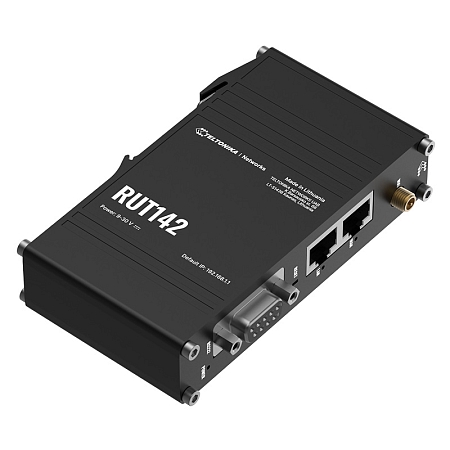

Teltonika Ethernet Router RUT142
Teltonika RUT142 is an industrial Ethernet router that stands out with enhanced network security for connected end devices. This router is equipped with two Ethernet ports, a 3-pin connector and an integrated DIN rail mount that allows for easy installation. The Teltonika RUT142 Ethernet router also has an RS232 interface, which ensures a continuous network connection for older devices.
The RUT142 router supports WiFi 4 and is compatible with VPN and industrial protocols such as Modbus, DLMS, DNP3 and OPC UA. With support for industrial protocols and the ability to efficiently manage both remote and local, this router ensures stable and trouble-free operation, making it a suitable and reliable solution for industrial applications. The robust aluminum housing and high-quality components allow the Teltonika RUT142 router to operate without problems at extreme temperatures from -40 °C to 75 °C.
Key features of the Teltonika RUT242:
• Ethernet interface: 1 × WAN port 10/100 Mbps
1 × LAN port 10/100 Mbps
• Integrated DIN rail mount
• WiFi mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
• Compatibility with industrial protocols such as Modbus, DLMS, DNP3 and OPC UA
• RMS support
• RutOS - an easy-to-use, secure operating system
• RS232 serial interface
• VPN support
• DIN rail mounting
• Degree of protection: IP30
• Dimensions: 113.10 × 25 × 68.6 mm
• Weight: 149.3 g
Package contains:
• Router Teltonika RUT140
• 3-pinconnector
• QSG (Quick Start Guide)
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/
We recommend using the complete user manual and documents for configuration, official materials can be found here.
Quick Start Guide Video
The Quick Start Guide video guides you step-by-step through setting up the router from unpacking the box, inserting the SIM card, connecting the antennas, and logging into the administration.
More information can be found in the attached datasheet.
