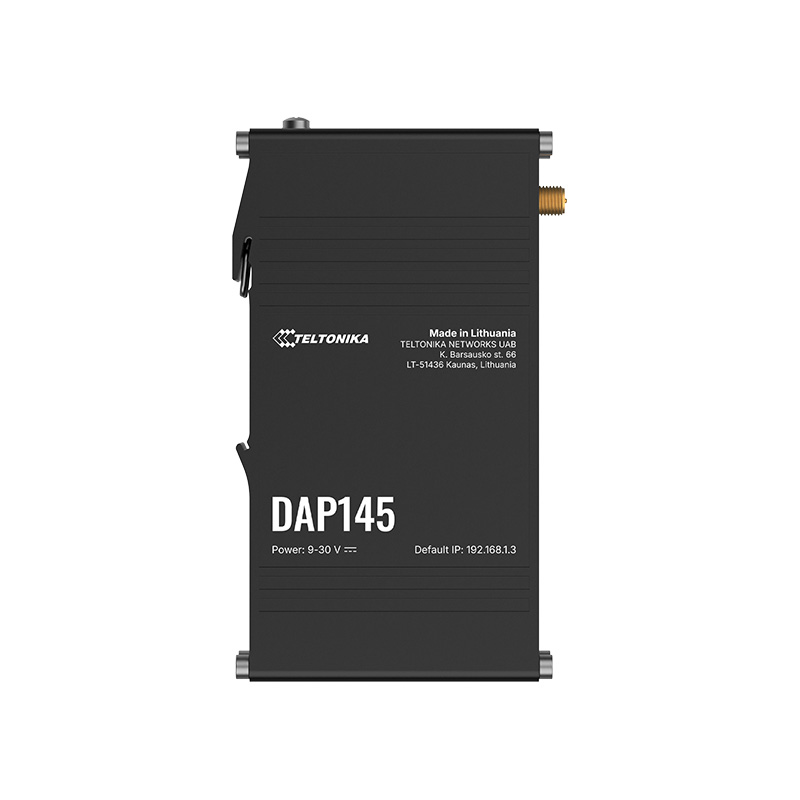

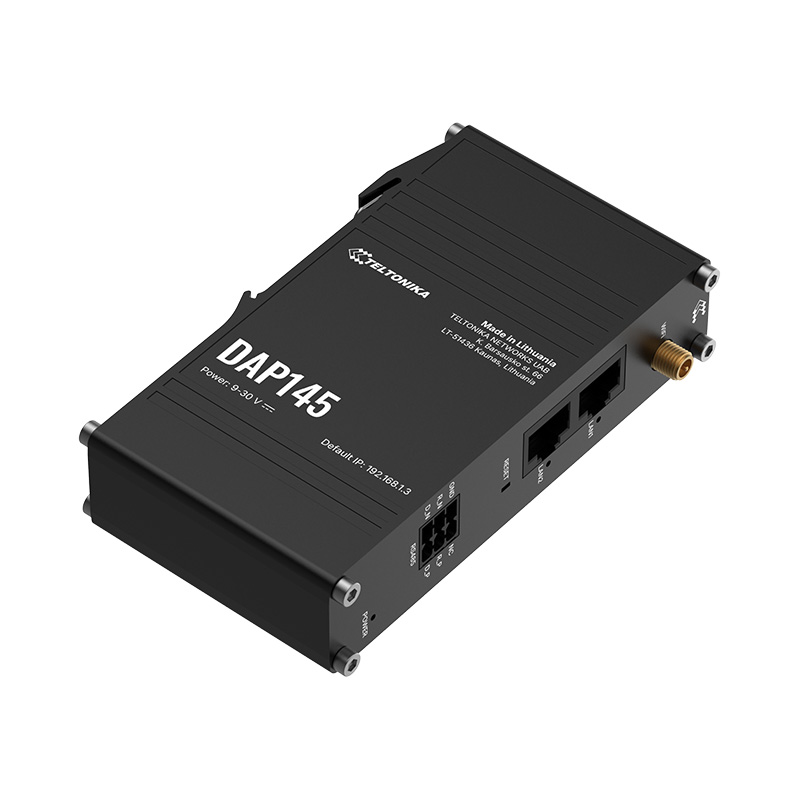

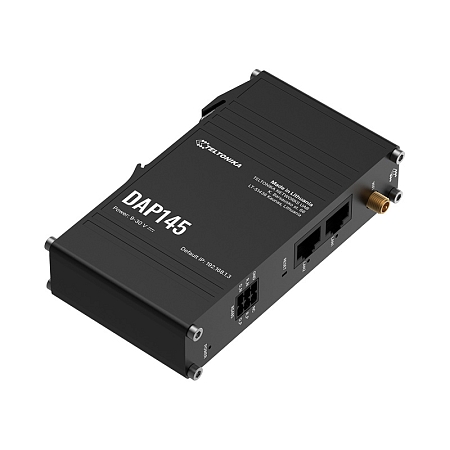

Teltonika DAP145

The Teltonika DAP145 is a robust Wi-Fi access point designed for industrial environments. It enables easy connection of wired industrial devices to modern IP networks without the need for extensive cabling. The device operates in Access Point, Station (STA), Mesh, or Fast Roaming modes and ensures direct conversion of serial communication to IP via its RS485 port.

Advanced RutOS tools, such as the Data to Server feature and broad support for industrial protocols, facilitate secure data collection to the cloud, all of which can be managed remotely via the RMS platform.

Seamless Integration of RS485 and Wi-Fi 4

The device excels at bridging traditional industrial standards with modern connectivity. It allows for the direct integration of serial interface devices into an IP network without the need for complex external converters. With full support for Serial-over-IP modes and protocols such as Modbus, OPC UA, and BACnet, communication between legacy technologies and new systems is smooth and highly efficient.

Flexible Wireless Modes and Mesh Connectivity

A major advantage is the versatile range of wireless network configuration options. The unit can be deployed as an Access Point (AP), Client Station (STA), or in advanced Mesh mode. This allows for easy coverage expansion even in large facilities without the risk of signal drops, ensuring a stable connection for all end devices in motion.

Maximum Industrial Durability in Harsh Environments

A robust aluminium housing and the ability to operate reliably in extreme temperatures ranging from -40 °C to +75 °C make this model an ideal choice for industrial environments such as production halls, energy hubs, and outdoor control cabinets exposed to demanding conditions.

Simple Installation and Compact Design

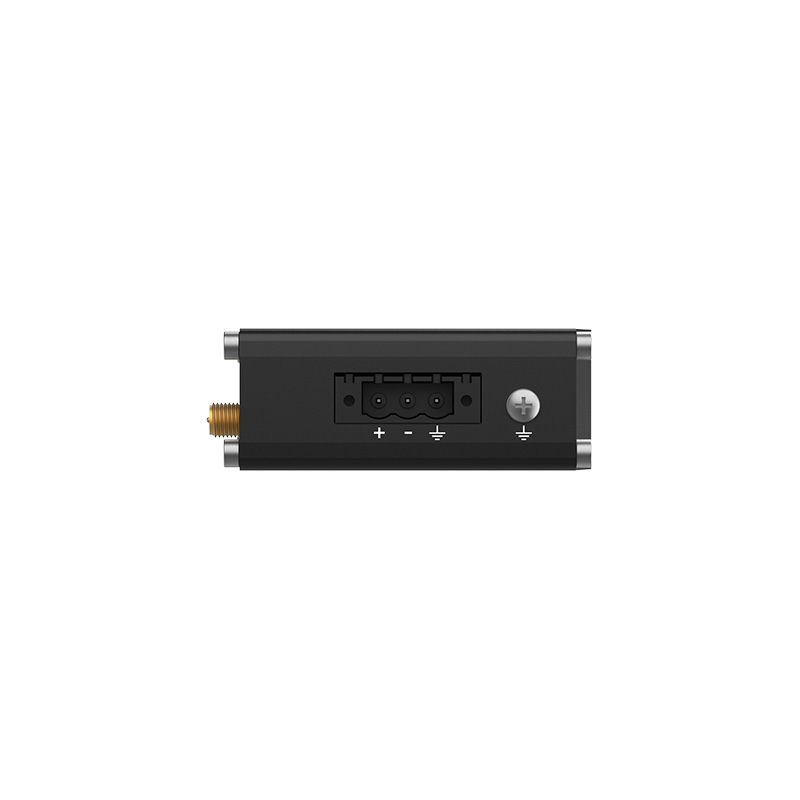

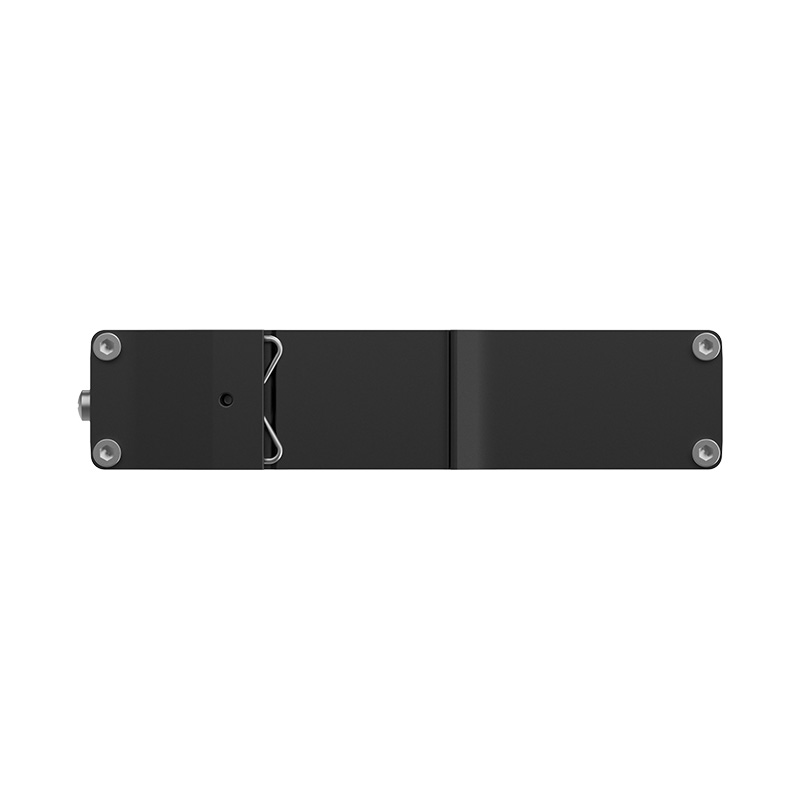

Thanks to the integrated DIN rail mount and minimal dimensions, it is the ideal choice for installation in tight spaces, such as crowded electrical cabinets. Power is supplied via a standard industrial terminal block with a wide voltage range, significantly simplifying deployment into existing infrastructure.

Secure RutOS Operating System with RMS Remote Management

The DAP145 Access Point is equipped with RutOS, a Linux-based operating system built on OpenWRT. This system offers advanced security features and compatibility with RMS, which enables remote management and monitoring of all Teltonika network devices. The system allows for configuration changes and status information gathering, even if the devices do not have public IP addresses.

Try RMS for free! Click this link to register your free 30-day demo account:

LINK: https://rms.teltonika.lt/

We recommend using the detailed manual and configuration documents; official materials can be found here.

Key Features:

• 1 x RP-SMA antenna connector for Wi-Fi
• WiFi 4 (IEEE 802.11b/g/n)

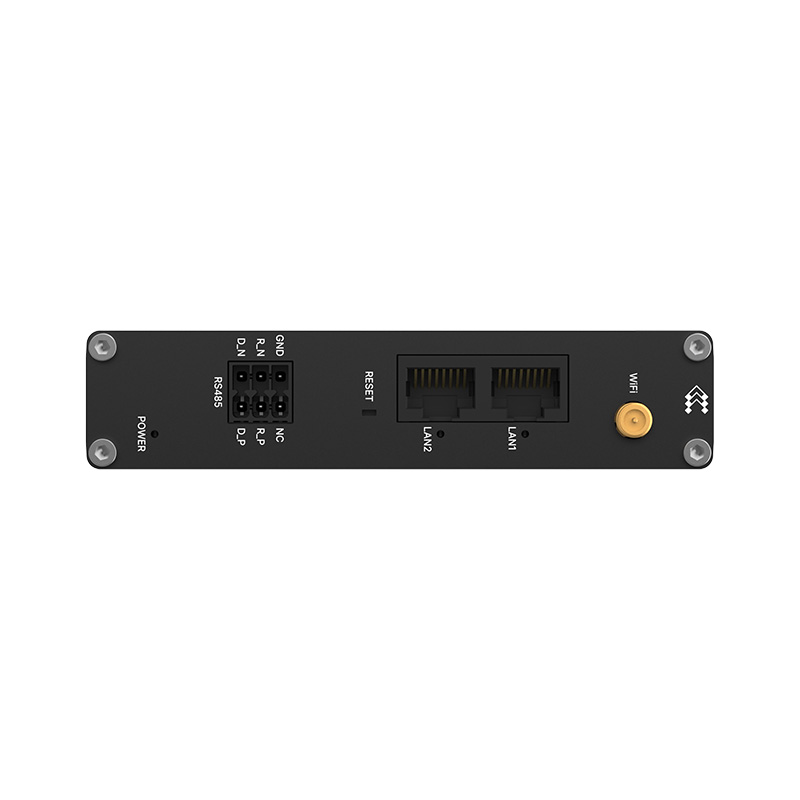

• 2 x RJ45 ports, 10/100 Mbps
• Passive PoE power supply: 9 – 30V
• RAM: 128 MB
• CPU: 580 MHz
• Operating System: RutOS
• Operating Temperature: -40 °C to 75 °C
• Protection Degree: IP30

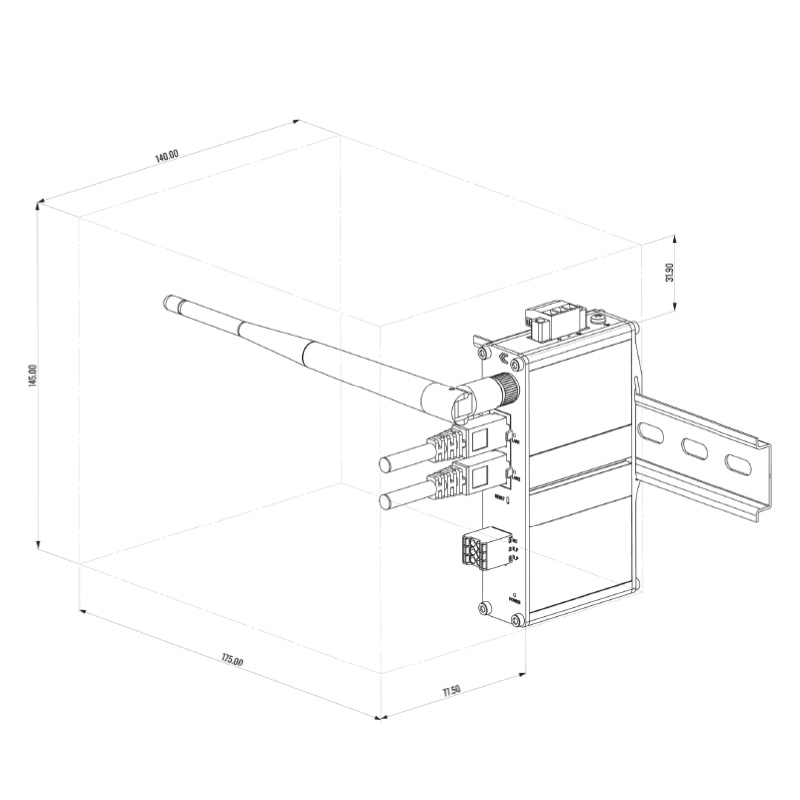

• Dimensions: 113.10 x 25 x 68.6 mm
• Weight: 149.2 g

Package Contents:

• Teltonika DAP145 Access Point
• 3-pin power connector
• 2 x 3-pin connectors
• QSG (Quick Start Guide)

Technical parameters can be found in the attached datasheet.
