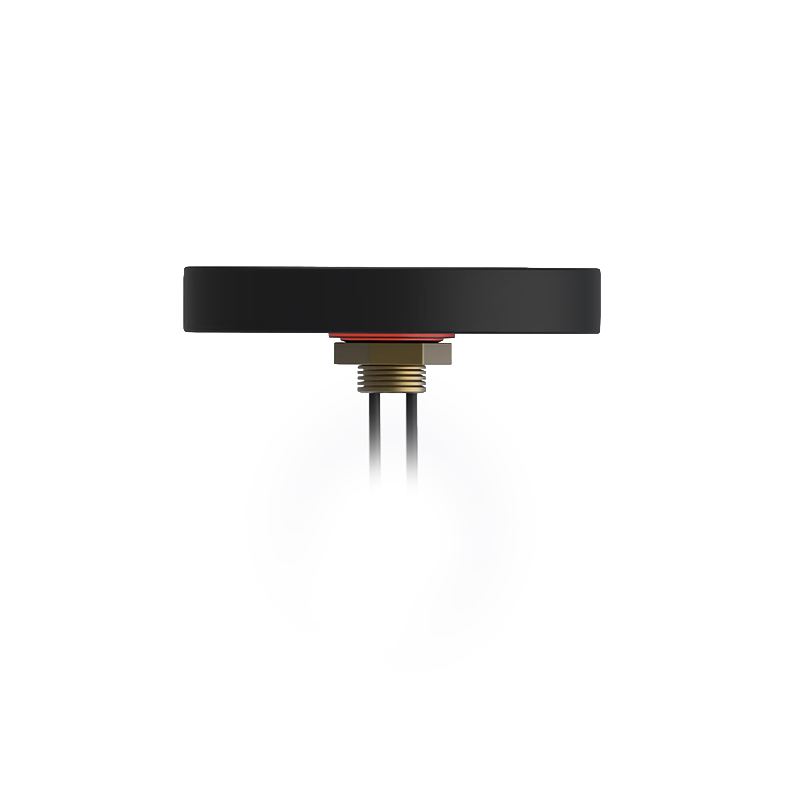

Teltonika PR1KCL25 - LTE antenna
Omnidirectional antenna for receiving signals in 4G/LTE, GSM and UMTS technologies is functional in the 698–960/1710–2690 MHz bands.
Durable construction for outdoor use and roof mounting
The antenna is designed for fixed mounting using a screw (screw mount) on the roof of the vehicle. The robust ABS plastic housing with UV protection and IP65 protection level ensure a long service life even with constant exposure to adverse weather conditions.
Wide temperature range and antenna equipment

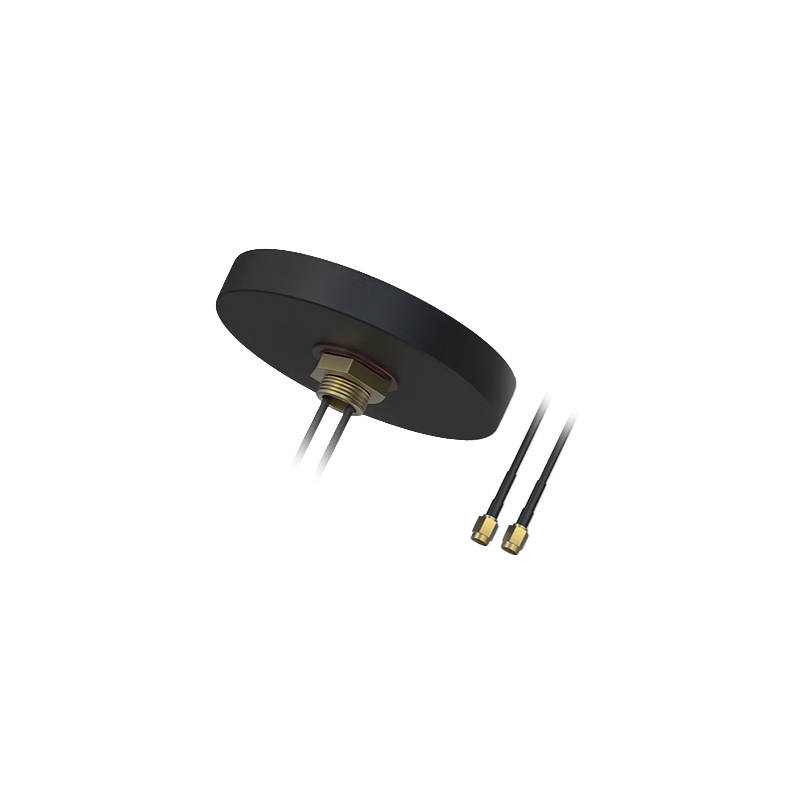

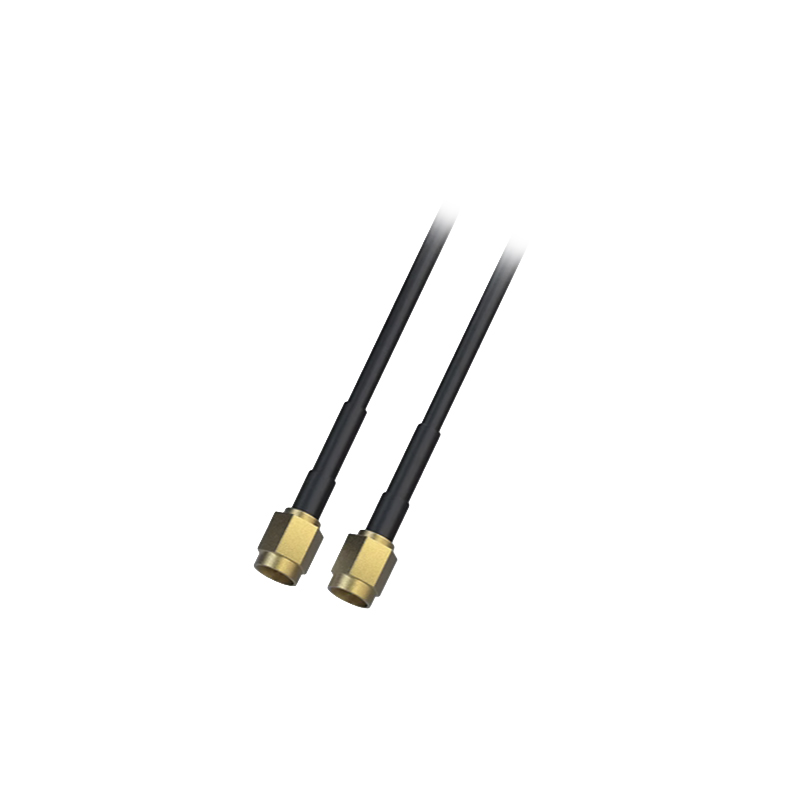

This antenna works reliably in extreme temperatures from -40 °C to +85 °C. It is equipped with two RG174 cables with a length of 3 meters, which are terminated with two standard SMA male connectors.
Compatibility with Teltonika devices
The antenna is fully compatible with industrial routers and Raspberry PI accessories:
Technical parameters:
- Frequency: 698–960/1710–2690 MHz
- Mounting method: Mounting
- Impedance: 50 Ω
- V.S.W.R: < 3.0
- Polarisation: Linear
- Operating temperature: -40 °C to +85 °C
- Protection degree: IP65
More technical parameters can be found in the attached datasheet.
