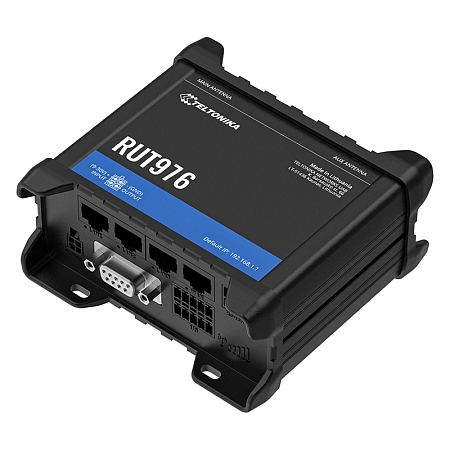

Router RedCap 5G Teltonika RUT976
Teltonika RUT976 is an industrial 5G router that supports 5G Redcap technology. This technology is designed for devices that do not prefer the full bandwidth or high transfer rates of classic 5G, but still benefit from the advantages such as low latency and high capacity at an affordable price.
The 5G router RUT976 provides data rates of 223 Mbps for download and 123 Mbps for upload. It is compatible with the SA architecture, which connects 5G devices directly to the 5G backbone network, while the control signaling does not depend on the 4G network at all, creating a balanced gap between traditional 4G and full-capacity 5G. This 5G router can wirelessly support up to 100 end devices. In case the 5G coverage is limited, the RUT976 automatically switches to 4G LTE Cat 4, ensuring smooth and stable operation.
The 5G router features two SIM card slots, allowing automatic switching in case of failure of one of them. The router also features Wi-Fi (802.11b/g/n) and GNSS technologies, and offers a wide range of interfaces, including four 10/100 RJ45 Ethernet ports, RS232, RS485, USB 2.0 and other I/O, making it an ideal choice for professional applications and deployments.
Teltonika RUT976 supports a wide range of protocols including MQTT, BACnet, OPC UA, DNP3, enabling communication with various devices and systems in industrial IoT applications. It offers robust security through various industrial VPN solutions such as ZeroTier, WireGuard, IPsec and OpenVPN, and also provides VLAN settings, various authentication methods and other important security protocols for network security.
Teltonika RUT976 router is equipped with RutOS. This is an operating system based on Linux OpenWRT, which is a big plus for choosing Teltonika routers. This system offers advanced security features and compatibility with the RMS (Remote Management System).
Key Features of Teltonika RUT976:
• Ethernet interface: - 1 x WAN port 10/100 Mbps, complies with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- 3 x LAN port 10/100 Mbps, complies with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
• WiFi 4 (802.11b/g/n) and USB 2.0 support
• Mobile technology: 5G, 4G (LTE Cat 4)
• Wide range of supply voltages 9-30 V
• RutOS - easy-to-use, secure operating system
• Teltonika Remote Management System support
• SA (Standalone Architecture) support
• DIN rail mounting
• Degree of protection: IP30
• Dimensions: 110 x 50 x 100 mm
• Weight: 295 g
Standard package contains:
• 5G router RUT976
• 9 W PSU
• 2 × 5G antenna (rotating, SMA male)
• 2 × WiFi antenna (magnetic, RP-SMA male, 1.5 m cable)
• 1 × GNSS antenna (adhesive, SMA male, 3 m cable)
• 1 × Ethernet cable (length 1.5 m)
• RS485 connector
• I/O connector
• SIM adapter kit
• QSG (quick start guide)
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet.
