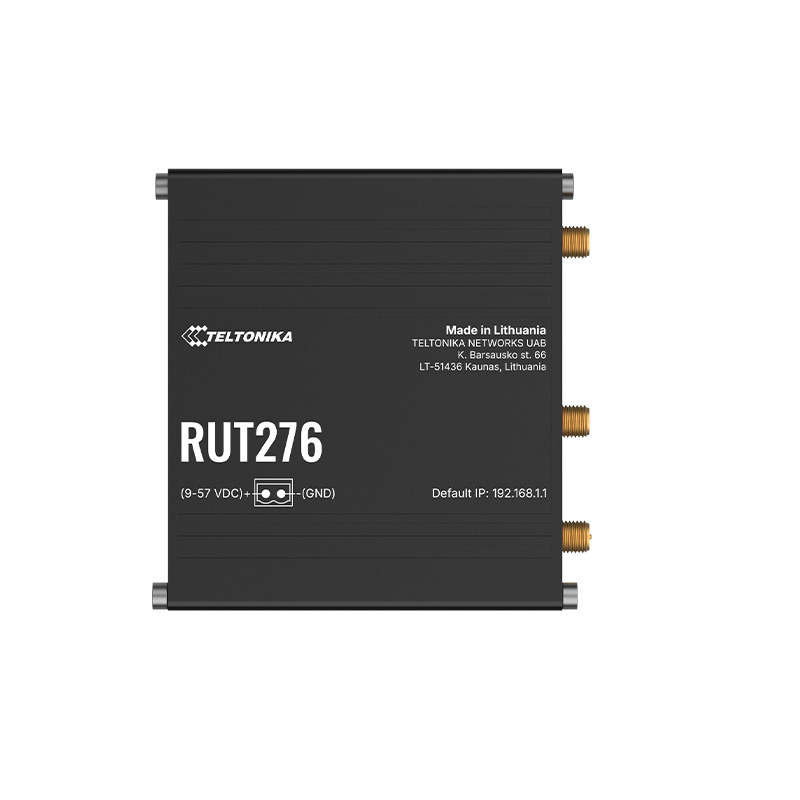

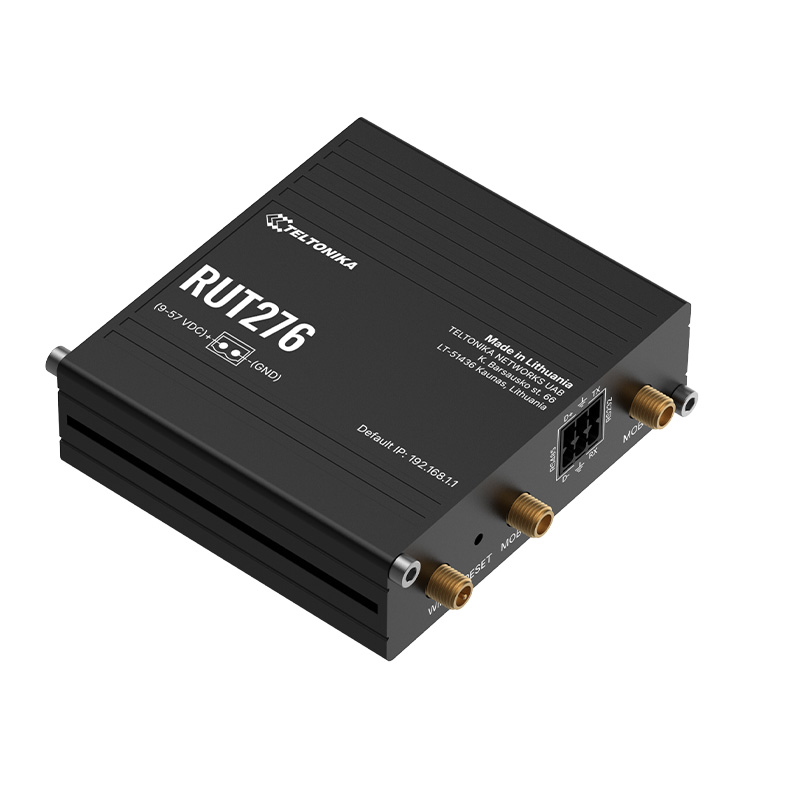

Teltonika RUT276 Industrial 5G RedCap Router
The RUT276 from Teltonika Networks is a compact industrial router supporting 5G RedCap (Reduced Capability) technology. It is specifically designed for IoT and industrial applications. 5G RedCap is tailored for devices that do not require extreme data speeds but demand low latency, high reliability, and energy efficiency. Compared to full-scale 5G, RedCap offers an optimised performance-to-power-to-cost ratio.
The router combines 5G RedCap cellular connectivity, Ethernet ports, Wi-Fi 802.11 b/g/n, and the RutOS operating system to provide a stable, secure, and flexible solution for a wide range of industrial projects. RS232/RS485 serial interfaces ensure seamless integration with legacy industrial equipment, while dual SIM slots and automatic failover guarantee continuous connectivity.
Compact Industrial Design
The RUT276 5G router is engineered for installation in control panels and industrial enclosures. It supports DIN rail mounting and operates across a wide temperature range of -40 to +75 °C, allowing for deployment even in the most demanding environments. A broad power supply range of 9–57 V DC further simplifies flexible integration into various industrial systems.
Real-World Applications
The Teltonika RUT276 provides system integrators and IoT providers with a compact industrial solution featuring IoT-optimized 5G connectivity, stable cellular performance, and secure remote device management.
It is perfect for projects where full-scale 5G speeds are not necessary, but where efficient, stable, and future-proof connectivity is critical.
Advanced Network Functions and Protocols
The RUT276 runs on RutOS, an OpenWRT-based Linux operating system. This system is a major advantage of Teltonika routers, offering advanced networking features with a high level of security.
Key strengths include broad support for VPN protocols (such as OpenVPN, IPsec, or WireGuard) and advanced traffic management tools. Native support for BACnet/IP (with BBMD), Modbus gateway (TCP/RTU), and OPC UA (server & client) enables direct connection to industrial systems without the need for additional external converters.
Additionally, full compatibility with the RMS (Remote Management System) allows for highly efficient remote management. This combination makes the RUT276 the ideal choice for projects requiring maximum security, stability, and 24/7 monitoring. Try RMS for free! Click the link below to register your 30-day free demo account:PROLINK: https://rms.teltonika.lt/
Key Features:
• 5G RedCap SA Support: Speeds up to 223 Mbps DL / 123 Mbps UL with backward compatibility for 4G LTE Cat 4

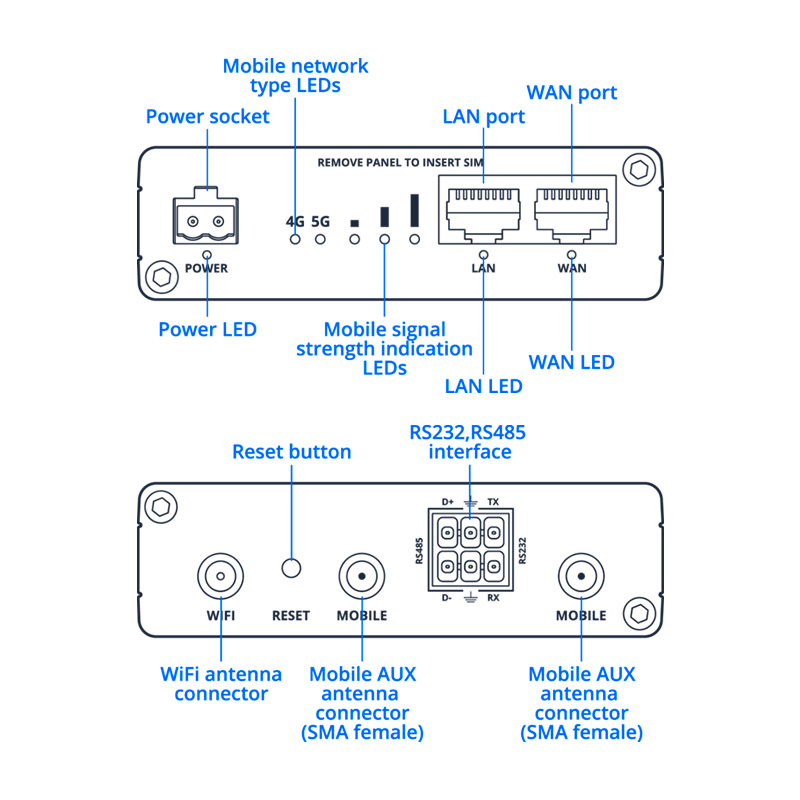

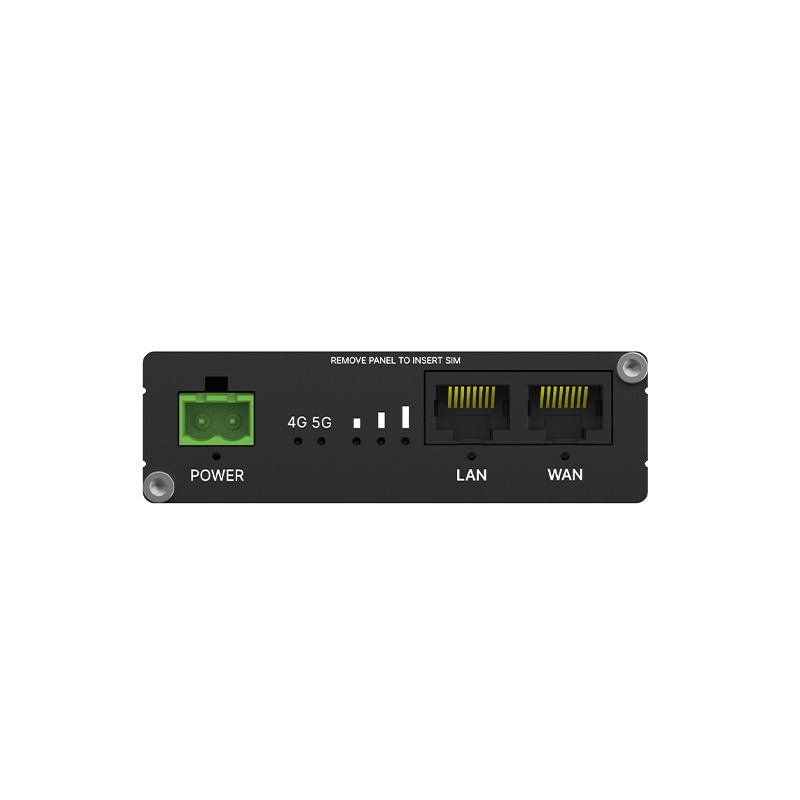

• 2× Ethernet port 10/100 Mbps (LAN/WAN)
• Wi-Fi 802.11 b/g/n (2.4 GHz)
• RutOS Operating System with support for VPN, Firewall, and VLAN
• Remote Management Support via Teltonika RMS
• Compact Industrial Design with DIN rail mounting
• Operating Temperature: -40 °C to +75 °C

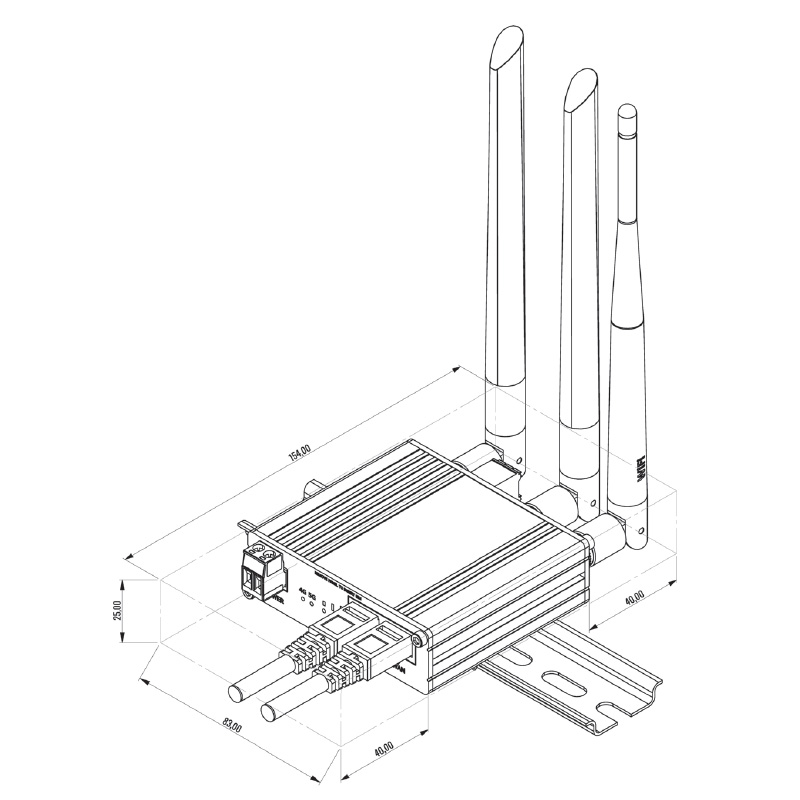

• Dimensions: 83 × 83 × 25 mm
• Weight: 132 g
We recommend using the detailed manual and configuration documentation; official materials can be found here.
Package Includes:
• RUT276 Router
• 24W Power Adapter
• 2× 3-pin I/O Connectors
• Allen Key (Hex Key)
• SIM Adapter Set• Quick Start Guide (QSG)
More information can be found in the attached datasheet.
