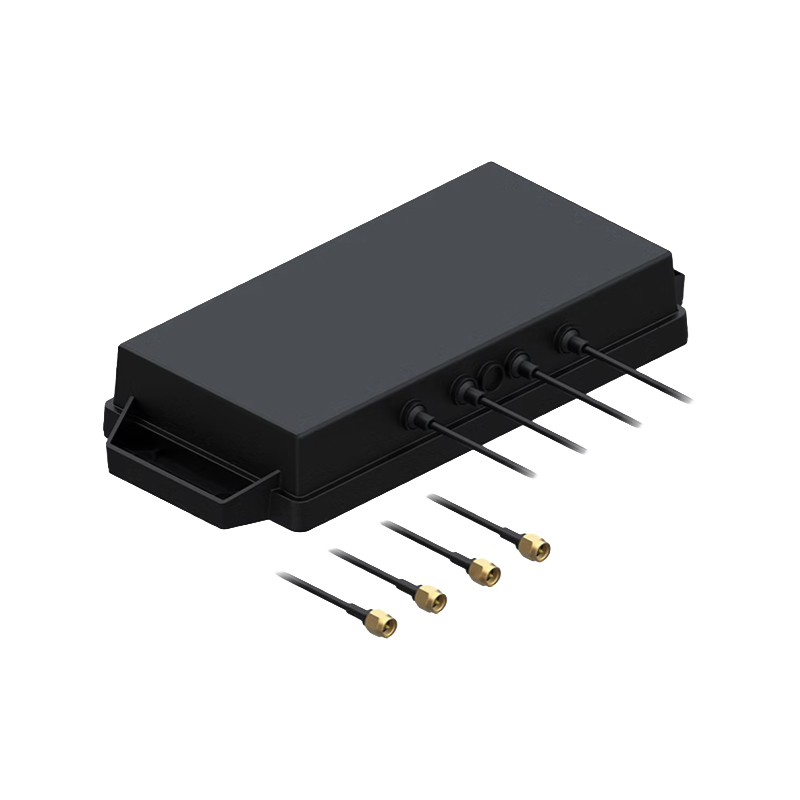

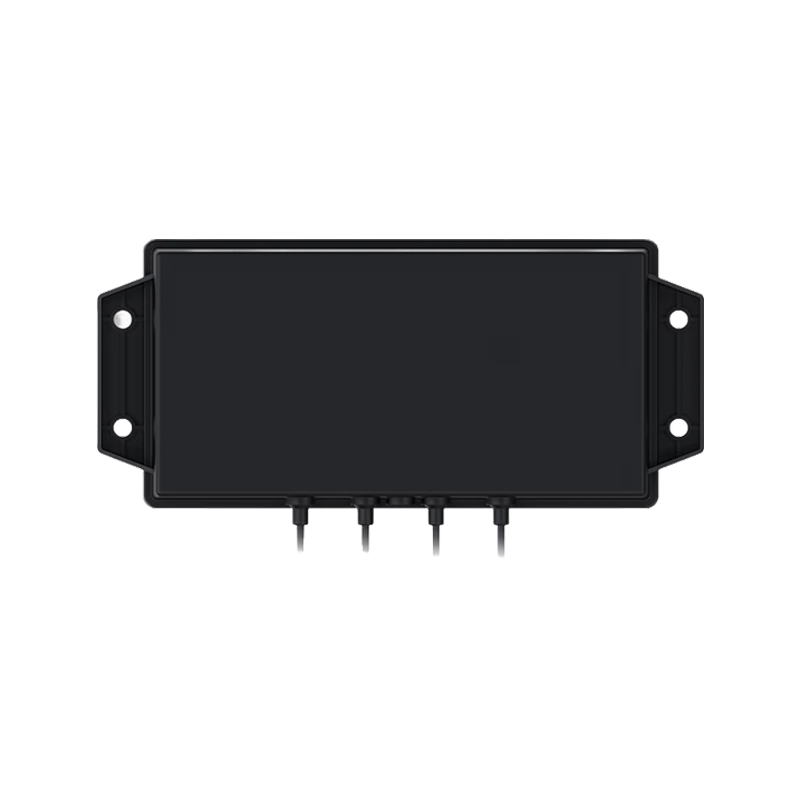

Teltonika 5G MIMO Antenna
The Teltonika 5G MIMO antenna is designed for modern IoT solutions and industrial applications. It operates across a wide range of bands: 600–960 MHz, 1427–2700 MHz, 3300–4200 MHz, and 4400–5000 MHz. Thanks to MIMO (Multiple Input Multiple Output) technology and four SMA connectors, it significantly improves connection stability and maximises data transfer speeds even in areas with weaker 5G/LTE signal coverage.
Its rugged design with an IP67 rating ensures full protection against dust and water. The antenna is designed for permanent mounting (screw-on base), making it ideal for installation on vehicle roofs or outdoor enclosures.
It is fully compatible with the following router series:
This 5G antenna for industrial routers is equipped with four LMR100 cables, each 3 m long and terminated with a standard SMA connector.
Its robust construction and wide temperature range of -40 °C to +80 °C ensure a long service life even in demanding industrial environments.
Technical specifications:
- Antenna type: Mobile (5G), mountable
- Frequency range: 600-960 / 1427-2700 / 3300-4200 / 4400-5000 MHz
- Gain: 4 dBi
- Connector: 4× SMA male
- Cable length: 4× 3 meters (LMR100)
- Operating temperature: -40 °C to +80 °C
- Protection rating: IP67
For more technical specifications, please refer to the attached datasheet.
