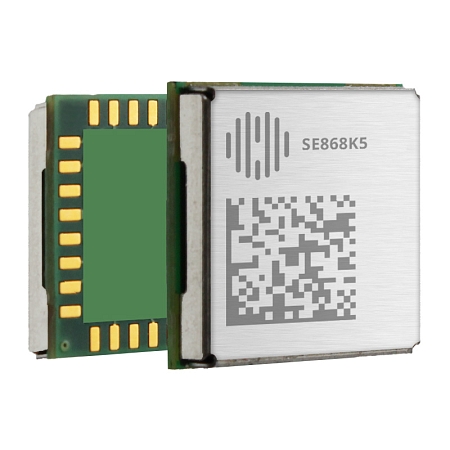

Telit Cinterion SE868K5-DR GNSS LGA (L1+L5+DR)

Telit Cinterion SE868K5-DR in an LGA format is a high-performance dual-frequency GNSS module for positioning, part of the Telit Cinterion xE868 series. It enables precise positioning using L1/E1 and L5/E5 frequencies. Data output can be accessed via UART, I2C, and SPI interfaces. The module is equipped with an IMU sensor that ensures position calculation during satellite signal interruptions (e.g., in tunnels) using a gyroscope and accelerometer. The built-in PGA (Programmable Gain Amplifier) ensures optimal signal amplification, enabling efficient operation even when using passive antennas.

The module offers high-temperature resistance, ranging from -40 °C to +85 °C, making it reliable even in demanding conditions. Its compact size of 11 x 11 mm allows integration into smaller devices.

It is an ideal choice for applications requiring high positioning accuracy, fast response times, and low power consumption in a compact design.

Key Features:

 • Frequency bands: GPS/QZSS L1 + L5, Galileo E1 + E5, GLONASS L1, BeiDou B1 + B2
 • Communication protocols: NMEA/RTCM
 • Update rate: Up to 10 Hz
 • Integrated SAW filter for optimal coexistence and improved performance
 • Certifications: ROHS, RED
 • Dimensions: 11 x 11 x 2.8 mm

Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.

Technical parameters can be found in the attached datasheet.
