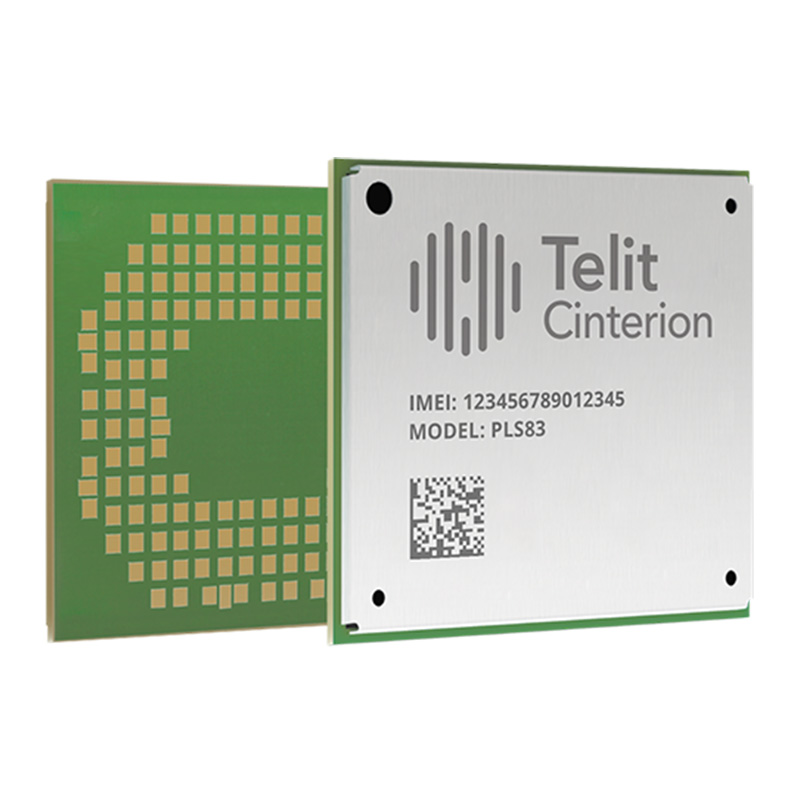

Telit Cinterion PLS83-W Rel.2.1
Cinterion PLS83-W Rel.2.1 is a wireless 4G LTE module from Telit Cinterion, providing connectivity with 2G/3G fallback. It supports connectivity in 18 LTE Cat.4 bands, 8 3G UMTS/WCDMA bands, and Quad-Band GSM. It offers maximum data transfer speeds of 150 Mbit/s for downloading and 50 Mbit/s for uploading.
The module is ideal for demanding industrial IoT applications requiring speed and optimal coverage, such as global tracking and tracing, industrial gateways, and transportation solutions. These applications need high-speed data, long lifespan, 4G network stability, and continuous coverage even in areas where a 4G network is unavailable.
PLS83 is part of a flexible set of IoT modules offering LTE Cat.4 or LTE Cat.1 mobile connectivity in global and regional variants. Each PLS83 variant has a compatible Cinterion PLS63 LTE Cat.1 module, which provides MTC connectivity for applications prioritizing efficiency over high speed and bandwidth.
The PLS83-W Rel.2.1 module is designed for use anywhere in the world.
General Features
• 3GPP Rel.9 Compliant Protocol Stack
• FDD-LTE: bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66
• TD-LTE: bands 38, 40, 41
• UMTS (WCDMA/FDD): bands 1, 2, 4, 5, 6, 8, 19
• Quad Band GSM: 850, 900, 1800, 1900 MHz
• Integrated GNSS support
• (GPS/BeiDou/GLONASS/Galileo)
• SIM Application Toolkit, letter classes b, c, e with BIP and
• RunAT support
• Control via standardized and extended AT commands (Hayes, TS 27.007 and 27.005)
• Embedded IP stack with IPv4 and IPv6 support
• TCP/IP stack access via AT command and transparent
• TCP/UDP services
• Secure Connection with TLS/DTLS
• Internet Services TCP/UDP server/client, DNS, Ping, HTTP,
• SMTP, FTP client
• LGA pad soldering mount, MSL3
• Supply voltage range: 3.0 - 4.5 V
• Dimension: 33 x 29 x 2.6 mm
• Operating temperature: -40°C to +85°C
• RoHS compliant
• USB Interface features a composite mode, compliant to
• Windows, Linux and Mac
• Firmware update via USB and ASC
• RLS Monitoring (Jamming detection)
• Informal Network Scan
• Cell ID based Location Support
• Module Services
• Embedded Processing (optional)
• eSIM
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
Technical parameters can be found in the attached datasheet.
