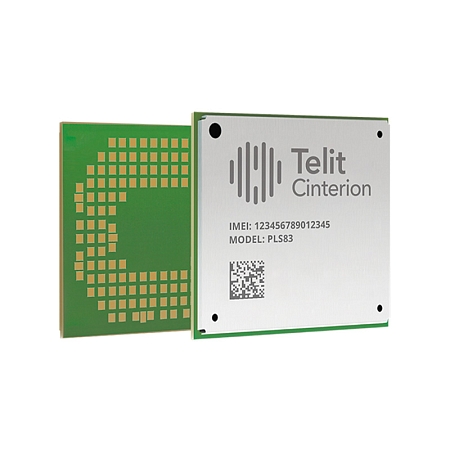

Telit Cinterion PLS83-EP-R2.2
The Cinterion PLS83-EP-R2.2 is a wireless 4G module from Telit Cinterion, providing connectivity with 2G and 3G fallback. It supports 18 LTE Cat.4 bands, 8 3G UMTS/WCDMA bands, and Quad-Band GSM, offering transfer speeds of up to 150 Mbit/s (DL) and 50 Mbit/s (UL).
It is ideal for demanding industrial IoT applications that require high speed and optimal coverage, such as global tracking and tracing, industrial gateways, and transportation solutions. These applications demand high-speed data, long lifecycle, 4G network stability, and continuous coverage in areas where 4G is not yet available.
The PLS83 is part of an agile suite of IoT modules offering LTE Cat.4 or LTE Cat.1 cellular connectivity in both global and regional variants. For every global and regional PLS83 variant, a compatible Cinterion PLS63 LTE Cat.1 module is available, offering MTC (Machine Type Communication) connectivity for applications that prioritise efficiency over high speed and bandwidth.
This specific version (PLS83-EP Rel.2.2) is designed for the Europe and Asia regions.
Key Features:
• 3GPP Rel.9 compliant protocol stack
• FDD-LTE bands: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66
• TD-LTE bands: 38, 40, 41
• UMTS (WCDMA / FDD) bands: 1, 2, 4, 5, 6, 8, 19
• Quad-Band GSM: 850, 900, 1800, 1900 MHz
• Integrated GNSS support (GPS / BeiDou / GLONASS / Galileo)
• SIM Application Toolkit (classes b, c, e with BIP) and RunAT support
• Control via standardized and extended AT commands (Hayes, TS 27.007 and 27.005)
• Integrated IP stack with IPv4 and IPv6 support
• TCP/IP stack access via AT commands and transparent mode
• TCP/UDP services
• Secure connectivity via TLS / DTLS
• Internet services: TCP/UDP server/client, DNS, Ping, HTTP, SMTP, FTP client
• LGA pad soldering mount, MSL3
• Supply voltage range: 3.0 – 4.5 V
• Dimensions: 33 x 29 x 2.6 mm
• Operating temperature: -40 °C to +85 °C
• RoHS compliant
• USB interface with composite mode (compatible with Windows, Linux, and Mac)
• Firmware updates via USB and ASC
• RLS monitoring (Jamming Detection)
• eSIM support
Telit company merged with Thales Gemalto, thereby creating a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorised distributor of the Telit Cinterion division.
More information can be found in the documents for download.
