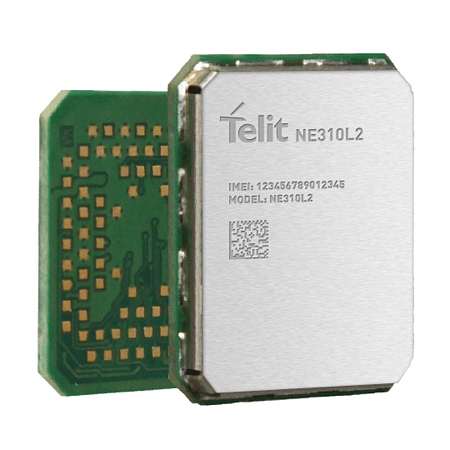

Telit Cinterion NE310L2-WW
The Telit Cinterion NE310L2-WW is a wireless LTE module in a 94-pad LGA footprint that is compatible with 3GPP Rel 14 Cat technology. NB2 and 2G (GE310-GNSS). It features special PSM and eDRX modes designed to minimize power consumption and extend battery life. Thanks to its small dimensions, this 4G module can be integrated into devices with limited space.
The Telit Cinterion NE310L2-WW is a reliable choice for low data throughput IoT applications such as smart meters, healthcare applications, asset monitoring and many others that use low power consumption and low data rates.
This NE310L2-WW module is suitable for global use with fallback to 2G network.
Key Features:
• Technology: LTE Cat. NB2
• 4G band support: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B85
• 2G band support: B2, B3, B5, B8
• Interface support: UART, SPI, I2C
• 1 × antenna
• Control using AT commands according to 3GPP TS 27.005, 27.007 and customized Telit AT commands
• Certifications and Approvals: FCC/IC, RED, UKCA, GCF, PTCRB, RCM, Anatel, KC, NCC, AT&T, Verizon, Deutsche Telekom, Telefonica, Spark, Telstra, Vodafone, LGU+
• Output power: LTE: 23 dBm (Power Class 3), GSM/GPRS 33 dBm (Power Class 4)
• Dimensions: 13.1 × 14.3 mm
• Operating temperature: -40 °C to +85 °C
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
Technical parameters can be found in the attached datasheet.
