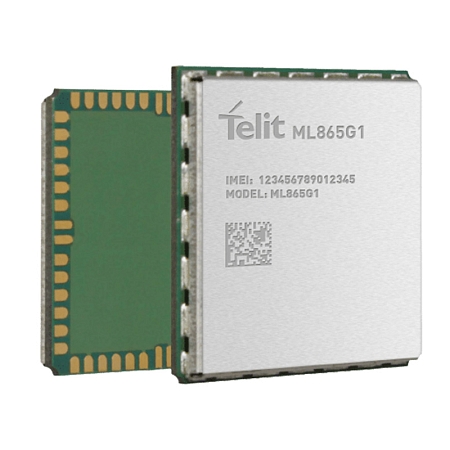

Telit Cinterion ML865G1-WW
This item can only be purchased in multiples of 200 pieces.
The Telit Cinterion ML865G1-WW is an LTE module compatible with 3GPP Rel. 14 Cat M1/NB2, ideal for efficient use in IoT applications with an emphasis on energy saving and extended coverage. Thanks to the special PSM and eDRX modes, which are designed to minimize power consumption and extend battery life, the device can periodically wake up, send a minimum of data and then go back to sleep, which significantly saves energy.
The Telit Cinterion ML865G1-WW is a reliable choice for applications such as smart meters, healthcare monitoring, fleet management, asset monitoring and many others that use low power consumption and low data rates.
Key Features:
• Technology: Dual Mode LTE-M1/NB2 + 2G
• 4G band support: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B71, B85
• 2G band support: B2, B3, B5, B8
• Interface support: USB 2.0 HS, UART, SPI, I2C, GPIO, ADC, 1.8 SIM
• 1× antenna
• Control using AT commands according to 3GPP TS 27.005, 27.007 and customized Telit AT commands
• Certifications and approvals: RED, GCF, ANATEL, IMDA, FCC, Deutsche Telekom
• Output power: LTE: 23 dBm (Power Class 3), GSM/ GPRS: 33 dBm (Power Class 4)
• Dimensions: 24.4 × 24.4 × 2.6 mm
• Operating temperature: -40 °C to +85 °C
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
Technical parameters can be found in the attached datasheet.
