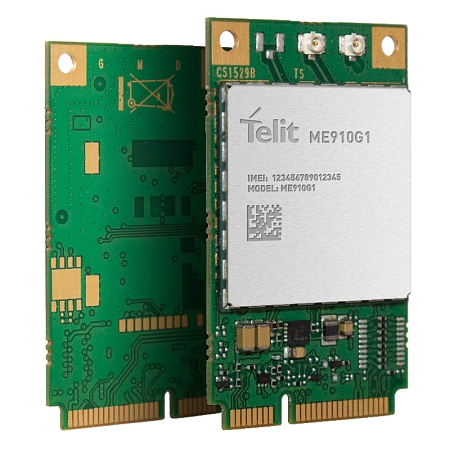

Telit Cinterion ME910G1-WW (in Mini-PCI design)
This item can only be purchased in multiples of 100 pieces.
The Telit Cinterion ME910G1-WW is a 4G module ((Cat. M1/NB2) which is compatible with 3GPP Release 14 and ensures connection to LTE-M and NB-IoT networks with a 2G backup connection. The MiniPCIe module offers wireless firmware updates ( Over-the-Air). Enables easy drop-in migration and reuse of technology from 4G to 2G and 3G with any xE910 module, this can be key for many companies that need to seamlessly upgrade their systems or infrastructure.
Thanks to the special PSM and eDRX modes, which are designed to minimize power consumption and extend battery life, the device can periodically wake up, send a minimum of data and then go back to sleep, which significantly saves energy.
The Telit Cinterion ME910G1-WW mPCIe 4G card is equipped with USB 2.0 HS, UART, SPI and GPIO interfaces that provide fast and stable data transfer. The device also includes a set of AT commands for simplified device control.
Maximum transmission speeds for LTE Cat. M1 are 588 Kbps for download and 1 Mbps for upload. For LTE Cat. NB2, the transmission speeds are 120 kbps for download and 160 kbps for upload.
The mini-PCI card ME910G1-WW is designed for global use.
Key Features:
• 4G band support: B1, B2, B3, B4, B5, B8, B8_US, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B71, B85, B86
• 2G band support: B2, B3, B5, B8
• Protocol support: TCP/IP and UDP/IP,
• Interface support: USB 2.0 HS, UART, SPI and GPIO
• Control using AT commands according to 3GPP TS 27.005, 27.007 and customized Telit AT commands
• Certifications and Approvals: PTCRB, GCF, FCC/IC, RED, ANATEL, RCM, JATE/TELEC, KC, CCC, SRRC, NCC, IMDA, AT&T, FirstNet, Approvals Verizon, Sprint, T-Mobile US, TELSTRA, SKT, NTT DOCOMO, KDDI, Deutsche Telecom
• Dimensions: 51 × 30 × 3.2 mm
• Operating temperature: -40 °C to +85 °C
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
More information can be found in the documents for download.
