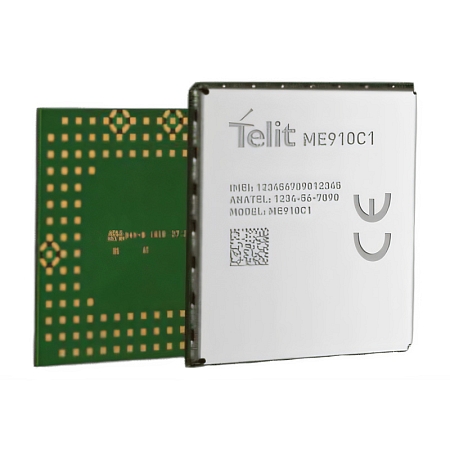

Telit Cinterion ME910C1-WW
This item can only be purchased in multiples of 180 pieces.
The Telit Cinterion ME910C1-WW is an LTE module compatible with 3GPP Rel. 13 Cat M1/NB1 and 2G, ideal for efficient use in IoT applications with an emphasis on energy saving and extended coverage. The module is in LGA design and offers various configurations. Thanks to the special PSM and eDRX modes, which are designed to minimize power consumption and extend battery life, the device can periodically wake up, send a minimum of data and then go back to sleep, which significantly saves energy.
This 4G module is ideal for IoT and M2M applications that use low power consumption, such as smart metering, security and monitoring, fleet management, asset tracking and healthcare monitoring.
The Telit Cinterion ME910C1-WW is designed for global use.
Key Features:
• Technology: Dual mode M1 & NB1 + 2G
• 4G band support: B1 (2100), B2 (1900), B3 (1800), B4 (AWS 1700), B5 (850), B8 (900), B12 (700), B13 (700), B18 (800) , B19 (800), B20 (800), B26 (850), B28 (700)
• 2G band support: B2 (1900), B3 (1800), B5 (850), B8 (900)
• Interface support: USB 2.0 HS, UART, SPI, I2C
• 1 x antenna
• Control using AT commands according to 3GPP TS 27.005, 27.007 and customized Telit AT commands
• Certifications and Approvals: PTCRB, GCF, RED, FCC/IC, RCM, Jate, Telec, CCC, AT&T, Verizon, NTT DoCoMo, Deutsche Telekom, Anatel, Telstra, Ifetel, Rogers, Telus, US Cellular
• Dimensions: 28.2 × 28.2 × 2.2 mm
• Operating temperature: -40 °C to +85 °C
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
Technical parameters can be found in the attached datasheet.
