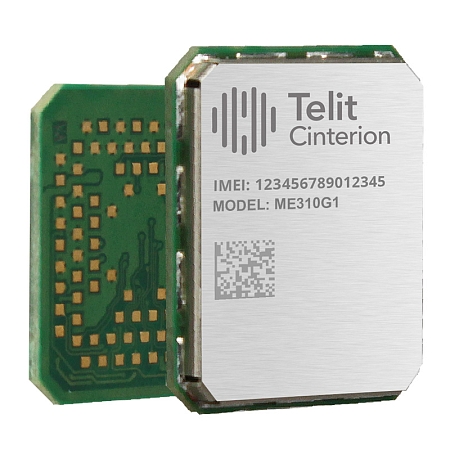

Telit Cinterion ME310G1-W3
This item can only be purchased in multiples of 392 pieces. Telit Cinterion ME310G1-W3 is an LTE module compatible with 3GPP Rel.14 Cat. M1/NB2 technology, ideal for efficient use in IoT applications with an emphasis on energy saving and low data throughput. The module is in LGA design and offers various configurations. Thanks to the special PSM and eDRX modes, which are designed to minimize power consumption and extend battery life, the device can periodically wake up, send a minimum of data and then go back to sleep, which significantly saves energy.
The Telit Cinterion ME310G1-W3 includes a GNSS receiver (GPS, GLONASS, Beidou, Galileo) to determine the location of the device. Thanks to the IPv4/IPv6 stack function, the module supports the simultaneous use of IPv4 and IPv6 addresses, thereby achieving more efficient operation of a larger number of devices in one network.
The Telit Cinterion ME310G1 is a reliable choice for applications such as asset tracking, healthcare monitoring, smart metering, industrial sensors, home automation and many others that use low power consumption and low data transfer rates.
Key Features:
• Support for 4G Bands: B1, B2, B3, B4, B5, B8, B8_US, B12, B13, B14, B18,B19, B20, B25, B26, B27, B28, B66, B85
• Interface support: USB 2.0 HS, UART, SPI, I2C
• Control using AT commands according to 3GPP TS 27.005, 27.007 and customized Telit AT commands
• Output power: LTE: 23 dBm (Power Class 3)
• Dimensions: 15 × 18 × 2.6 mm
• Operating temperature: -40 °C to +85 °C
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
Technical parameters can be found in the attached datasheet.
