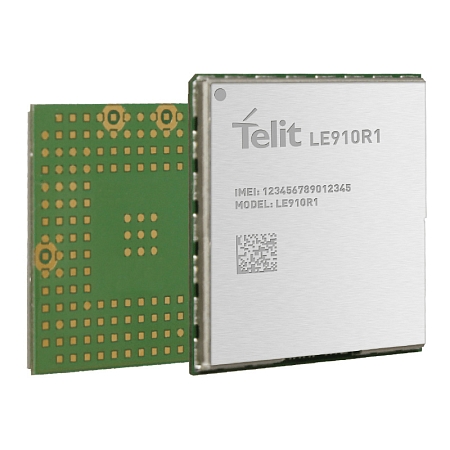

Telit Cinterion LE910R1-EAG
This item can only be purchased in multiples of 180 pieces.
The Telit Cinterion LE910Q1-EAG is an industrial LTE module that is compatible with 3GPP Release 13 LTE Cat 1 bis technology. The module offers support for UDP, TCP, PPP, HTTP, HTTPS, NTP, FTP protocols. Thanks to the IPv4/IPv6 stack function, the module supports the simultaneous use of IPv4 and IPv6 addresses, thereby achieving more efficient operation of a larger number of devices in one network. Voice over LTE (VoLTE) support ensures high-quality voice call transmission. In addition, this module offers a GNSS (GPS, GLONASS, Beidou, Galileo) function that allows the use of navigation systems for accurate positioning.
This industrial 4G LTE Cat 1 module is an ideal choice for IoT (Internet of Things) applications that enable reliable data and voice transmission.
The 4G module LE910Q1-EAG is intended for use in the EMEA, APAC region.
Key Features:
• VoLTE support
• GNSS support
• Transmission speeds LTE: DL: max 10 Mbps and UL: max 5 Mbps
• 4G band support: B1, B3, B5, B7, B8, B20, B28, B38, B40, B41
• 1× LTE antenna
• USB 2.0, UART, SPI, I2C interface support
• Dimensions: 28.2 × 28.2 × 2.2 mm
• Operating temperature: -40 °C to +85 °C
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
More information can be found in the documents for download.
