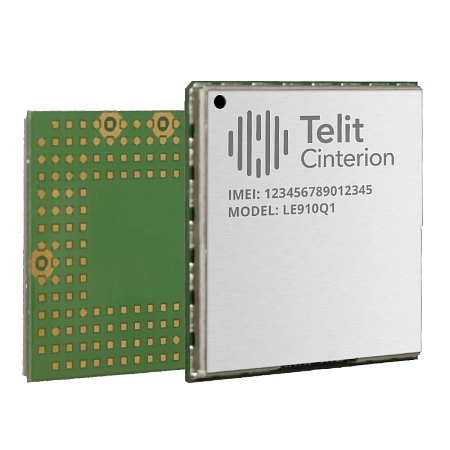

Telit Cinterion LE910Q1-WW
This item can only be purchased in multiples of 180 pieces.
The Telit Cinterion LE910Q1 is an industrial LTE module that is compatible with 3GPP Release 13 LTE Cat 1 bis technology. The module offers support for UDP, TCP, PPP, HTTP, HTTPS, NTP, FTP protocols. Thanks to the IPv4/IPv6 stack function, the module supports the simultaneous use of IPv4 and IPv6 addresses, thereby achieving more efficient operation of a larger number of devices in one network.
The Telit Cinterion LE910Q1-WW is a reliable choice for industrial IoT and M2M applications such as asset tracking, vehicle telematics and remote monitoring. It can be integrated in both indoor and outdoor applications. The optional GNSS function enables the use of navigation systems.
This 4G module LE910Q1-WW is designed for global use.
Key properties:
• GNSS support
• Transmission speeds LTE: DL: max 10 Mbps and UL: max 5 Mbps
• 4G band support: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B34, B38, B39, B40, B41
• 1× LTE antenna
• USB 2.0, UART, SPI, I2C interface support
• Dimensions: 28.2 × 28.2 × 2.4 mm
• Operating temperature: -40 °C to +85 °C
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
More information can be found in the documents for download.
