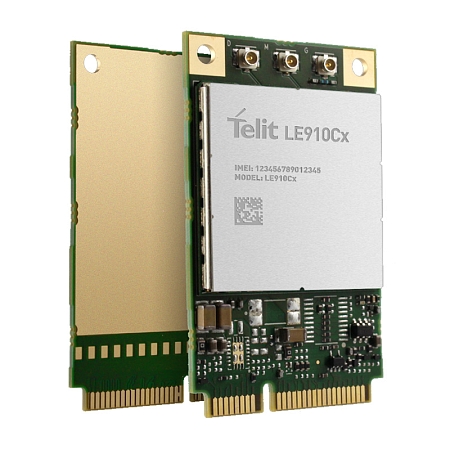

Telit Cinterion LE910C4-WWX (in Mini-PCI version)
This item can only be purchased in multiples of 100 pieces.
The Telit Cinterion LE910C4-WWX is a 4G module (LTE Cat.) that is compatible with 3GPP Release 10. The mPCIe module offers wireless firmware update (Over-the-Air). Enables simple drop-in migration and technology reuse from 4G to 2G and 3G with any xE910 module, this can be key for many companies that need to seamlessly upgrade their systems or infrastructure.
The Telit Cinterion LE910C4-WWX mPCIe 4G card is equipped with USB 2.0 HS / HSIC, PCM, UART and GPIO interfaces that provide fast and stable data transfer. Maximum transfer speeds are 150 Mbps for download and 50 Mbps for upload.
VoLTE technology (Voice over LTE) enables the transmission of voice calls using LTE (Long-Term Evolution) networks.
The mini-PCI card LE910C4-WWX is designed for global use.
Key Features:
• VoLTE support
• 4G band support: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B25 B26, B28
• 3G band support : B1, B2, B4, B5, B6, B8, B19
• 2G band support: B2, B3, B5, B8
• Protocol support: TCP/IP and UDP/IP,
• interface support: USB 2.0 HS / HSIC, PCM, UART and GPIO
• Control using AT commands according to 3GPP TS 27.005, 27.007 and customized Telit AT commands
• Output power: Class 3 (0.2 W, 23 dBm) @ LTE
• Dimensions: 51 × 30 × 3.2mm
• Operating temperature: -40 °C to +85 °C
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
More information can be found in the documents for download.
