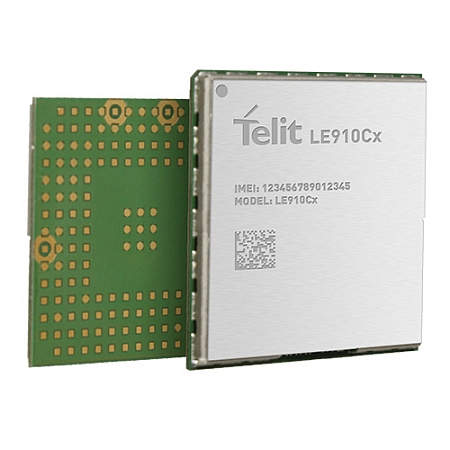

Telit Cinterion LE910C1-WWXD
This item can only be purchased in multiples of 135 pieces.
The Telit Cinterion LE910C1-WWXD is a 4G module (LTE Cat.1) that is compatible with 3GPP Release 10 and offers GNSS connectivity with four constellations, providing accurate positioning. The module is in LGA design and offers various configurations. Enables simple drop-in migration and technology reuse from 4G to 2G and 3G with any xE910 module, this can be key for many companies that need to seamlessly upgrade their systems or infrastructure.
The Telit Cinterion LE910C1-WWXD offers the ability to use advanced machine-type communication (MTC) features prepared according to the 3GPP Release 12 standard, which ensures the ability of modules to communicate in Internet of Things (IoT) and Machine-to-Machine (M2M) applications.
The Telit Cinterion WWXD 4G module is equipped with USB 2.0 HS, UART and GPIO interfaces, which enable fast and stable data transfer. Maximum transfer speeds are 10 Mbps for download and 5 Mbps for upload.
The LE910C1-WWXD module is intended for EMEA, North America, (AT&T, Verizon), APAC, LATAM regions.
Key Features:
• LTE, GPS, GLONASS, Beidou, Galileo, QZSS
• 4G band support: B1, B2, B3, B4, B5, B7, B8, B8_US B9, B12, B13, B14, B18, B19, B20, B25, B26, B28
• 3G band support: B1, B2, B4, B5, B6, B8, B19
• 2G band support: B2, B3, B5, B8
• Interface support: USB 2.0 HS / HSIC, UART, SPI, PCM, I2C
• Dimensions: 28.2 × 28.2 × 2.2 mm
• Operating temperature: -40 °C to +85 °C
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
More information can be found in the documents for download.
