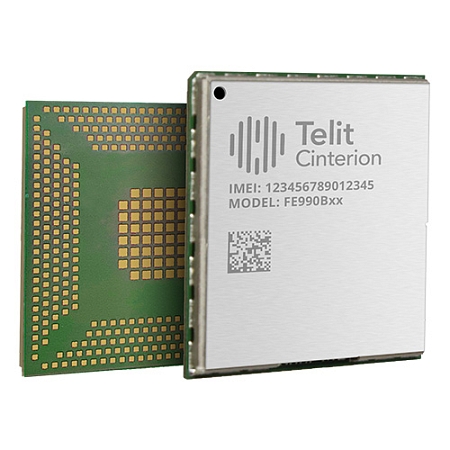

Telit Cinterion FE990B40-RW
Telit Cinterion FE990B40-RW is a new high-performance 5G LGA module. It features 5G sub-6 technology with Gigabit LTE and WCDMA support.
Cinterion FE990B40 is equipped with a highly advanced multi-constellation GNSS receiver, powerful quad-core ARM Cortex A55 processor, Linux OpenWRT OS, as well as a wide range of interfaces such as USB 3.1 Gen 2 and 2.0, PCIe, USXGMII, UART.
The Telit Cinterion FE990B40 5G module with compact dimensions, powerful functions and durable construction is a reliable choice for industrial (M2M) applications that require reliable wireless connectivity. It is also used in industrial routers and gateways, surveillance devices and video streaming.
This FE990B40-RW module is intended for use in the EMEA, Oceania, and South America regions.
Key Features:
• 5G technology: 5G sub-6 FDD and TDD, SA and NSA
• 4G technology: 5×CA up to 20 DL layers, 2×CA UL; 256-QAM DL/UL
• 3G technology: HSPA+ Rel 8; 42 Mbps DL, 11 Mbps UL (-RW variants only)
• Antenna ports: four 5G sub-6/LTE and one GNSS
• GNSS support
• WCDMA Bands: B1, B5 (B6, B19), B8
• LTE Bands: B1, B3, B5 (B18, B19), B7, B8, B20, B28, B32, B40, B41 (B38), B42, B43
• Bandwidth 5G FR1: 200 MHz, 3CC CA DL
• Windows 11, Linux driver support
• 3GPP 5G Rel-17
• Support for up to three Wi-Fi and two Ethernet transceivers
• Dimensions: 41 × 41 × 2.9 mm LGA
• Operating temperature: -40°C to +85°C
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
More information can be found in the documents for download.
