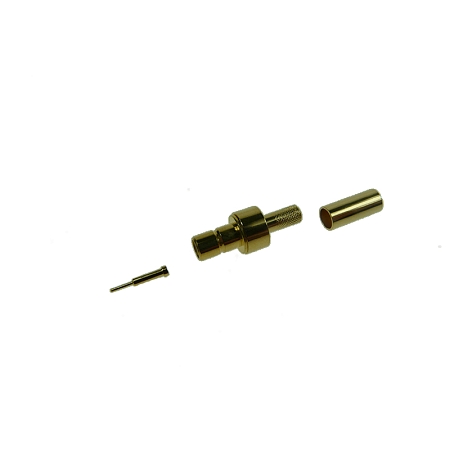

SMB (m) straight connector for cable RG174
SMB coaxial connectors are characterized by high reliability and mechanical stability. Snap-on mechanism provides fast and reliable connection. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 4 GHz. They are used, for example, to connect wireless WLAN devices, test devices and GSM/GPS/Wi-Fi antennas.
This connector is designed for RG174 cable with a diameter of 1.80 mm.
Parameters:
• Type: Male (m)
• Impedance: 50 Ω
• Mating Cycles: 500 cycles
• Operating temperature: - 65 °C to + 165 °C
• Weight: 2.29 g
Technical parameters can be found in the attached datasheet or contact our sales department.
