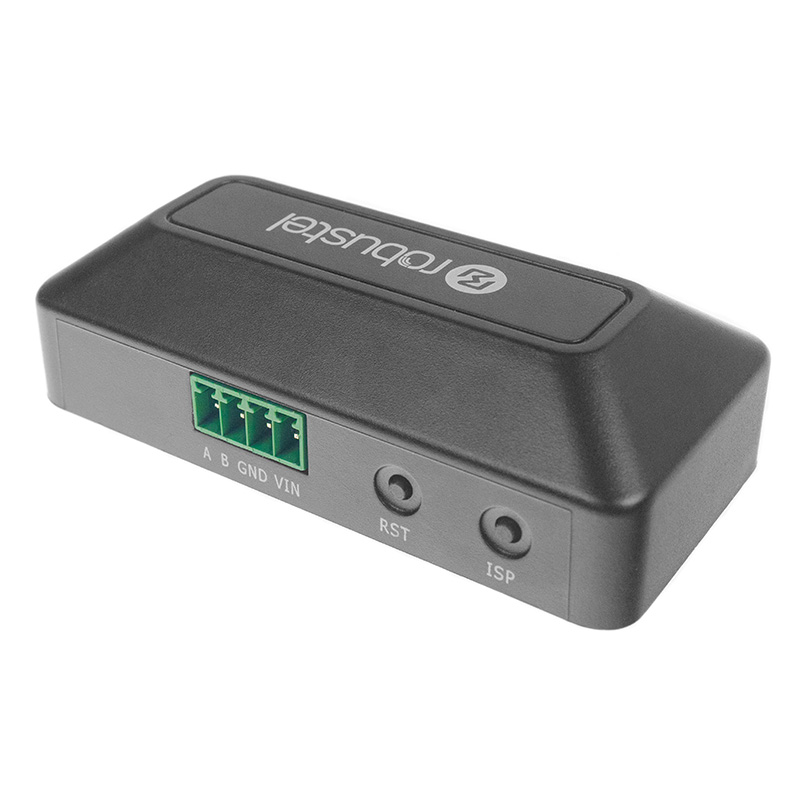

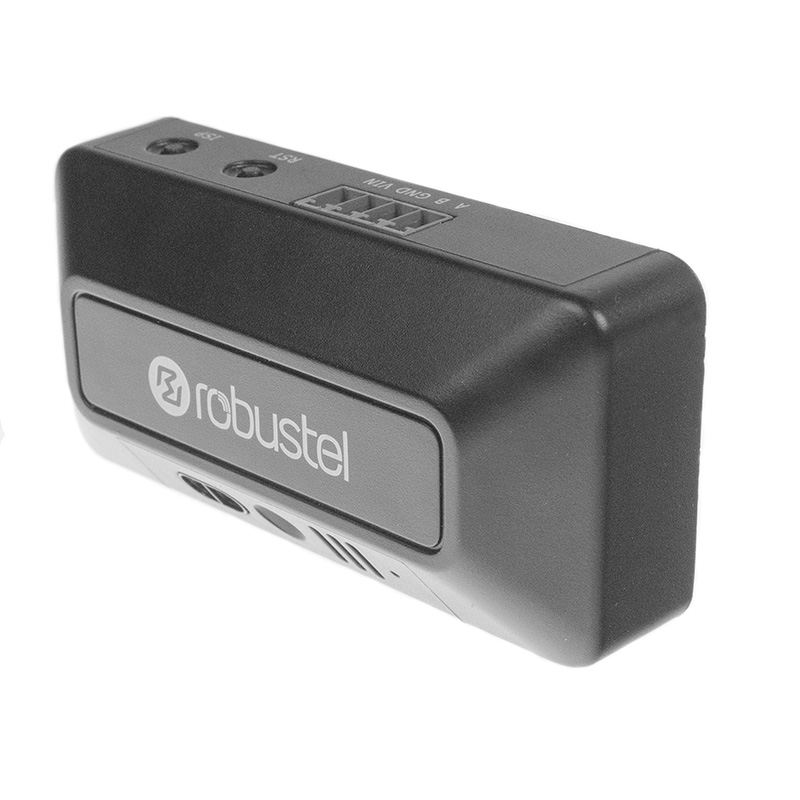

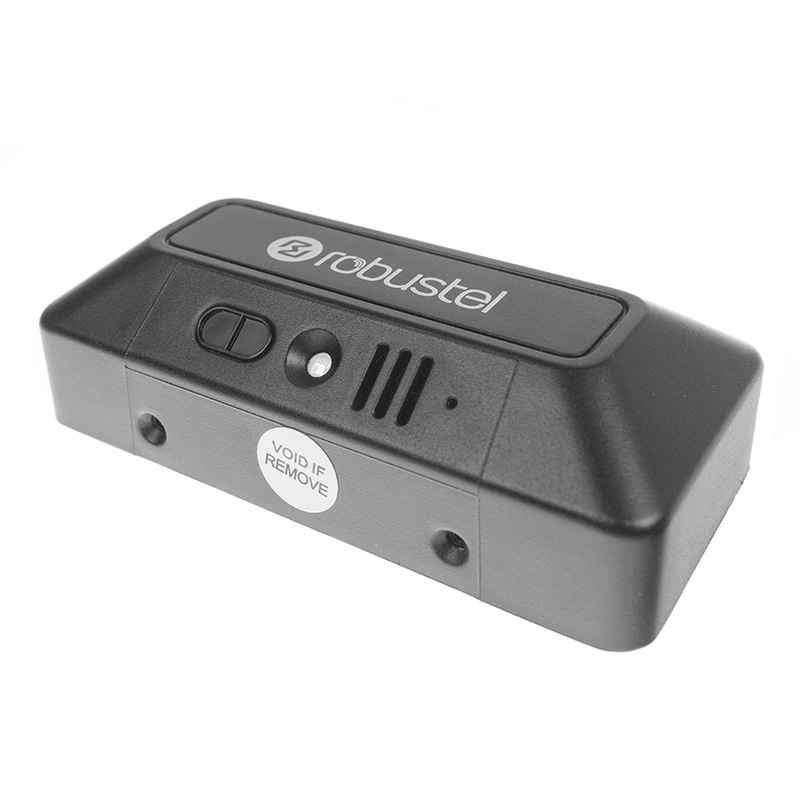

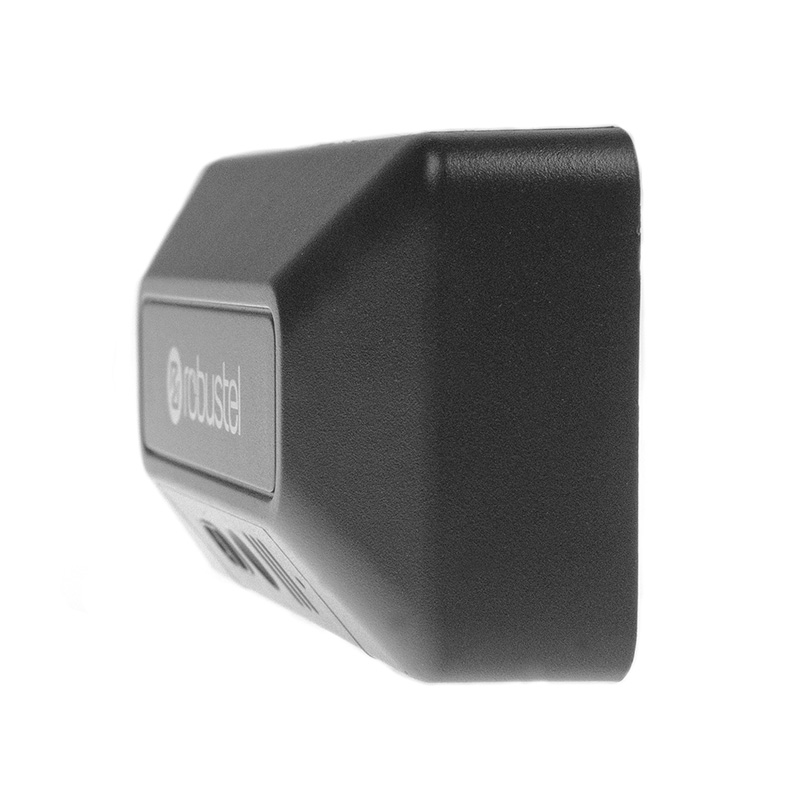

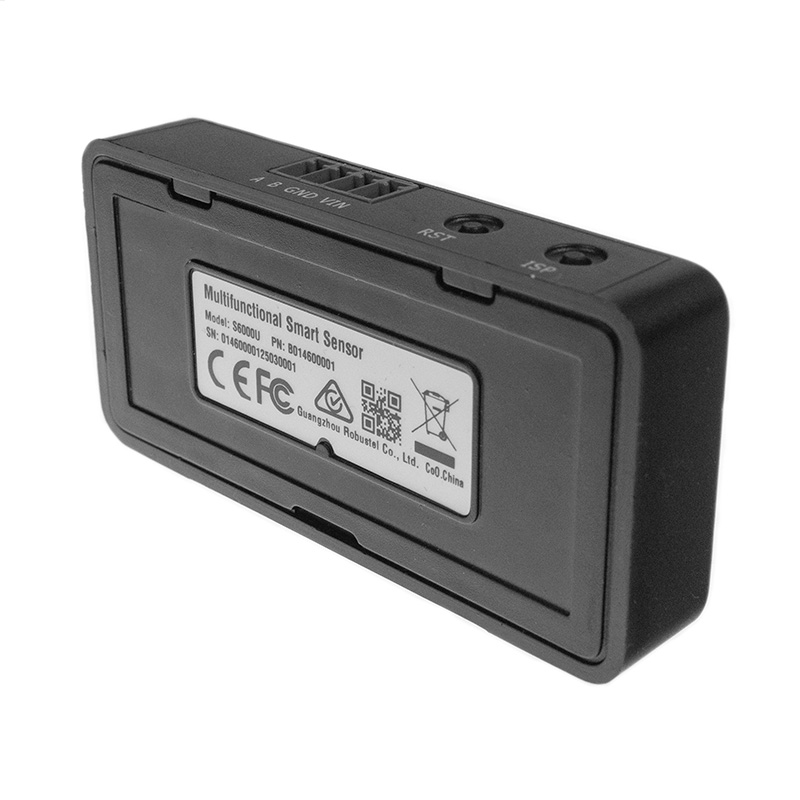

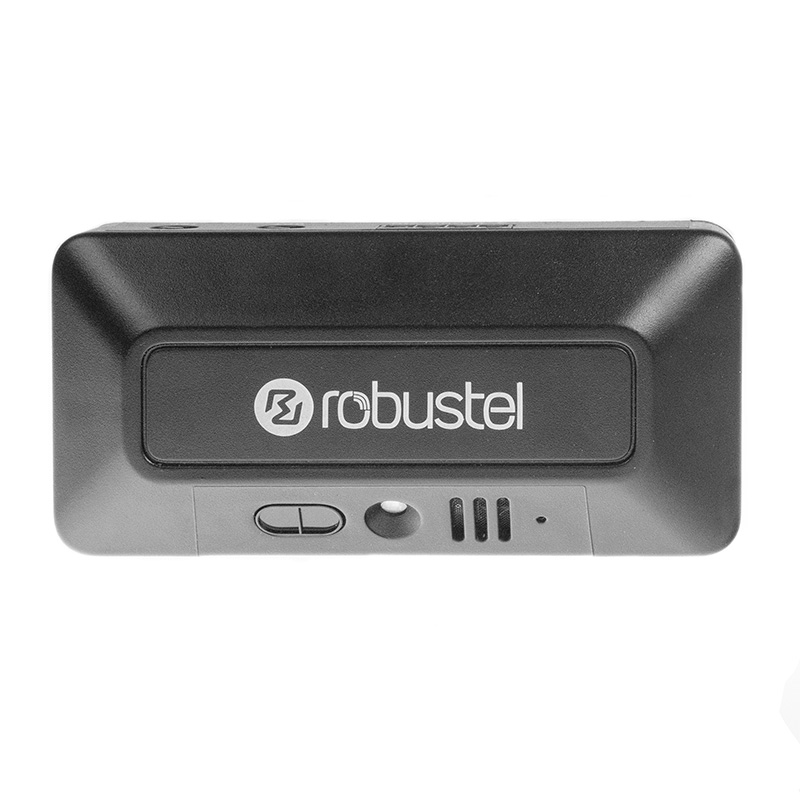

Robustel S6000U-P - Multifunctional Intelligent Sensor Device with power adapter 12 W
Robustel S6000U-P is a multifunctional intelligent sensor designed for deployment across a wide range of industrial applications. It enables local real-time environmental data collection, including temperature, humidity, noise levels, light intensity, atmospheric pressure, distance, acceleration, and tilt. As a result, it provides detailed information that helps companies with comprehensive monitoring and management of their operating environment. This sensor integrates measurements of multiple key parameters into a single device, significantly simplifying installation and reducing overall maintenance costs. Type S6000U-P is a variant with a power supply.
Common Application Areas
Robustel S6000U-P is used for monitoring the operation of industrial equipment, production lines, and refrigeration units. It is also suitable for monitoring environmental conditions in electrical panels and distribution rooms, tracking conditions in elevator cabins, or supervising warehouse and logistics center environments. The sensor also finds use in automation and predictive maintenance within industrial settings.
Integrated Design
All measurement functions are integrated within a compact body, allowing for efficient and rapid device deployment.
Configurable Thresholds and Alarms
Users can set thresholds and types of alarms according to their needs, ensuring timely risk detection and effective incident prevention.
Flexible Data Collection and Transmission
The device supports various data collection and transmission modes that can be tailored to specific application requirements.
Support for Standard Industrial Protocols
Compatibility with the Modbus protocol and RS-485 interface allows for easy integration into PLC, SCADA, or HMI systems.
Easy Installation and Maintenance
The sensor can be installed without interfering with the monitored equipment, significantly simplifying both installation and subsequent maintenance.
The S6000U-P offers a cost-effective and universal monitoring solution for industrial applications. Due to its easy integration, flexibility, and robust design, it is an ideal choice for system integrators and end users who need reliable real-time monitoring of multiple environmental parameters.
Specifications:
- Operating temperature: -20 °C to +70 °C
- Protection degree: IP31
- Input voltage: 9-24 V DC
- Relative humidity: 5 ~ 95% RH
- Environmental: RoHS2.0, WEEE
- Dimensions: 21.5 × 37 × 76 mm
- Weight: 30.5 g

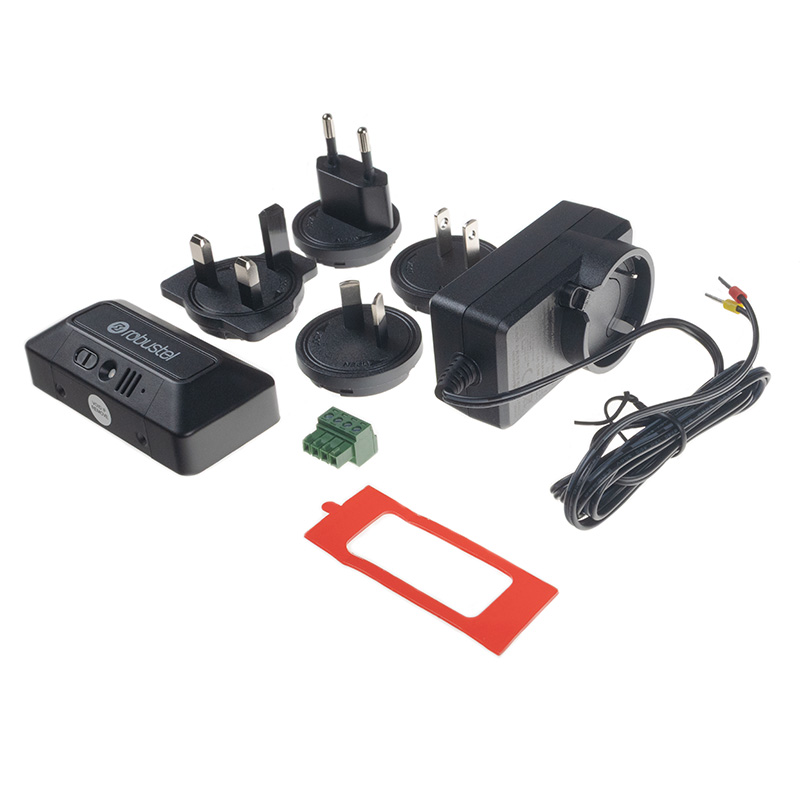

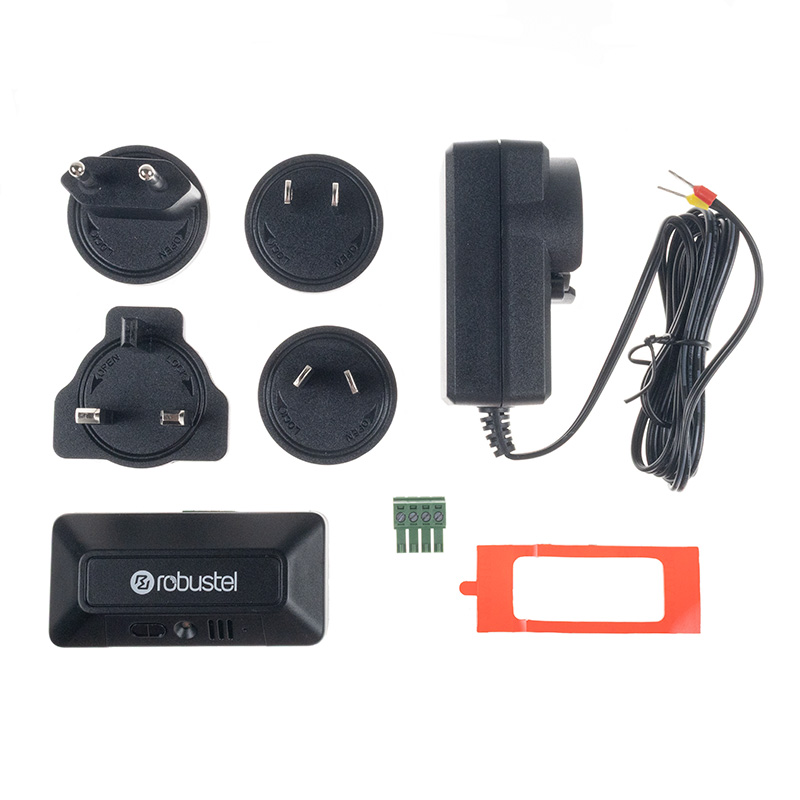

Package contents:
- 1 × S6000U sensor
- 1 × 3M tape
- 1 × 4-pin terminal block
- Power adapter 12 W
Technical parameters can be found in the attached datasheet.
