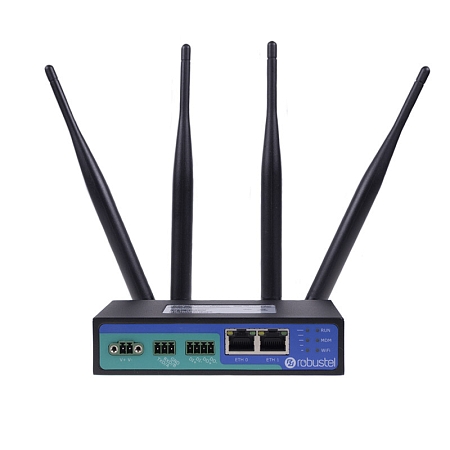

Robustel Cellular LTE router R2010-A-4L-A12EU
The Robustel R2010-A-4L is a high-performance LTE Cat.4 industrial router that is equipped with Ethernet and Wi-Fi interfaces, enabling the connection of multiple devices in the network. It offers dual standby with two SIM cards and a number of advanced features. It provides reliable connectivity in IoT and M2M, automation and other wireless applications.
It also includes VPN technology, network security using a firewall and supports a number of security protocols such as GRE, IPsec, Wireguard and OpenVPN.
It uses a Linux-based RobustOS operating system designed for use with Robustel devices. It provides a wide range of network configuration, management and monitoring capabilities, including support for security protocols and the ability to adapt the router to the needs of a specific application.
Thanks to its robust industrial design and resistance to water and dust (IP30), the R2010 router is ideal for use in industrial applications and demanding environments.
Version R2010-A-4L-A1EU is intended for EMEA (Europe, Middle East and Africa).
Key Features:
• Dual-SIM redundancy for continuous cellular network connections
• 4G: LTE FDD: B1/B3/B7/B8/B20/B28 LTE TDD: B38/B40/B41
• 3G: WCDMA: B1/B8
• 2G: GSM: B3/B8
• Link Manager supports Cellular WAN, Ethernet WAN, WLAN WAN link backup and ICMP detection
• WAN – Static/DHCP Client
• RobustOS + SDK + Apps
• IPsec/OpenVPN/GRE/Wireguard VPN capabilities
• Management and maintenance via Web/RCMS Cloud
• Auto reboot via SMS/time schedule
• Dimensions: 127 x 82 x 30 mm
• Robust industrial design (9 to 36 V DC, desktop or wall mounting or DIN rail mounting)
Recommended applications:
• ATM, vending machines
• Oil and gas industry, WiFi at gas stations
• Branches of companies
• Wi-Fi in public transport
• Fast food restaurant
• Digital scoreboards
Package included:
• 2x WiFi antenna
• 2x LTE antenna
• 1x terminal block 2-pin
• 1x terminal block 3-pin
• 1x terminal block 4-pin
Ethernet cable and power supply are not included.
SECTRON recommends to buy the following accessories:
AM-RT-ETH150-CAT5E - Ethernet cable CAT5e, RJ45/RJ45, Grey, 1.5m
AM-RT-FPOWR - Power supply 12V / 1A, L=1.4m, w/o connector, open end
Product video
The product video will provide you with information about the features of the Robustel R2010 router and present specific examples of use.
More information can be found in the attached datasheet.
