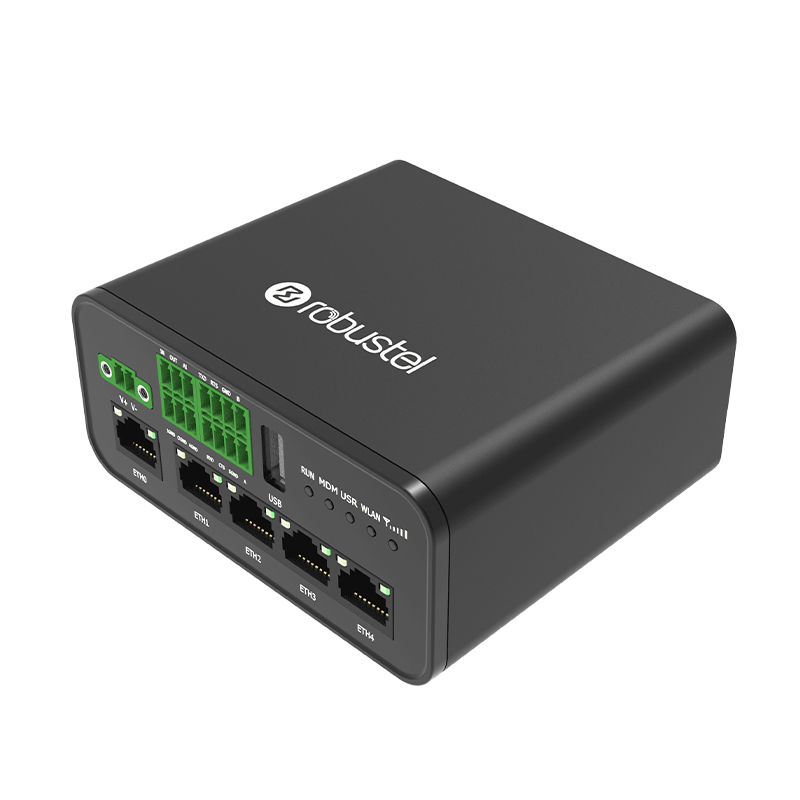

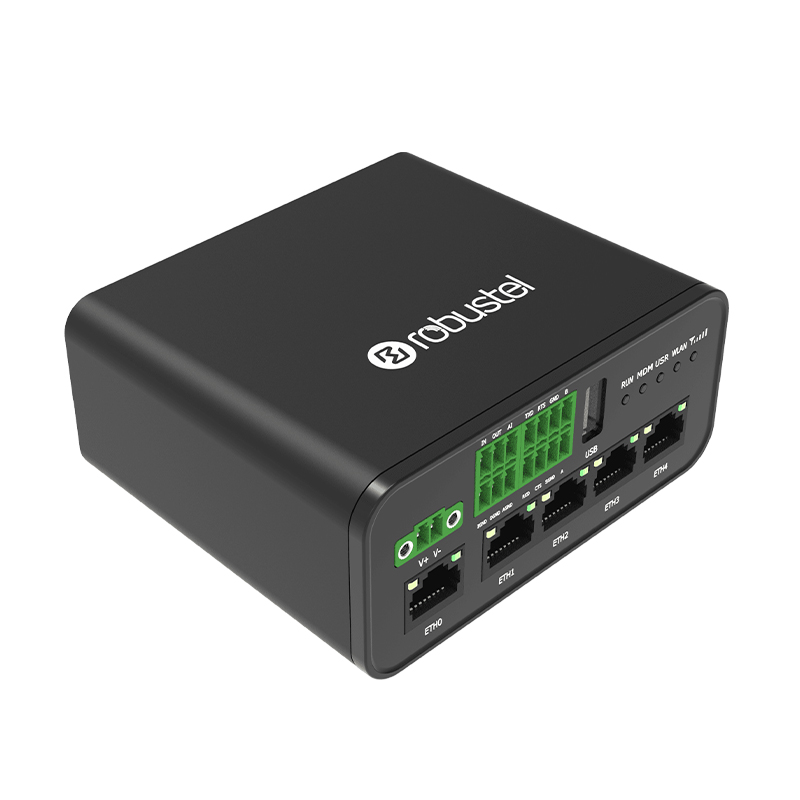

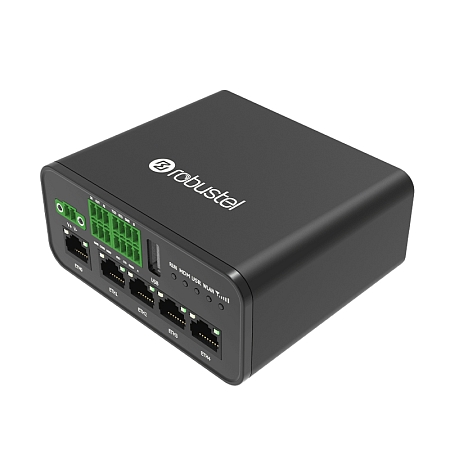

Industrial LTE Router Robustel R1520 Global with Wi-Fi, Five Ethernet Ports and Dual SIM
Robustel R1520 is a powerful industrial LTE router designed for IoT applications that require maximum reliability and flexibility of connectivity. In a compact but durable design, it combines superior connectivity, support for global LTE bands and advanced security. With a wide range of certifications (including FCC/PTCRB, CE, RCM, ICASA, TDRA and more), this model is an ideal choice for projects with global deployment.
Featuring five Ethernet ports, a robust design, and a wide 9-36V DC input power range, the R1520 router is easy to integrate into distribution cabinets, kiosks, and remote industrial sites.
Integrated Interfaces for Industrial Integration
- Serial Interfaces: Support for both RS-232 and RS-485 for communication with machinery and meters.
- Inputs and Outputs: Digital I/O (DI/DO) and an analog input enable direct monitoring and control of external elements.
R1520 Application Examples
- Real-time air monitoring: Supports continuous remote monitoring and helps reduce dependency on frequent manual inspections and site visits.
- Retail IoT applications: Provides highly secure and fully redundant connectivity for ATMs that require 100% availability. Dual SIM failover ensures continuous operation even if one of the operators is down. The rugged industrial design guarantees reliability even in outdoor ATMs, while the RCMS platform enables secure remote supervision and management of the entire system.
Fotogalerie: 'Příklady použití Robustel R1520-S'
Maximum Port and Connectivity Flexibility

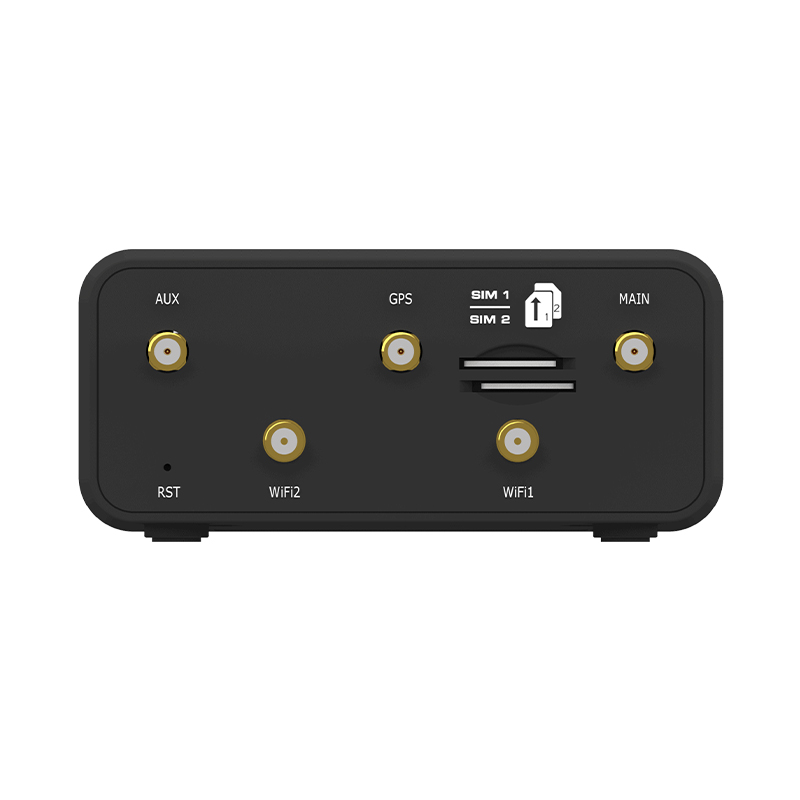

The R1520 stands out with five Ethernet ports (configurable as 1× WAN + 4× LAN or 5× LAN), allowing multiple devices to be connected directly to the router without an external switch. To ensure continuous operation, the router features a dual SIM slot, failover functionality, and backup options via Wi-Fi or Ethernet WAN.
Security and Remote Management
Data security is ensured by a wide range of encrypted VPN tunnels (IPsec, OpenVPN, GRE, WireGuard, or DMVPN). For efficient operation of large-scale networks, the router is fully integrated into the Robustel Cloud Manager Service platform (RCMS), which is used for bulk configuration, monitoring, and firmware updates for the entire fleet of devices. The unique RobustVPN service also allows for a fixed IP address on any SIM card.
RobustOS Operating System
The router utilizes the Linux-based RobustOS operating system, designed for maximum reliability in IoT applications.
You can read an article about our Robustel R1520 on our blog.
Quick Pitch video
Key Features:
- Global LTE Connectivity

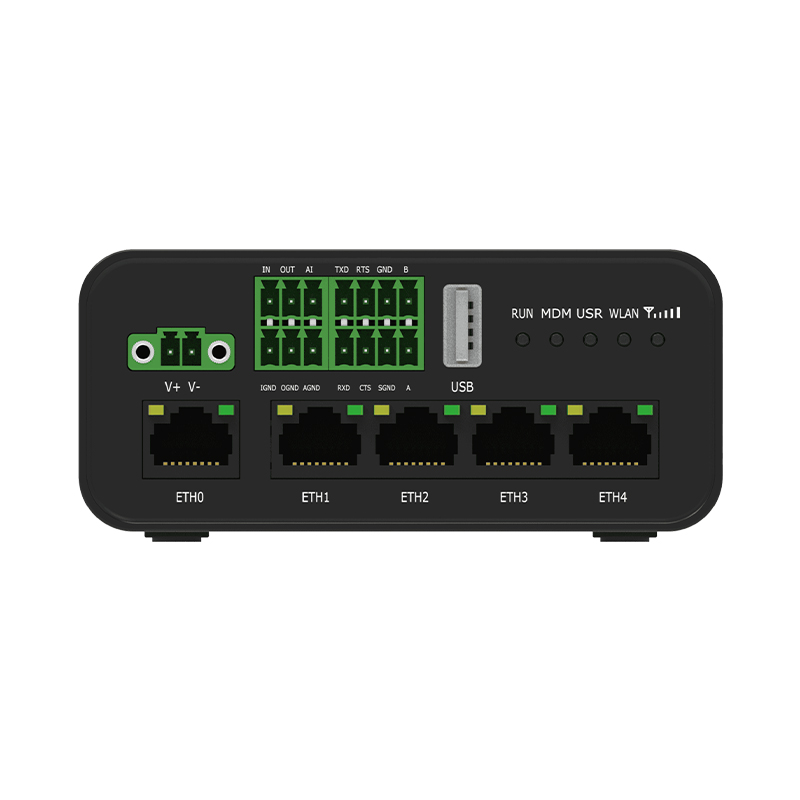

- Interfaces: 5× Ethernet (1× WAN + 4× LAN), RS-232, RS-485, DI/DO, and analogue input
- High Durability: Industrial design with Dual SIM support for maximum redundancy
- Wi-Fi: 802.11 b/g/n standard
- Management: Full support for RCMS and RobustVPN cloud services
- Dimensions: 46 × 90 × 105 mm
Package Contents:
- Robustel R1520 Router
Note: Ethernet cable, antennas, and power supply are not included in the basic package.
SECTRON recommends the following accessories:
- AM-RT-ETH150-CAT5E – Ethernet cable CAT5e, RJ45/RJ45, grey, 1.5 m
- AM-RT-FPOWR – Power supply 12 V / 1 A, length 1.4 m, without connector, open end
More information can be found in the attached datasheet.
Industrial LTE Router Robustel R1520 Global with Wi-Fi, Five Ethernet Ports and Dual SIM
Robustel R1520 is a powerful industrial LTE router designed for IoT applications that require maximum reliability and flexibility of connectivity. In a compact but durable design, it combines superior connectivity, support for global LTE bands and advanced security. With a wide range of certifications (including FCC/PTCRB, CE, RCM, ICASA, TDRA and more), this model is an ideal choice for projects with global deployment.
Featuring five Ethernet ports, a robust design, and a wide 9-36V DC input power range, the R1520 router is easy to integrate into distribution cabinets, kiosks, and remote industrial sites.
Integrated Interfaces for Industrial Integration
- Serial Interfaces: Support for both RS-232 and RS-485 for communication with machinery and meters.
- Inputs and Outputs: Digital I/O (DI/DO) and an analog input enable direct monitoring and control of external elements.
R1520 Application Examples
- In-vehicle connectivity: Provides secure LTE backhaul and onboard Wi-Fi for passengers. The system allows for consistent separation of service technology operations from the public network (network segmentation). The integrated GNSS module supports real-time location tracking, while the RCMS platform provides central oversight and bulk updates of the entire fleet.
- Intelligent Transport Systems (ITS): Provides secure data transmission from control units and information boards to the platform through encrypted VPN tunnels. Hardware redundancy in the form of Dual SIM ensures maximum service availability even in the event of an operator outage. All parameters and configurations can be managed remotely, eliminating the need for physical visits to the devices.
- Digital signage and advertising panels: Provides a reliable IP interface for media players to your CMS. The router ensures smooth distribution of new content even in the event of primary network outages and enables centralized monitoring or effective remote troubleshooting.
Fotogalerie: 'Příklady použití routeru Robustel R1520'
Maximum Port and Connectivity Flexibility
The R1520 stands out with five Ethernet ports (configurable as 1× WAN + 4× LAN or 5× LAN), allowing multiple devices to be connected directly to the router without an external switch. To ensure continuous operation, the router features a dual SIM slot, failover functionality, and backup options via Wi-Fi or Ethernet WAN.
Security and Remote Management
Data security is ensured by a wide range of encrypted VPN tunnels (IPsec, OpenVPN, GRE, WireGuard, or DMVPN). For efficient operation of large-scale networks, the router is fully integrated into the Robustel Cloud Manager Service platform (RCMS), which is used for bulk configuration, monitoring, and firmware updates for the entire fleet of devices. The unique RobustVPN service also allows for a fixed IP address on any SIM card.
RobustOS Operating System
The router utilizes the Linux-based RobustOS operating system, designed for maximum reliability in IoT applications.
You can read an article about our Robustel R1520 on our blog.
