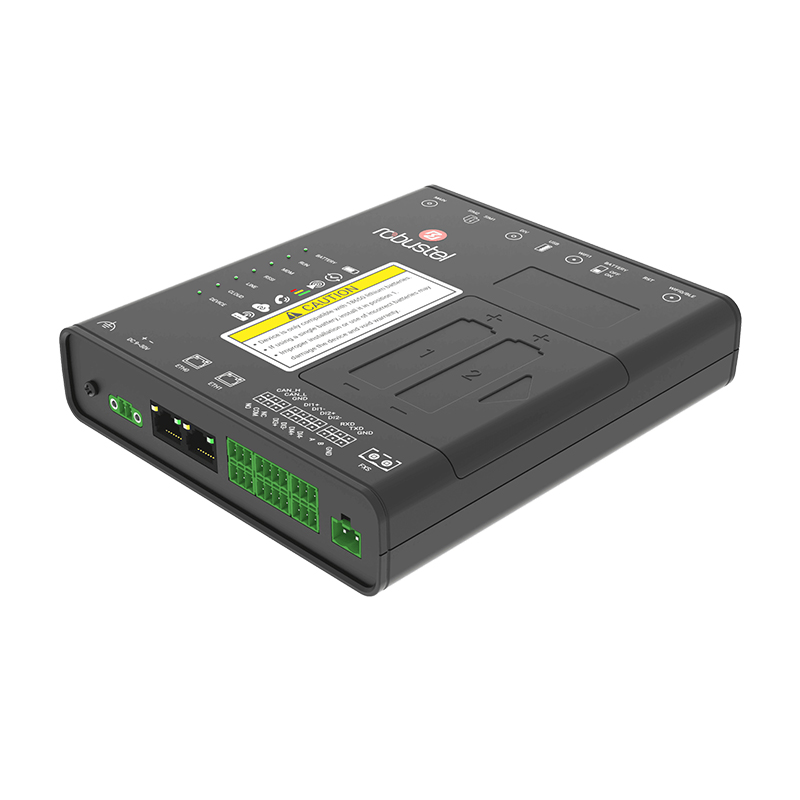

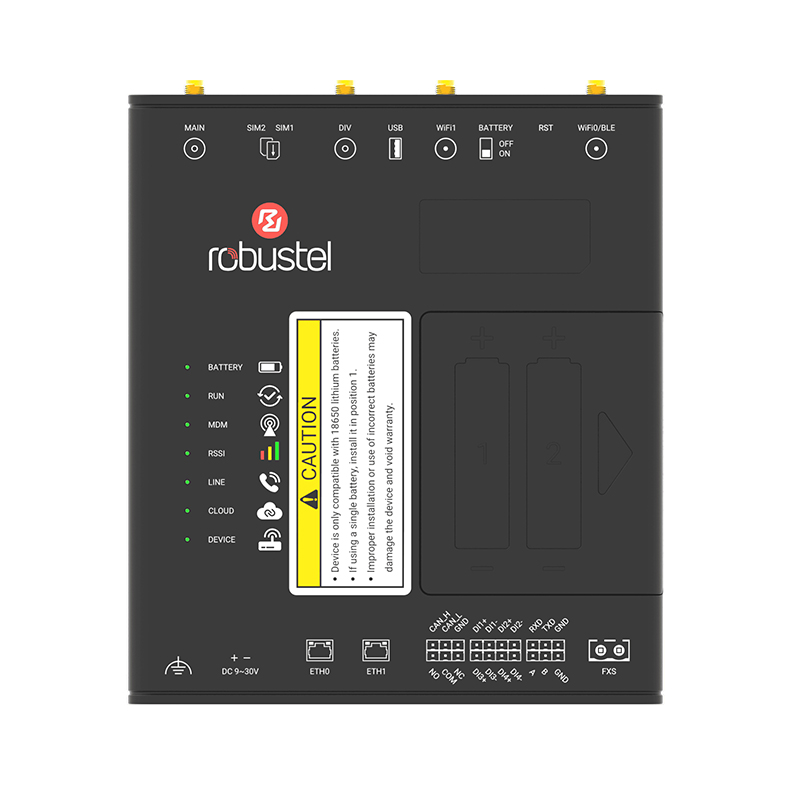

Robustel EV8100: Industrial VoIP/VoLTE 4G Gateway
The Robustel EV8100 is an industrial-grade gateway specifically designed for elevator systems. It integrates multiple devices into one, including a cellular router with Wi-Fi support and a two-way voice communicator with VoIP and VoLTE capabilities. The EV8100-B-A12 model offers expanded interfaces and enables remote monitoring and management of elevator communication systems, facilitating rapid and efficient resolution of any issues or faults. This model is intended for use in Europe.
Wide Connectivity and FXS Interface Support
With its RS232, RS485, and CAN bus interfaces, the gateway enables seamless communication between the cellular network and the elevator intercom system. It supports Wi-Fi 802.11a/b/g/n/ac, Bluetooth 5.2, and Docker software, which automates the deployment of applications into so-called containers.
Thanks to the FXS interface for plug-and-play connection of analogue devices and Dual-SIM support with failover, the EV8100 serves as a full replacement for analogue lines when landline access is unavailable or being decommissioned.
Typical Use Cases

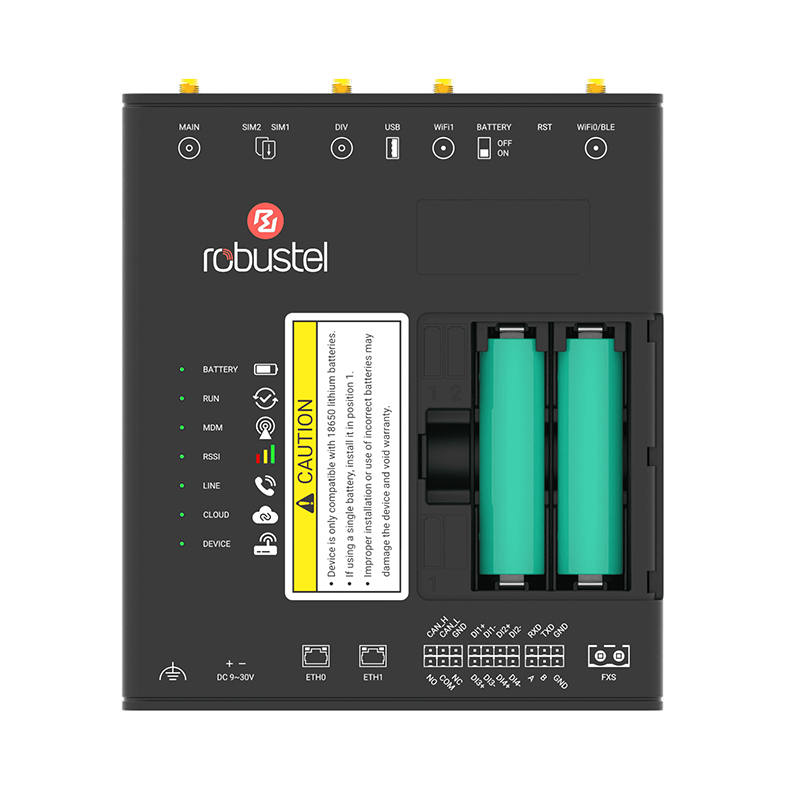

With its advanced features and robust design, the EV8100 4G VoIP/VoLTE voice gateway is a reliable and essential safety solution for any modern building. In the event of a power outage, the integrated battery serves as a backup power source for up to 2 hours.
- Elevators: The EV8100 enables reliable voice calls in compliance with EN 81-28 and AS1735 standards.
- IoT for Elevators: The EV8100 provides secure IoT connectivity for mobile-based elevator monitoring. It supports remote diagnostics, alarms, and data telemetry alongside voice, all in one compact gateway.
- PSTN/POTS Replacement: The EV8100 replaces legacy PSTN/POTS lines with 4G VoIP technologies in critical infrastructure – ideal for intercoms, alarms, kiosks, and remote voice systems in utilities, transport, and buildings.
Fotogalerie: 'Robustel EV8100 příklady použití'
Operating System
The device runs on the RobustOS Pro operating system, based on the Debian 11 Linux distribution. This platform ensures full support for containerization via Docker, providing easy deployment of custom containerised applications.
Industrial Network Security
The EV8100 is engineered for operation in extreme conditions. It ensures secure connectivity with various VPN options, including IPsec and OpenVPN. The Smart Roaming feature guarantees an uninterrupted connection when moving between carrier cells, which is crucial for mobile applications.
Centralised Management with RCMS
For maximum operational efficiency, the EV8100 gateway is fully integrated into the Robustel Cloud Manager Service (RCMS) cloud platform. This service enables remote management, monitoring, and diagnostics of network devices, thereby minimising operational costs.
You can read more about the Robustel EV8100-B elevator communicator here.
Key Features:
- Support for VoIP and VoLTE
- Integrated backup battery, compliant with EN 81-28 and AS1735
- Highly stable 4G/3G/2G mobile connectivity with global band coverage

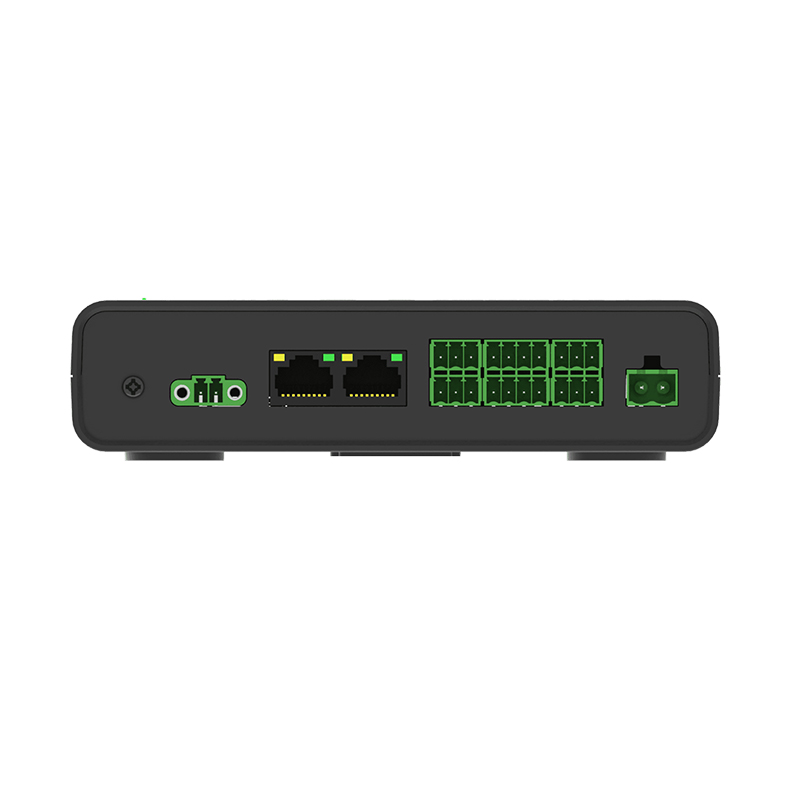

- Interfaces: 1× FXS, 1× RS232, 1× RS485 + 1× CAN for connection to industrial devices
- 2× RJ45 Ethernet ports (10/100 Mbps)
- 4× DI, 1× relay for simple monitoring and control
- Dual SIM slots for redundant communication
- Wi-Fi 802.11a/b/g/n/ac support, with AP and Client modes
- Bluetooth 5.2 support
- Docker software support
- Support for C, C++, Java, Python, Node.js, etc.
- Wireguard / IPsec / OpenVPN / GRE / L2TP / PPTP / DMVPN + other VPN options
- Robustel RCMS platform support for efficient management of large device fleets
Package Contents:
- Robustel EV8100 Gateway

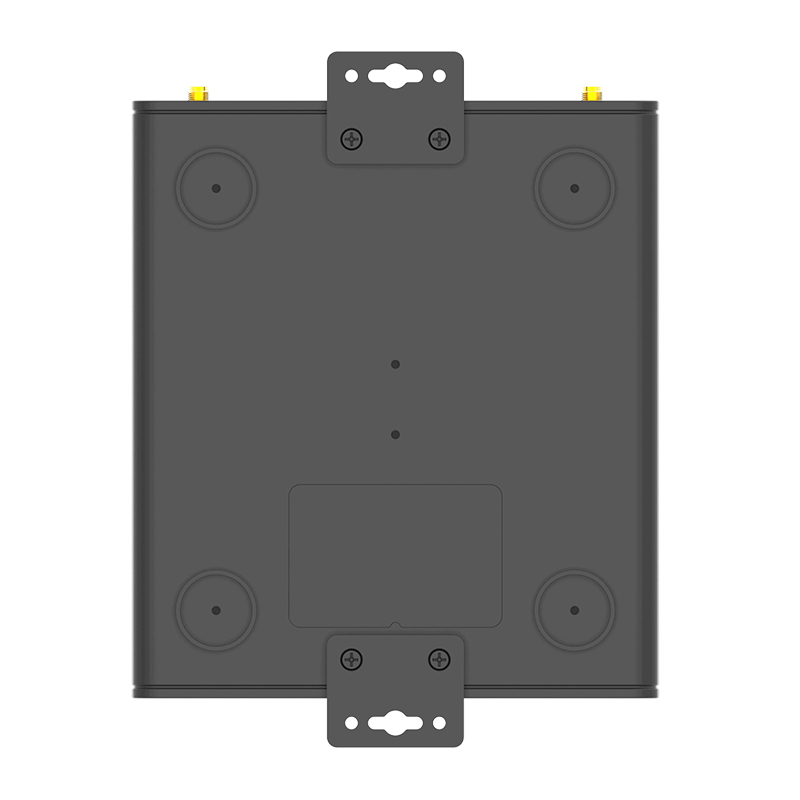

- Mounting bracket
More information can be found in the attached datasheet.
