Multi-Purpose Industrial 5G Router Robustel R5030
The Robustel R5030 is a cutting-edge, fully featured industrial 5G router designed for deployment in demanding environments where the combination of two or more different types of communication technologies is essential to ensure stable and flexible connectivity.
Network Interface and Power Supply
The Robustel R5030 combines high-speed 5G connectivity with global band support (5G/4G/3G, 3GPP V15/16) and dual SIM for reliable failover. This robust connectivity is complemented by advanced dual-band Wi-Fi 6 (with AP and Client modes), offering higher capacity and speed for local connections, ideal for densely populated user environments. Further advantages include GNSS positioning and Digital Inputs/Outputs (DI/DO).
Equipment and Data Security

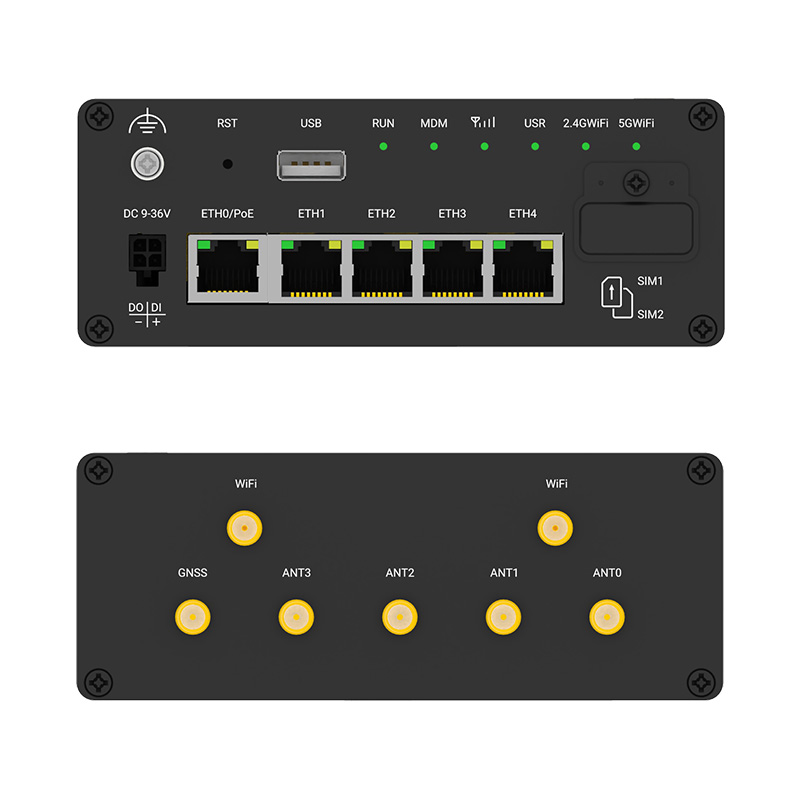

The router is equipped with five Gigabit ports (configurable as WAN/LAN) with PoE-PD support on ETH0, allowing flexible connection and power supply for devices without the need for additional electrical outlets. For transportation and logistics applications, the integrated GNSS system is key, providing accurate location and tracking services. Data security is ensured by features such as IPsec and DMVPN, guaranteeing safe and reliable operation of data networks.
Design and Installation

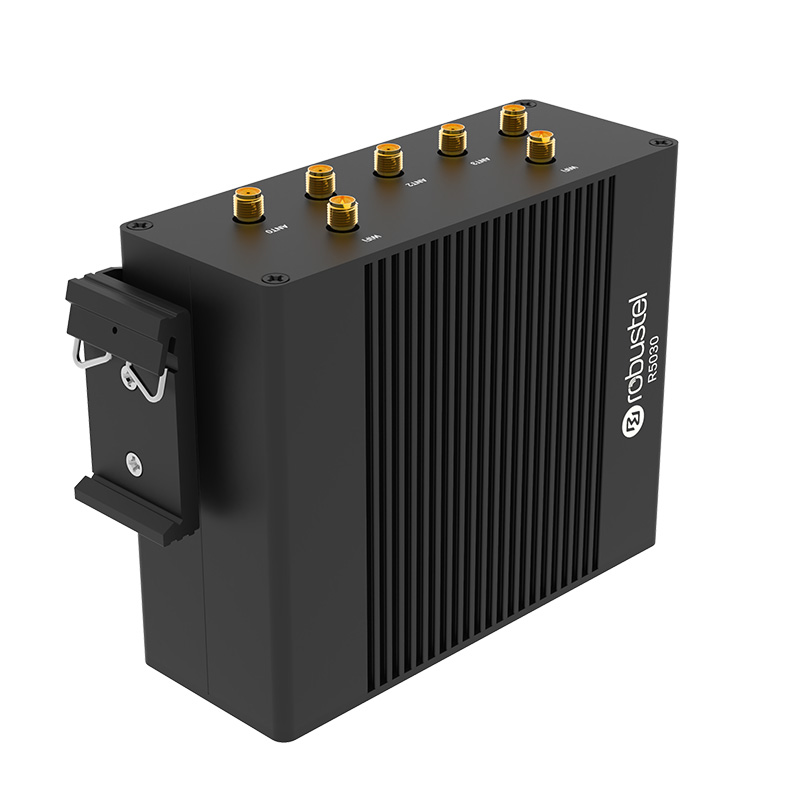

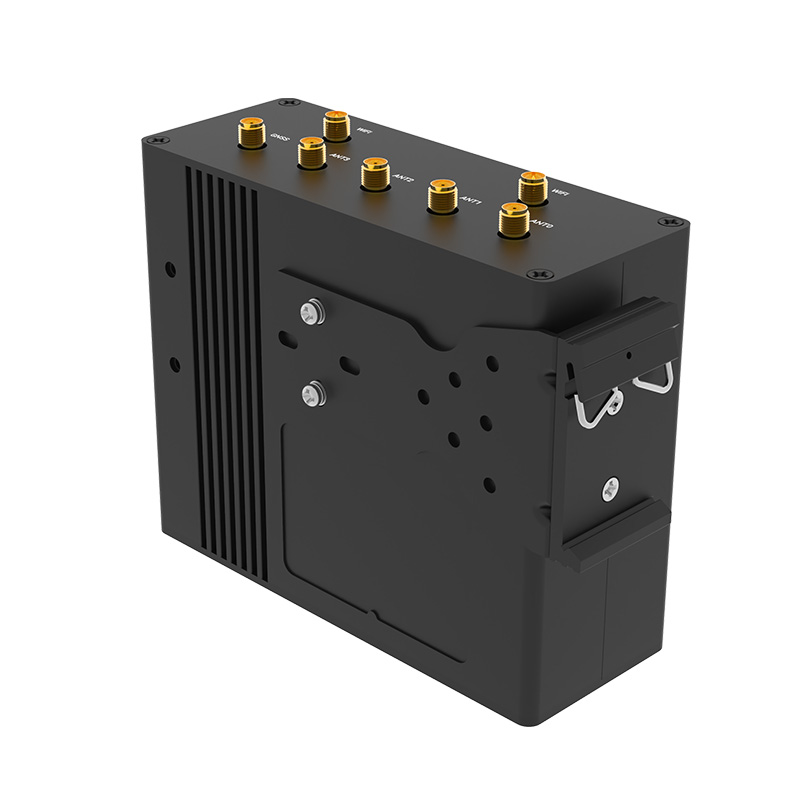

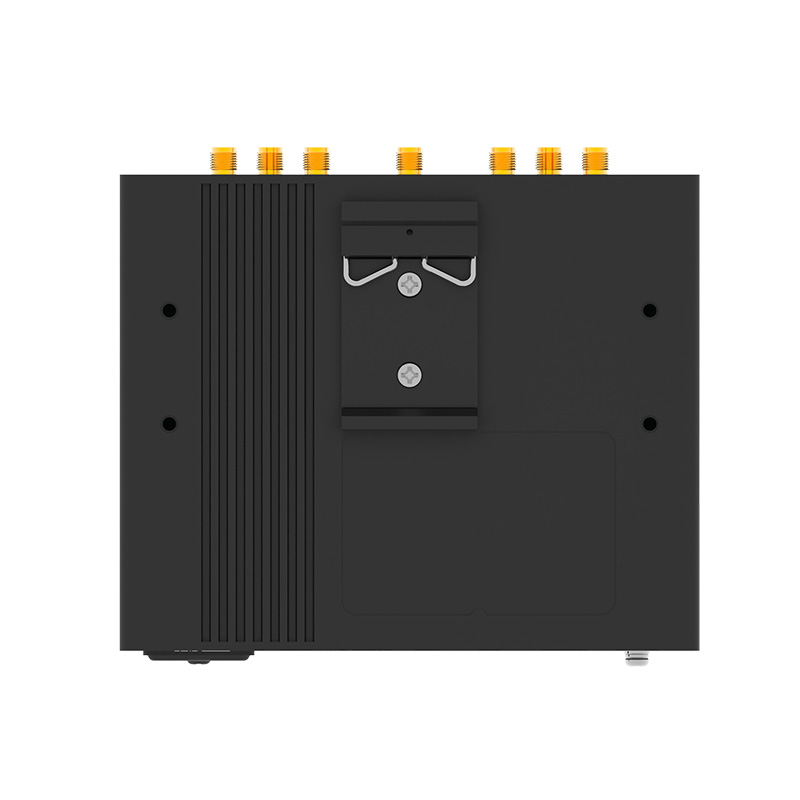

The entire device is housed in a compact metal enclosure with flexible mounting options for DIN rail or wall installation, facilitating robust and easy deployment in cabinets and vehicles.
Application Examples
The Robustel R5030 is an industrial router that achieves excellent results in a wide range of applications thanks to the integration of Wi-Fi 6, GNSS, and DI/DO:
- In-Vehicle Wi-Fi (Passenger Wi-Fi): Buses, trains, and fleets requiring passenger internet with captive portal capabilities.
- Branch Office and Corporate WAN Network: 5G as a primary connection or as a backup to wired broadband with automatic failover switching.
- Smart Transportation and Logistics: Real-time vehicle telemetry and tracking using integrated GNSS.
- Public Infrastructure: Kiosks, ticketing systems, signage, and public Wi-Fi access with a secured captive portal.
- Industrial IoT: Smart sensors, gateways, and SCADA/PLC systems requiring both wired and wireless connectivity.
Cloud Service (RCMS)
Operation and management are simplified using the RCMS (Robustel Cloud Manager Service). This cloud service enables centralized monitoring, configuration, data collection, and remote updates of a large number of devices, thereby minimizing operating overhead. A three-month free trial version of the RCMS service is included.
Key Features:
- CPU/OS: Dual-core ARM Cortex A53, RobustOS
- Ethernet: 5 × Gigabit ports, PoE-PD support on ETH0
- Wi-Fi: Dual-band Wi-Fi 6 (802.11ax)
- GNSS: GPS, Galileo, GLONASS, QZSS, BDS
- I/O: 1 × DI, 1 × DO
- USB: 1 × USB 2.0 host port
- Power: 9-36 V DC; PoE-PD 42.5-57 V
- Dimensions: 49 × 105 × 128 mm
- Weight: 581 g
- Casing: Metal enclosure with IP30 rating
- Operating Temp.: –25 °C to +70 °C
- Security/VPN: IPsec, OpenVPN, WireGuard, GRE, DMVPN
- Management: WebUI, CLI, SMS, RCMS cloud
Package Includes:
- 1 x R5030 Router
- 1 x Wall-mounting kit
- 1 x Power plug adapter
More information can be found in the attached datasheet.
