Protempis Bullet 360T, GNSS Active Antenna, connector TNC
Protempis Bullet 360T - durable and powerful GNSS antenna (GPS/Galileo/Beidou/GLONASS) with a TNC connector, operates in the band 1575.42 - 1602 MHz and in combination with an integrated amplifier reaches a total gain of 30 dBi. Thanks to the degree of protection IP67, this active antenna is waterproof, resistant to corrosion, excessive vibrations, weather and shocks, and has a wide operating temperature range (−40 ° C to +90 ° C). It is ideal for use in city environments.
The TNC antenna connector is located inside the threaded socket, which allows the antenna cable to be routed inside the mounting rod and protects the cable connection. The Protempis Bullet 360T antenna is RoHS II compliant.
Specifications connector TNC:
TNC coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 11 GHz. TNC connectors are used, for example, to connect wireless WLAN devices, test equipment and GSM/GPS/Wi-Fi antennas.

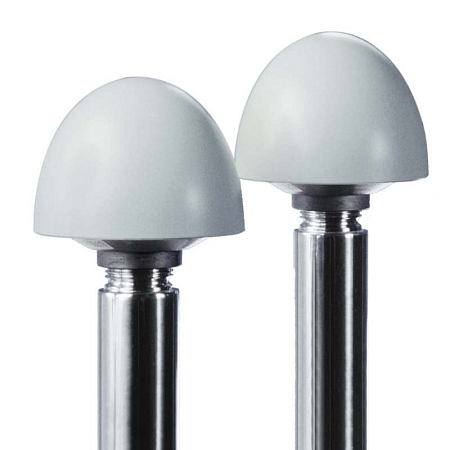

Note: The mounting rod in the photo is not part of the package.
