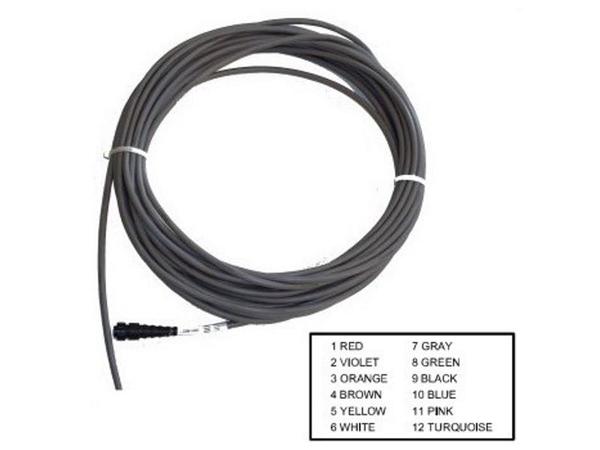

Protempis Acutime 50' - connection cable for Acutime GNSS antennas
Protempis Acutime 50' is a 15-meter interconnect cable for Acutime GNSS antennas. It connects the antenna to the control unit in time synchronization systems and supports a supply voltage of +12 VDC to +24 VDC, making it suitable especially for static timing applications.
The cable meets the standards for use with Trimble/Protempis timing antennas, designed for RS-422 interface connections and data signal transmission. It features high resistance to moisture (IP67), vibration, and extreme temperatures. The original cable ensures guaranteed compatibility and maximum reliability in demanding environments.
Key Features:
- 15 m (50 ft) length, for GNSS timing antennas and control units
- Waterproof 12-pin circular connector
- Resistant to moisture, vibration, and temperature extremes (IP67)
- Compatible with Trimble/Protempis Acutime 360
- Suitable for RS-422 serial communication
- Acutime 360 interconnect cables are available in standard lengths of 15 m, 30 m, 60 m, and 120 m
Available variants on request:
- Order code 60149 = 100' cable (30 m)
- Order code 60152 = 200' cable (60 m)
- Order code 60153 = 400' cable (120 m)
