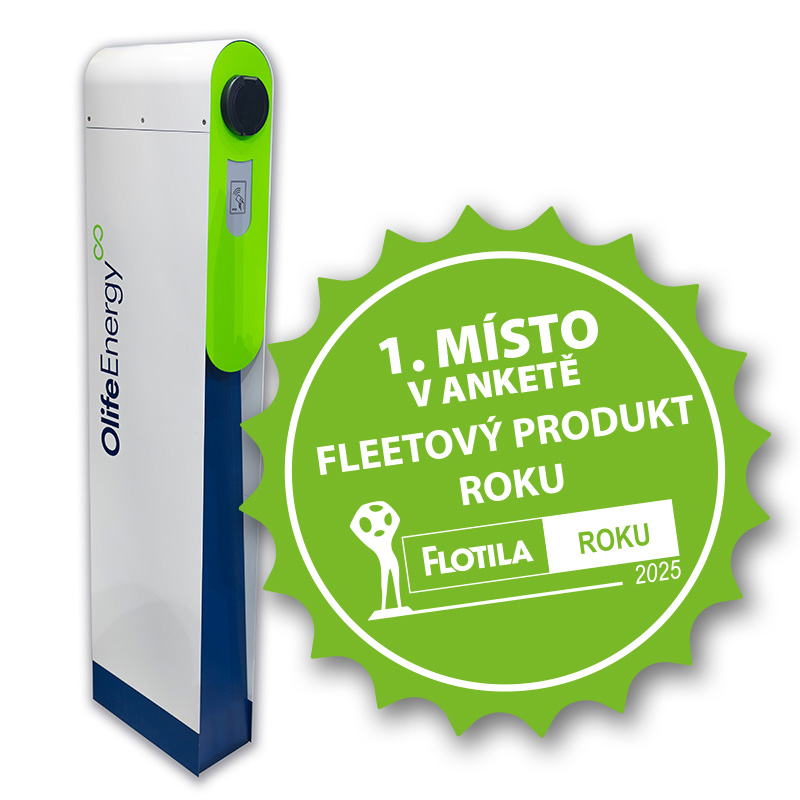

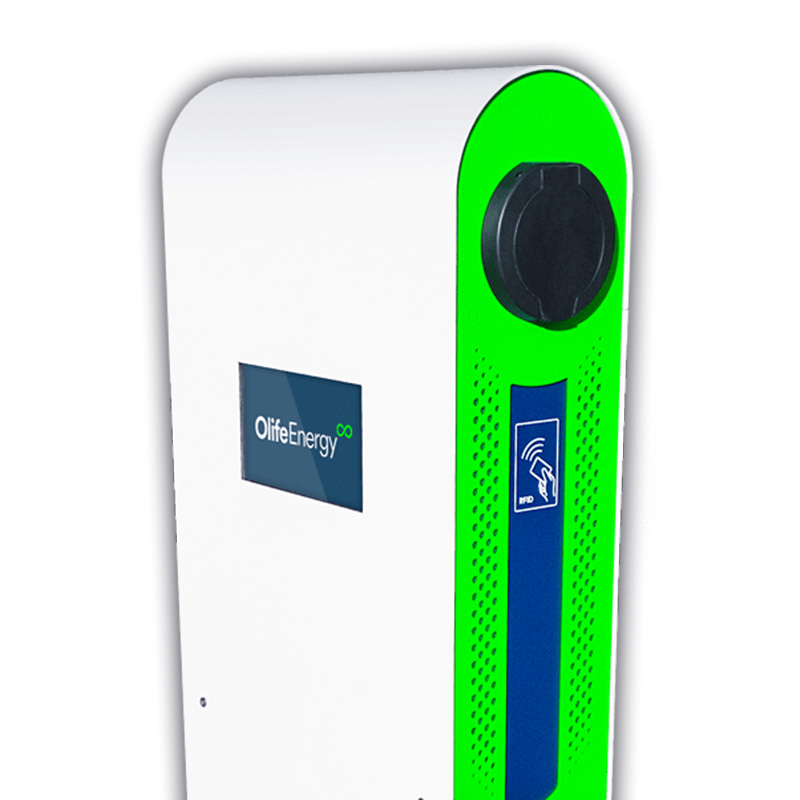

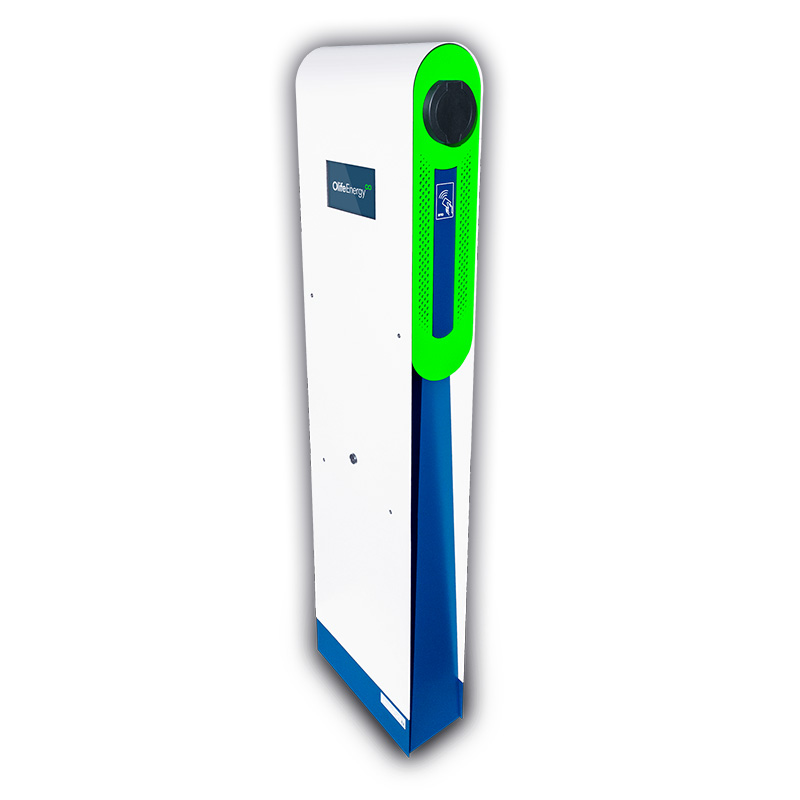

Floor-standing charging station Olife Energy AC LITE - SMART with two straight Type 2 cables and display
Key features of the AC charging station:
• Czech-made product
• Configuration via mobile app (local Bluetooth)
• Dynamic power management using the SmartMeter unit
• OlifeEnergy AC Cloud services (remote monitoring, management, control, and billing of charging stations)
• Overcurrent protection
• Smart home integration
• Charging at low tariff rates
• RFID authorization
• Control and configuration via ModBus RTU (RS 485)
• Static output current setting (according to upstream circuit breaker)
• External current control (ModBus RTU / ADC 0–10 V)
• OlifeEnergy Cloud, OCPP
• Optional certified meter (2014/32/EU MID) measurement
• Ideal for use in corporate or public parking lots
This all-metal AC charging station is a robust Czech-made product with the same advanced features as the OlifeEnergy DoubleBox SMART. It is designed as a standalone station that can be anchored into the ground. With an IP54 rating, it is durable and suitable for outdoor use. The all-metal construction provides maximum resistance to weather conditions and vandalism. It is ideal for public and corporate parking lots where high durability and reliability are required. Its design allows for easy installation and maintenance, while advanced functions ensure efficient and safe charging of electric vehicles.
Performance and charging options
The pedestal station Olife Energy AC LITE SMART is designed for charging all types of electric vehicles on the EU market with alternating current. It can charge two electric vehicles simultaneously, each with a charging power of up to 22 kW. To shorten the charging time, the station can divide the power input between the two charging vehicles according to their needs.
Equipment of the charging station
The station is equipped with a 7' color touch display that clearly displays current charging status and allows intuitive control of all station functions. Thanks to integrated protection against electrical overload, safety and reliability of the charging infrastructure are ensured.
The AC LITE SMART Olife Energy station is fitted with two Type 2 sockets and two Type 2 charging cables.
The station can be optionally equipped with a payment terminal, supporting fast and secure contactless payments by card and mobile devices.
Intelligent management and extended functions
The charging station features advanced connectivity for OlifeEnergy Cloud and OCPP server. OlifeEnergy Cloud service offers remote diagnostics, access control, and charging data records. This service is subject to a fee.
The AC LITE - SMART station offers extended functionality, including remote communication via Ethernet, WiFi, or GSM, charging monitoring, station diagnostics, as well as control via RFID chips and OlifeEnergy mobile app. The cloud server allows user authentication and management, diagnostics, and priority performance management. OlifeEnergy Cloud enables dynamic performance management for multiple stations and easy integration with existing MaR building control systems.
Specification of LITE SMART charging station:
• Output type: 2 x Type 2
• Output power: 0–44 kW
• Control: local – automated switching or RFID chip, remote – OlifeEnergy Cloud, OCPP
• Overcurrent protection: 2 x 3-pole circuit breaker 32 A
• Residual protection: 2 x 4-pole Type A protector with DC current detection per IEC 62955
• Max. input current: 0–63 A
• Input voltage: 3 x 400 V
• Communication: Bluetooth, Modbus RTU, ADC 0–10 V, TCP/IP
• Data connection: Ethernet, Wi-Fi, GSM
• IP rating: IP54
• Operating temperature: -25 °C to 40 °C
• Operating humidity: 5% to 95%
• Weight: 69 kg
• Dimensions: 737 x 1350 x 145 mm
The charging station functionality can be expanded upon customer request with the following hardware components:
Charging Management
The total power input of the station can be dynamically regulated using the external OlifeEnergy SmartMeter. This device optimizes the use of the electrical connection capacity by measuring the current energy consumption of the entire building before the main circuit breaker at the building’s main switchboard. It evaluates the available power for the OlifeEnergy charging station, which then adjusts the charging current accordingly.
The input power cable must be protected by a Type A residual current device with a minimum rated current of 40 A.
Access Management (OlifeEnergy CLOUD)
OlifeEnergy Cloud is a platform for remote monitoring, management, control, and billing of electric vehicle charging stations. This service is available only for the SMART variant and includes several service packages that can be combined. The service comes with a monthly fee.
Access management offers easy administration of users through RFID chips or a mobile app. It also provides detailed records of each charging session (time, energy, and user), useful for cost allocation in housing cooperatives or company cost monitoring.
Remote Monitoring
Remote monitoring enables connection to the station, providing an overview of total energy delivered and station status, and allows the station to be publicly accessible within the OlifeEnergy Net network. It facilitates diagnostics and servicing. The service includes a SIM card with a flat rate for data connectivity.
Public Charging Mode
Through the billing service, your charging station can generate revenue from public electric vehicle charging. The station owner sets the charging price and thus the income. The station can be equipped with a physical payment terminal or an online payment gateway.
Power Management
This priority power management service allows connection of stations to a limited circuit breaker (or limited power on high voltage – for example, 5 stations with 22 kW power on a single 3×32 A breaker). Power is shared by stations based on utilization or set priorities. The power management module primarily prevents exceeding the agreed quarter-hour maximum power. Information about available power can be automatically received from the building’s MaR system. Overall, the module saves fixed payments by reducing main breaker values or reserved power and prevents penalty-incurring quarter-hour exceedances.
Technical parameters can be found in the attached datasheet.
