Numer katalogowy : AO-N-58-M-G
Producent: SECTRON

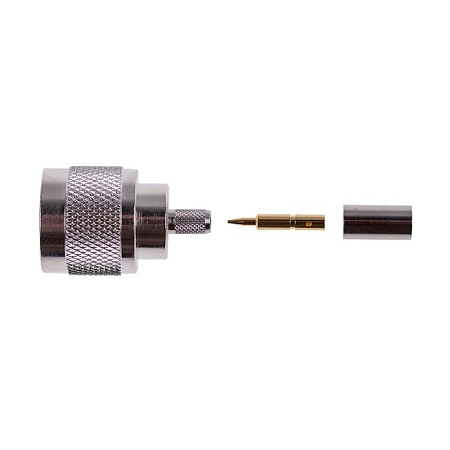

N Straight plug (male) RG58

Numer katalogowy : AO-N-58-M-G
Producent: SECTRON

N Straight plug (male) RG58

Cable crimp connector N (m) is designed for cable RG58 with a diameter of 4.95 mm.

14.52 PLN (3.35 €) z VAT (23%) / szt.

bez VAT 12.00 PLN / szt.

Cena od 10 sztuk 2.22 €

Cena od 100 sztuk 1.99 €

Zapytani
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Coaxial connector N (m) for cable RG58

Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. Temperature range is -65 °C to +165 °C. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Cable crimp connector N (m) is designed for cable RG58 with a diameter of 4.95 mm.

Parameters:

• Type: Male (m)
• Impedance: 50 Ω
• Insulation resistance: 5 000MΩ
• Center contact resistance: 1 mΩ
• Outer contact resistance: 1 mΩ
• Maximum frequency: 0-11 GHz
• Mating cycles: 500
• Operating temperature: - 65 °C to + 165 °C

Material and finish:

• Body: brass / nickel
• Gasket: silicone / red
• Insulator: teflon / white
• Center contact: brass / gold

Technical parameters can be found in the attached datasheet or contact our sales department.

Parametry

Kabel RG58 Wykonanie Kabel bezpośrednio

Inne informacje

Nazwa producenta SECTRON s.r.o.
Adres producenta Josefa Šavla 12, Ostrava - Mariánské Hory 709 00, Czech Republic
E-mail producenta sales@sectron.cz
Telefon przedstawiciela +420 556 621 020

14.52 PLN (3.35 €) z VAT (23%) / szt.

bez VAT 12.00 PLN / szt.
