Smart E-Bike Charging with MyBox eBike
E-bikes are experiencing a massive boom, and with it comes the growing need for reliable charging infrastructure. The MyBox eBike charging station represents an advanced and user-friendly solution for safe e-bike charging, making it ideal not only for hotels, but also for restaurants, guesthouses, apartment buildings, public offices, companies, and other public or semi-public spaces.
The MyBox eBike station allows up to four e-bikes to charge simultaneously, a feature appreciated by both casual riders and frequent e-bike users.
Safe and Universal E-Bike Charging – Anytime, Anywhere
Universal charging ports allow various e-bike models to be charged without the need to carry a personal charger. The station is equipped with four XLR charging ports (1× Bosch, 1× Shimano, 2× universal), ensuring compatibility with most common e-bike systems. Its robust design guarantees resistance against weather and potential vandalism. The operating temperature range is from -25 °C to +45 °C, ensuring reliable outdoor performance.
Easy to Use and Fast Charging
Operating the MyBox eBike station is simple – any cyclist can use it independently. Thanks to fast-charging technology, a battery’s capacity can increase by up to 40% in just one hour. An LED status indicator provides a clear view of each charging port's status. In addition to the XLR connectors, the station includes two 230 V sockets for charging other electronic devices. It is also ready for integration with photovoltaic systems, supporting sustainable operation and reducing energy costs.
Reliable, Stylish, and Sustainable

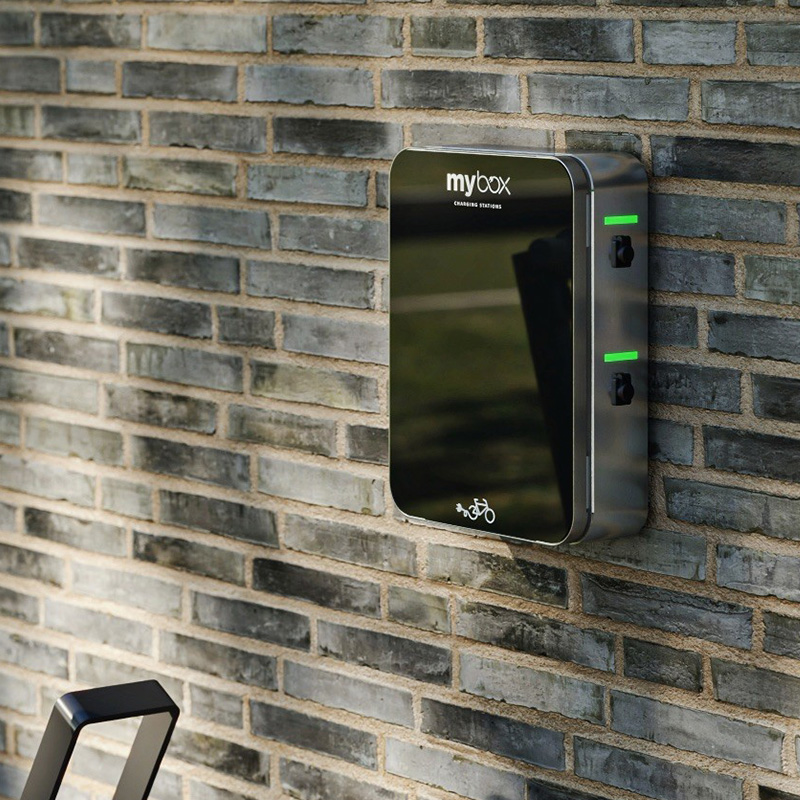

The MyBox eBike charging station stands out with its sleek design, high-quality materials, and rapid charging capabilities (42 V DC, 4 A). It can be easily installed on a wall, fence, or stand. The steel enclosure and tempered glass protect the internal components, while a lockable door ensures maximum safety. The front panel can be customized with your own branding or design.
A Smart Investment in Future Mobility
The MyBox eBike charger is a smart solution that combines functionality, safety, and contemporary design. Integrated protection elements such as B10–B6 circuit breakers and T 2.5 A fuses ensure safety for users, the charger, and the e-bikes.
Create a reliable e-bike charging hub and add real value to your business with MyBox eBike!
Key Features:
• Protection rating: IP54 / IK10
• Material: Zinc-coated & painted (RAL 7016)
• Status indication: LED indicators
• Operating temperature: -25 °C to +45 °C
• Dimensions (W × H × D): 330 × 450 × 116 mm
• Weight: 15 kg
• Power input: 230 V AC, EU plug or CYKY cable
• Output: 4× XLR-F connectors with locking mechanism, 42 V DC, 4 A
• Protection: Built-in circuit breaker (B10–B6) and fuses (T 2.5 A)
• Access security: Key-locked door
• Mounting: Wall, fence, or stand with three-point screw system
• Operating humidity: Outdoor-ready design with robust build
Technical parameters can be found in the attached datasheet.
